Powertrain Control Module Connector End Views

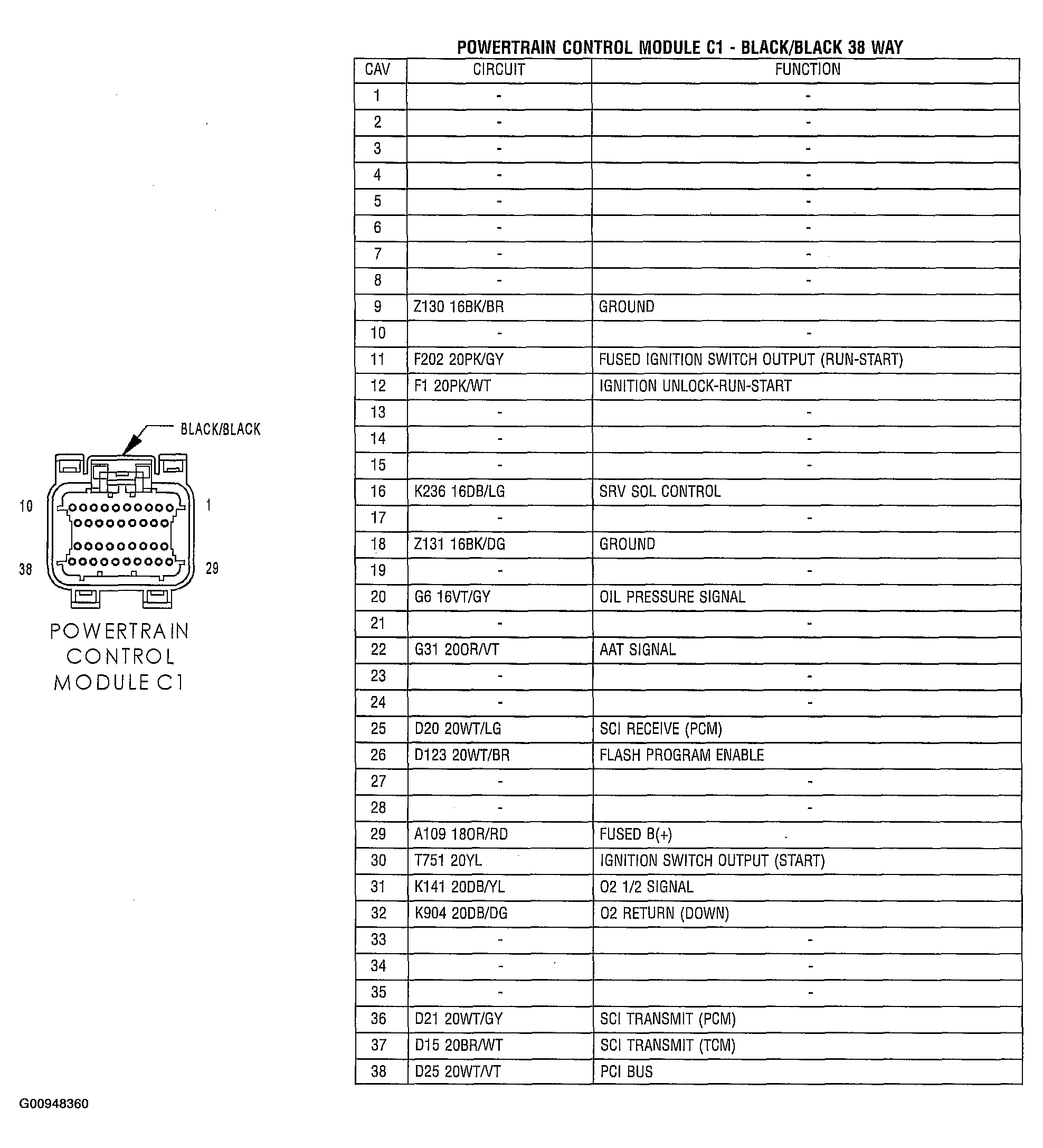

Fig 1: Identifying Powertrain Control Module C1 - Black/Black 38 Way Connector
G00948360Courtesy of DAIMLERCHRYSLER CORP.

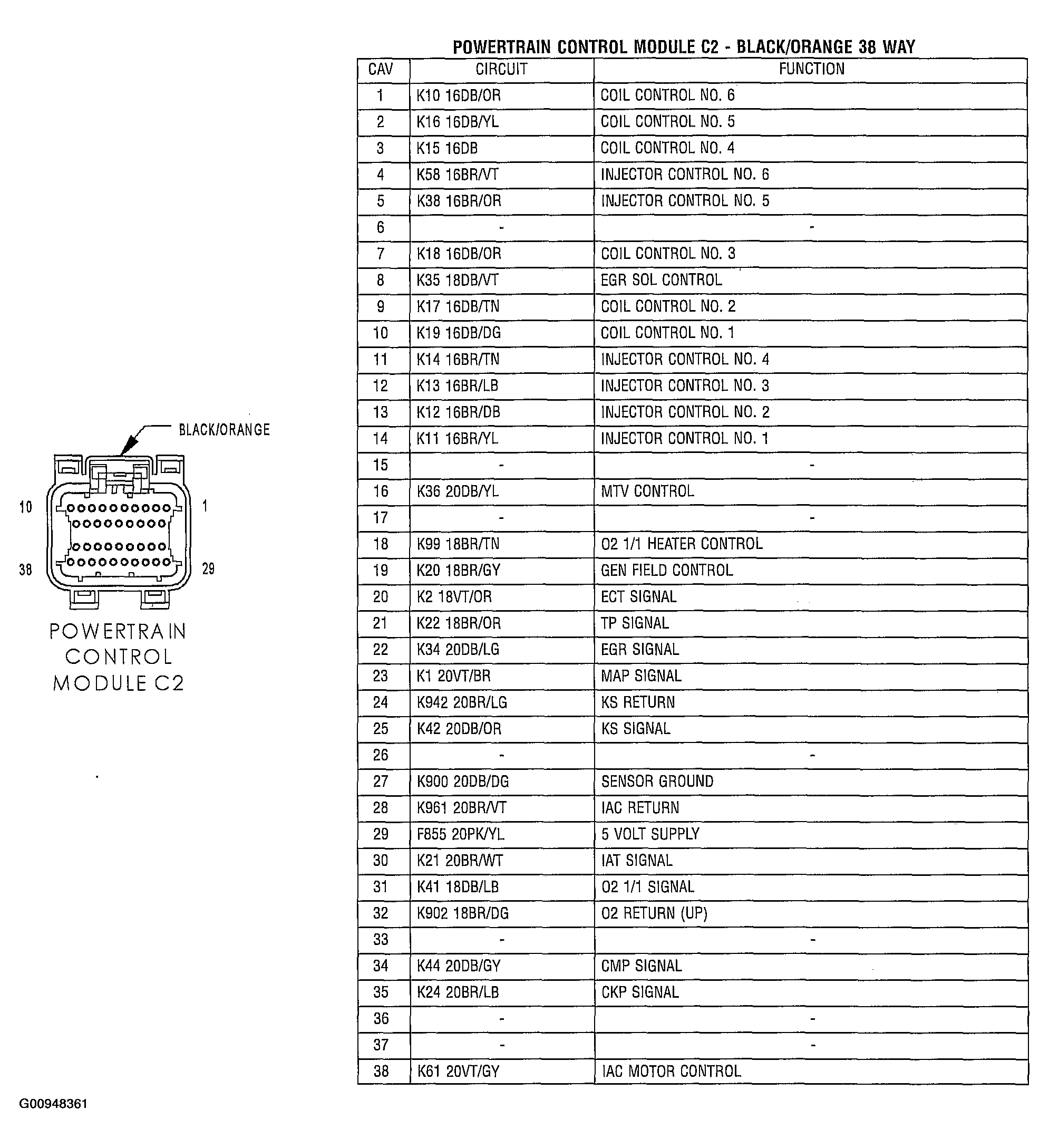

Fig 2: Identifying Powertrain Control Module C2 - Black/Orange 38 Way Connector
G00948361Courtesy of DAIMLERCHRYSLER CORP.

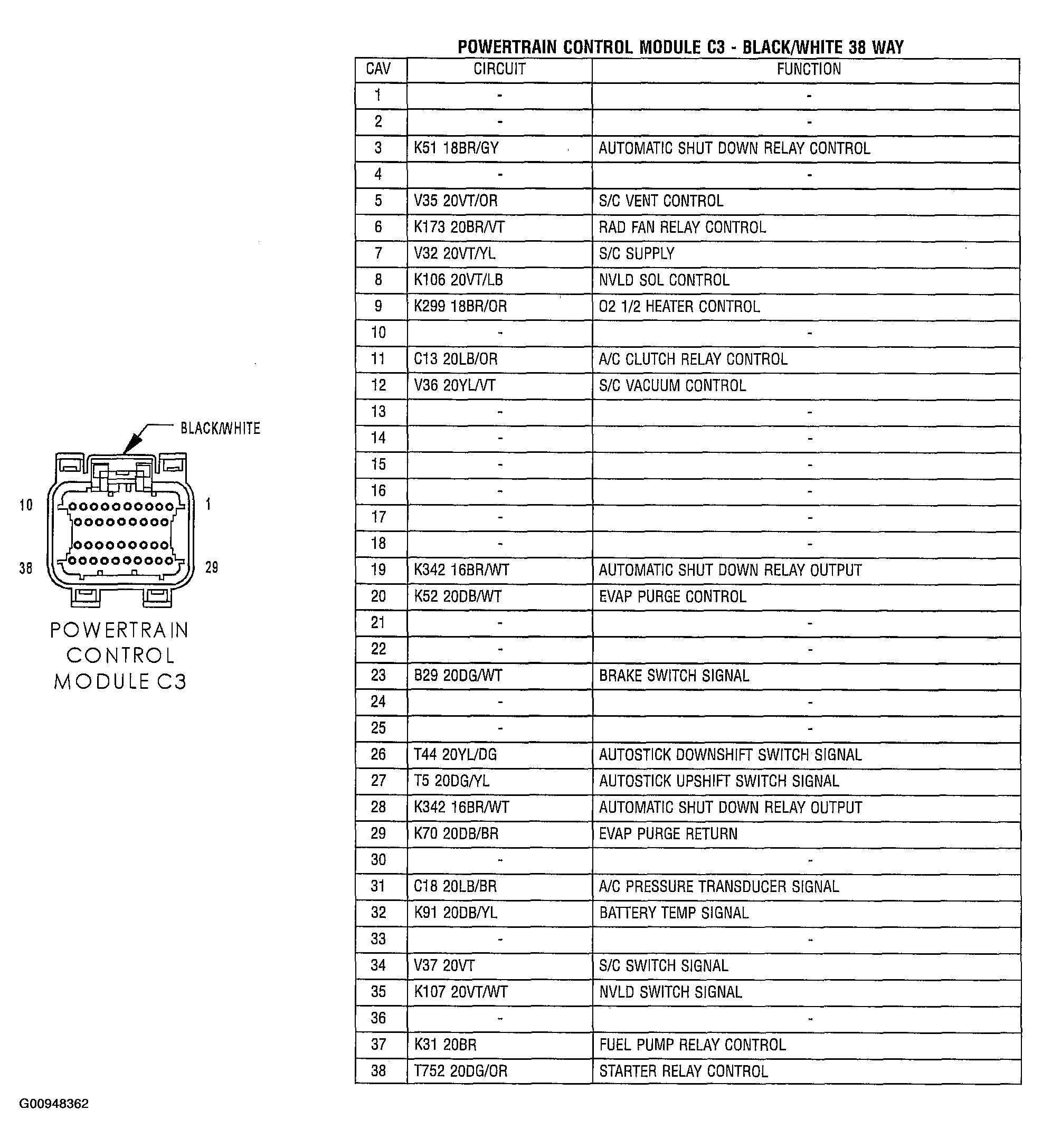

Fig 3: Identifying Powertrain Control Module C3 - Black/White 38 Way Connector
G00948362Courtesy of DAIMLERCHRYSLER CORP.

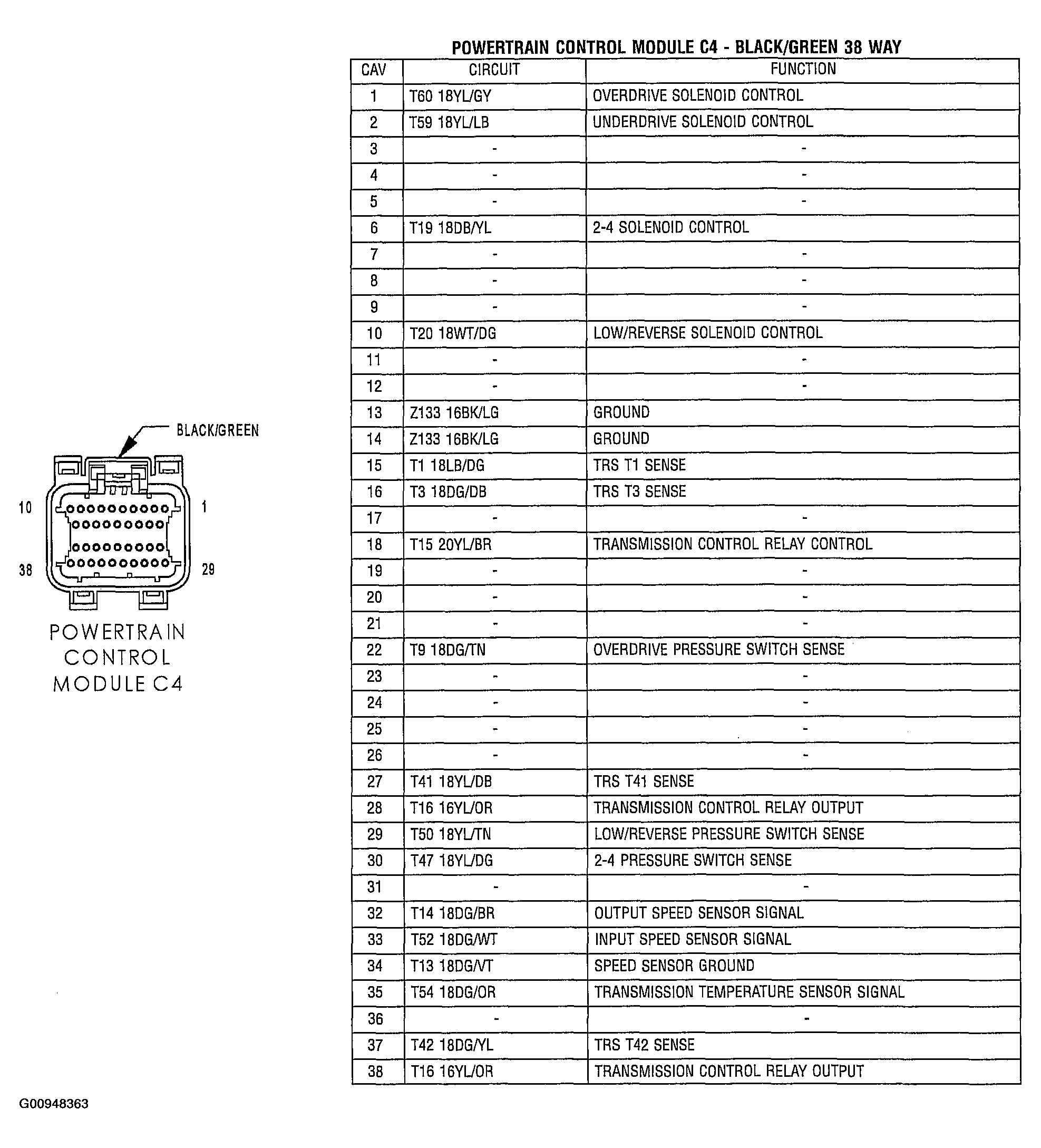

Fig 4: Identifying Powertrain Control Module C4 - Black/Green 38 Way Connector
G00948363Courtesy of DAIMLERCHRYSLER CORP.
