Body Control Module

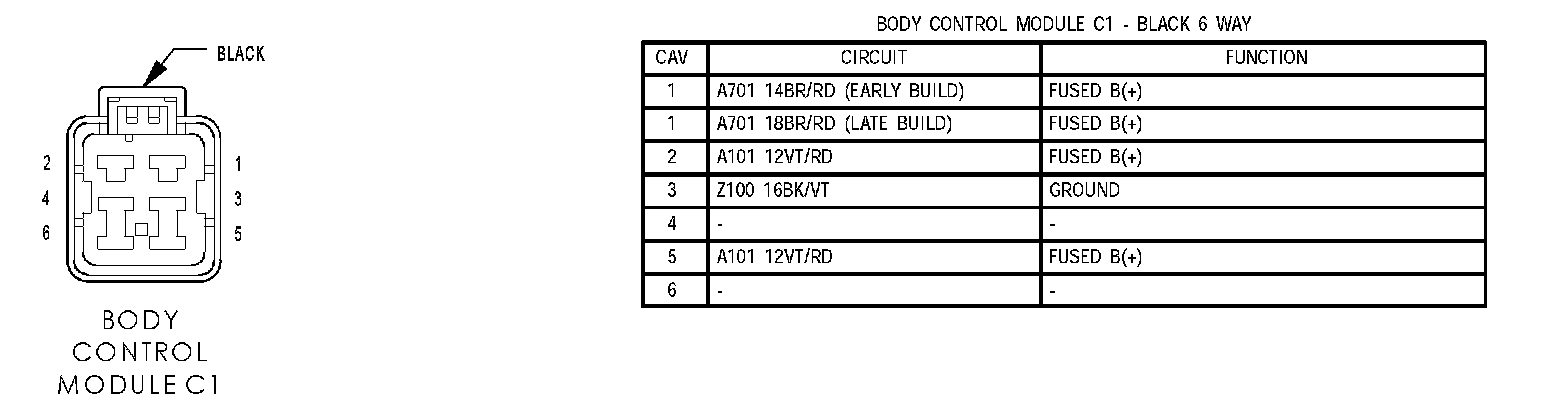

Body Control Module C1:

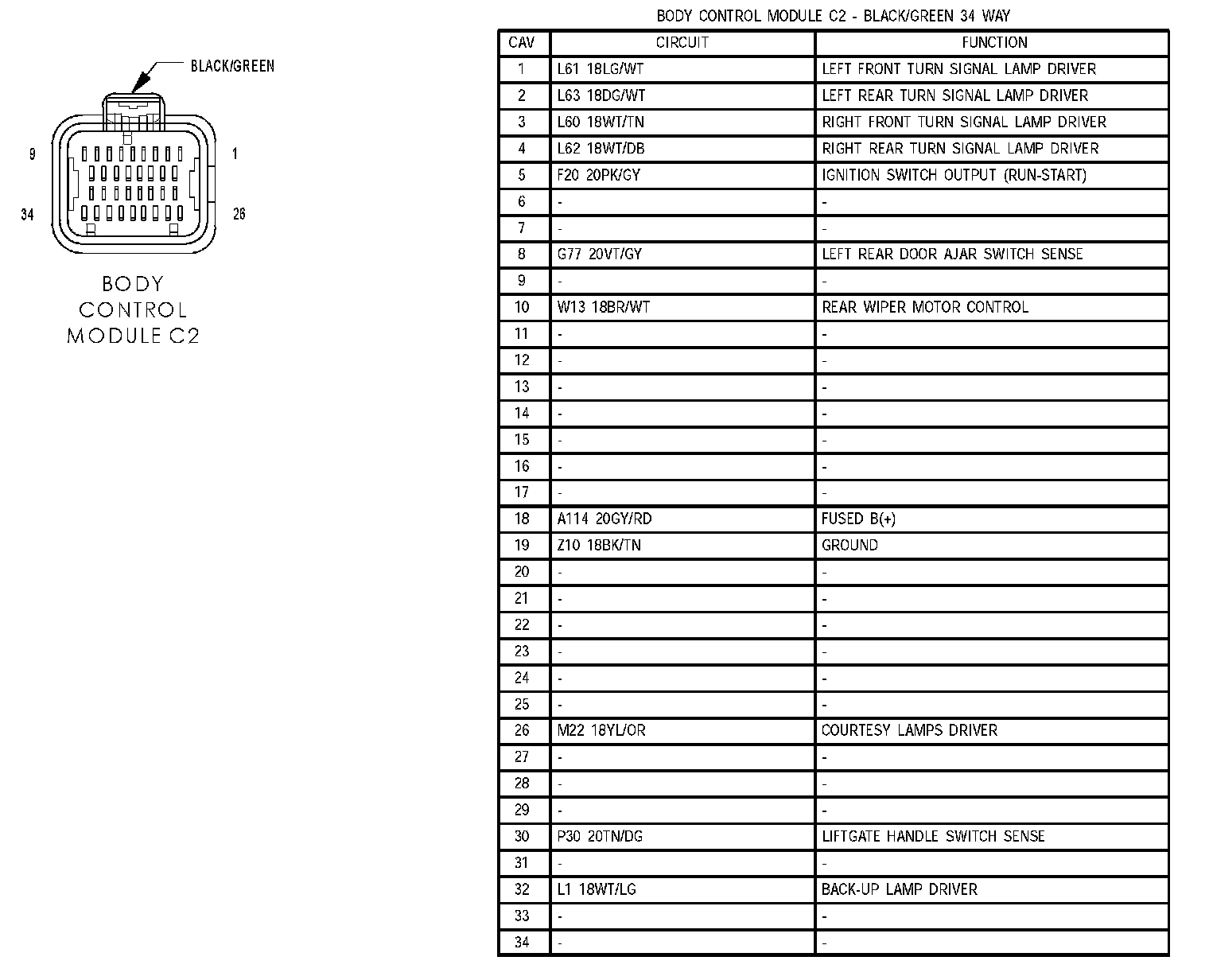

Body Control Module C2:

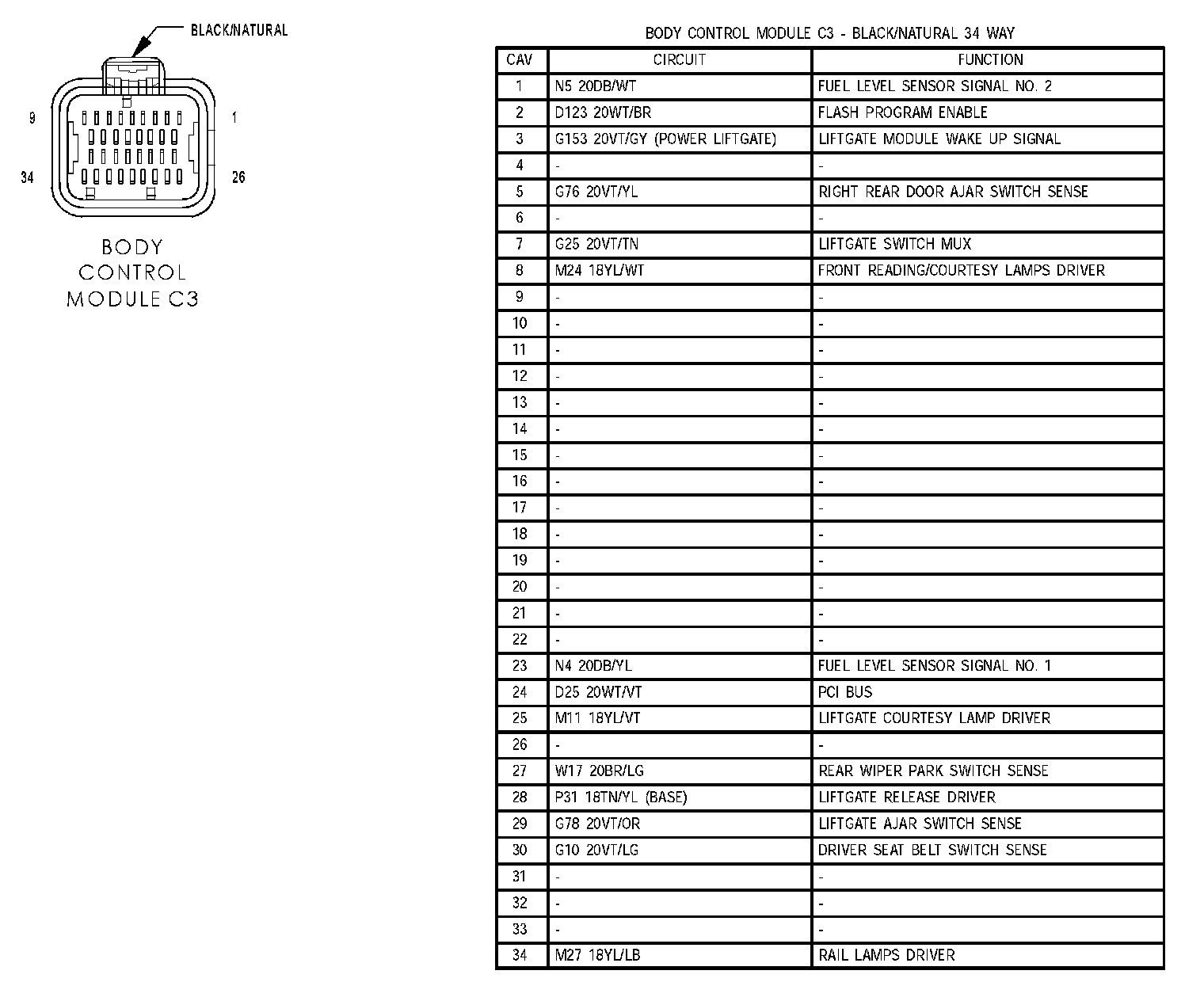

Body Control Module C3:

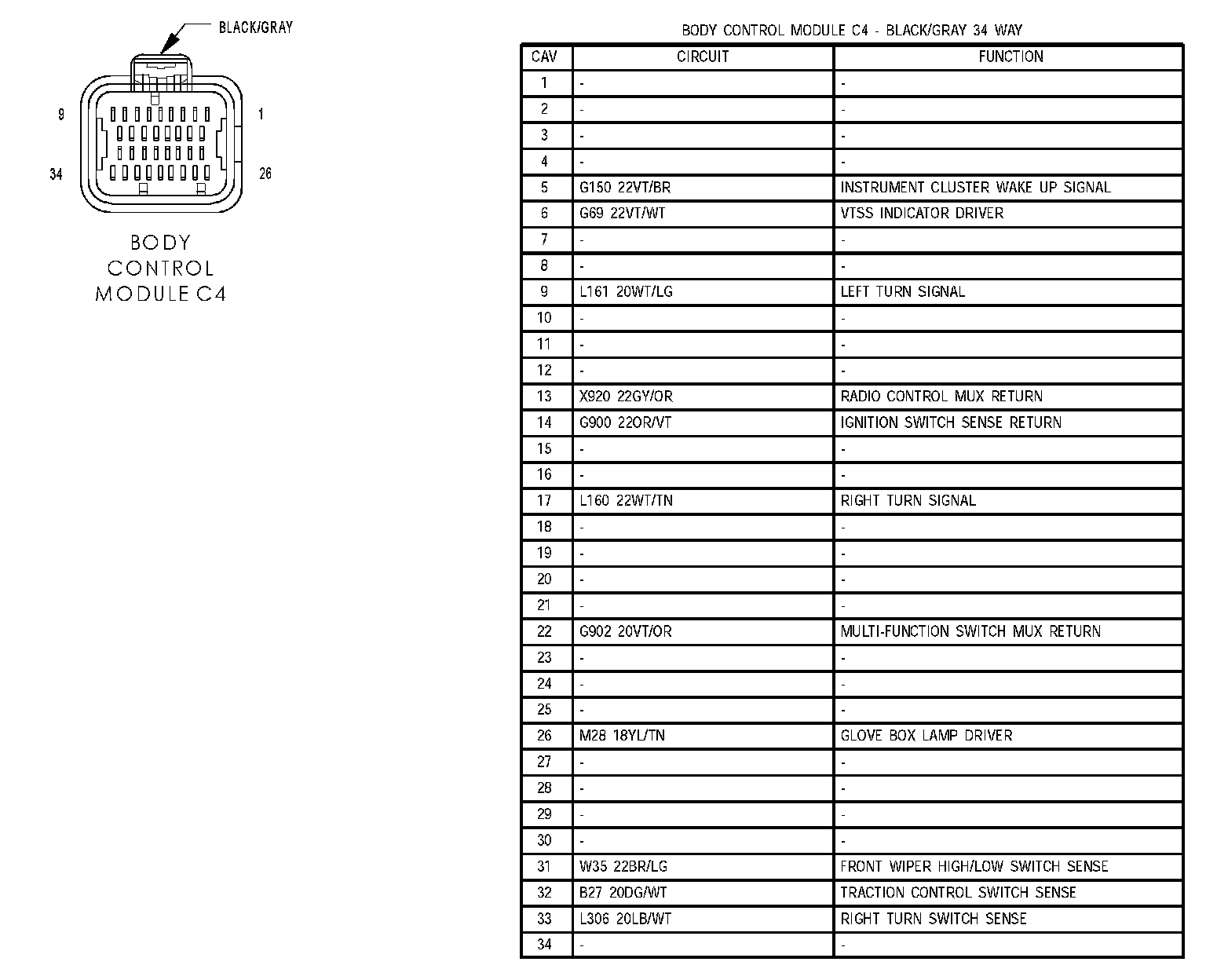

Body Control Module C4:

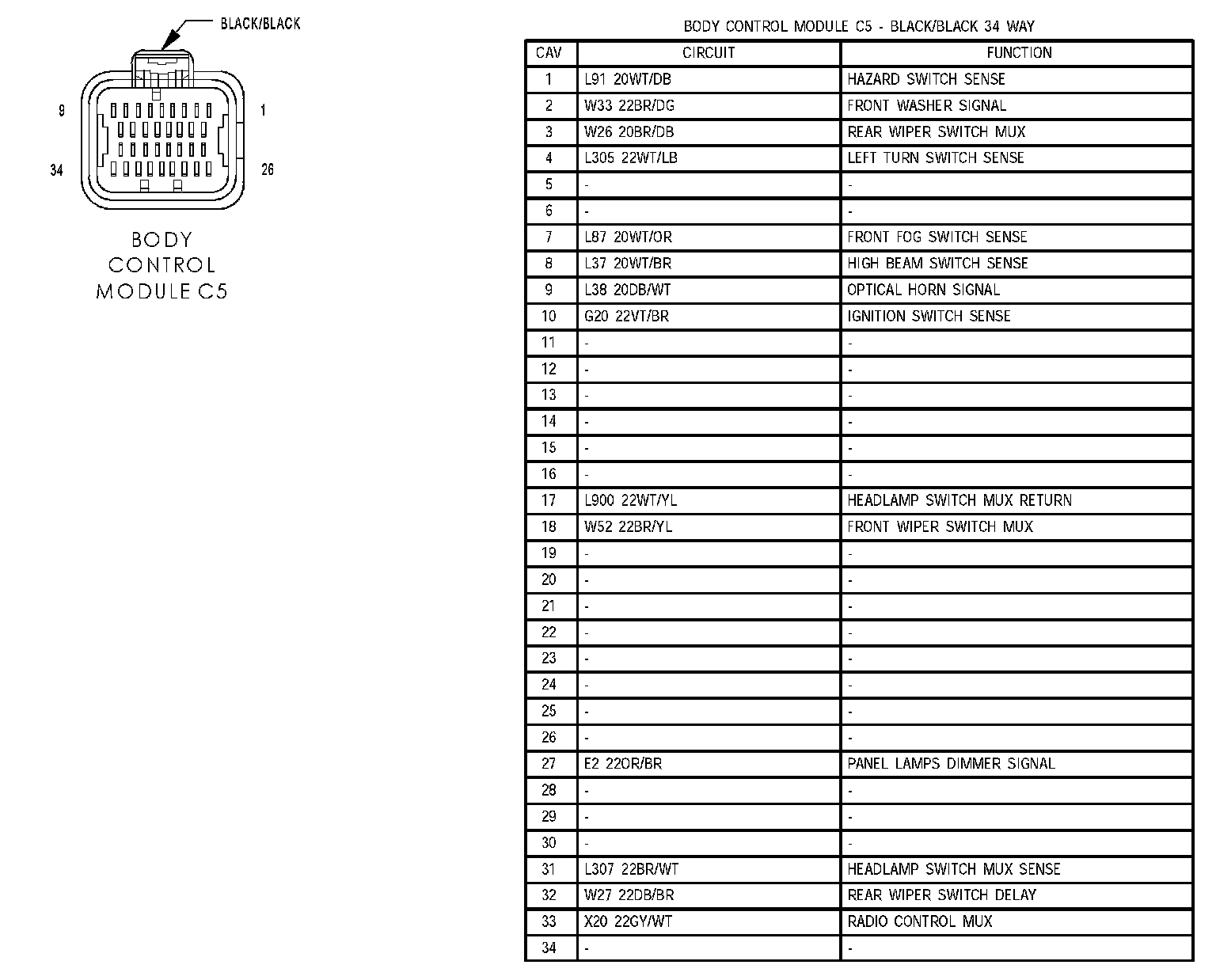

Body Control Module C5:
