Memory Positioning Module

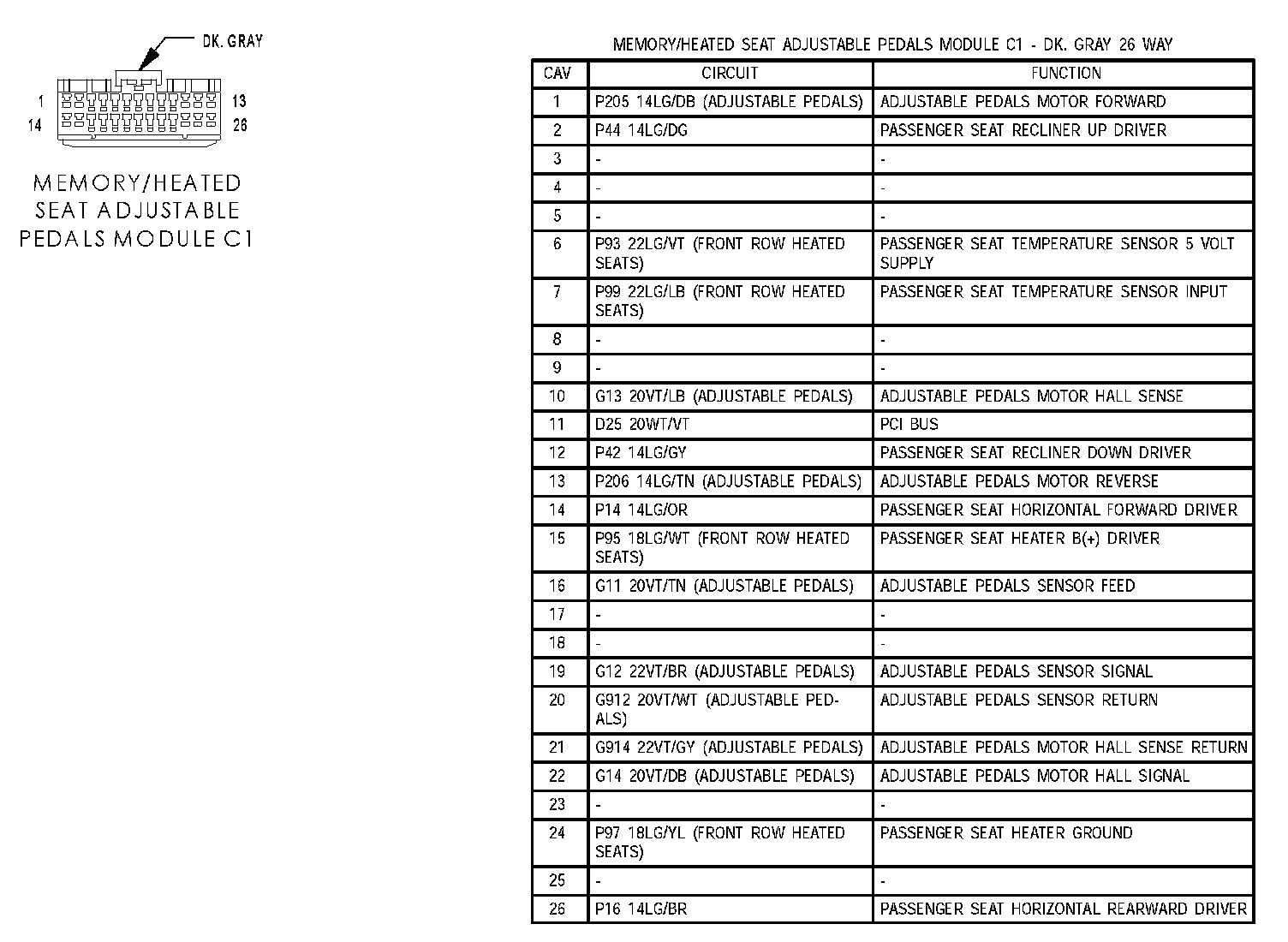

Memory/Heated Seat Adjustable Pedals Module C1:

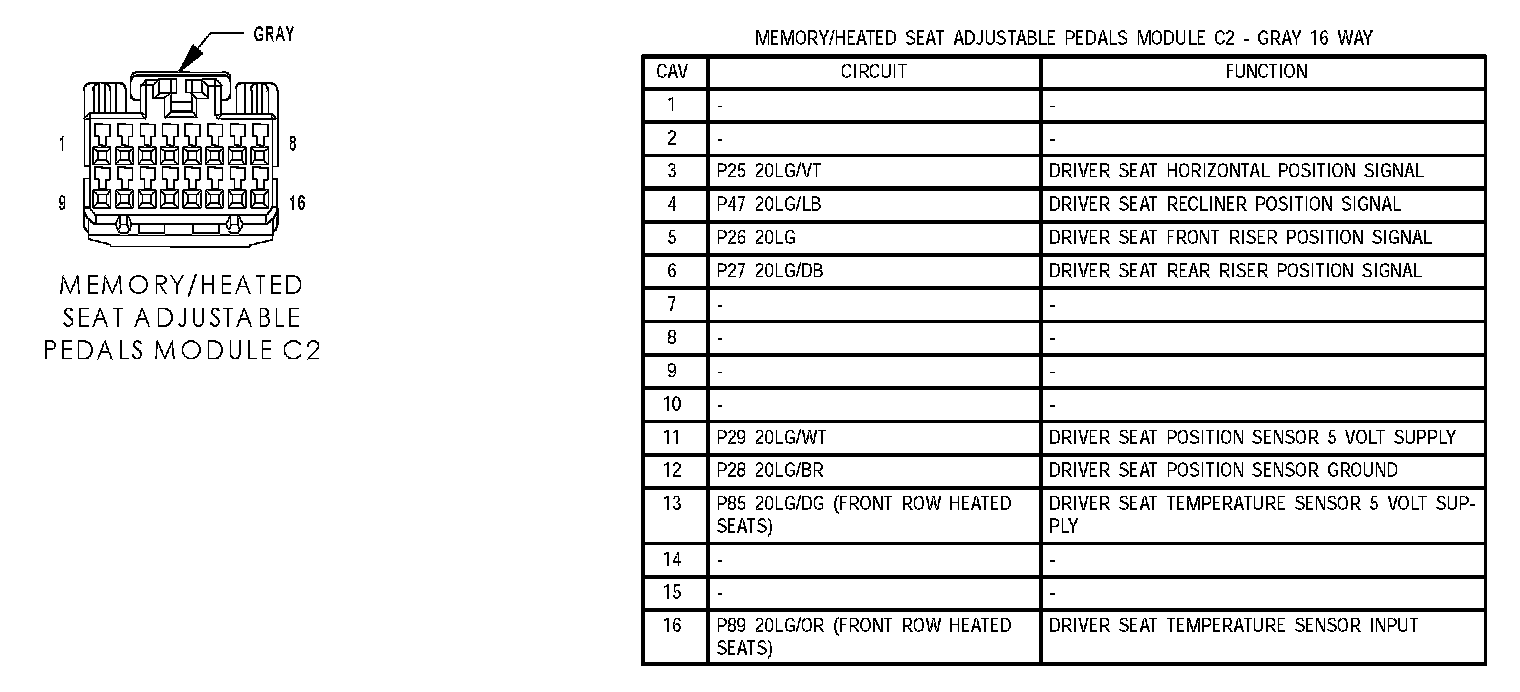

Memory/Heated Seat Adjustable Pedals Module C2:

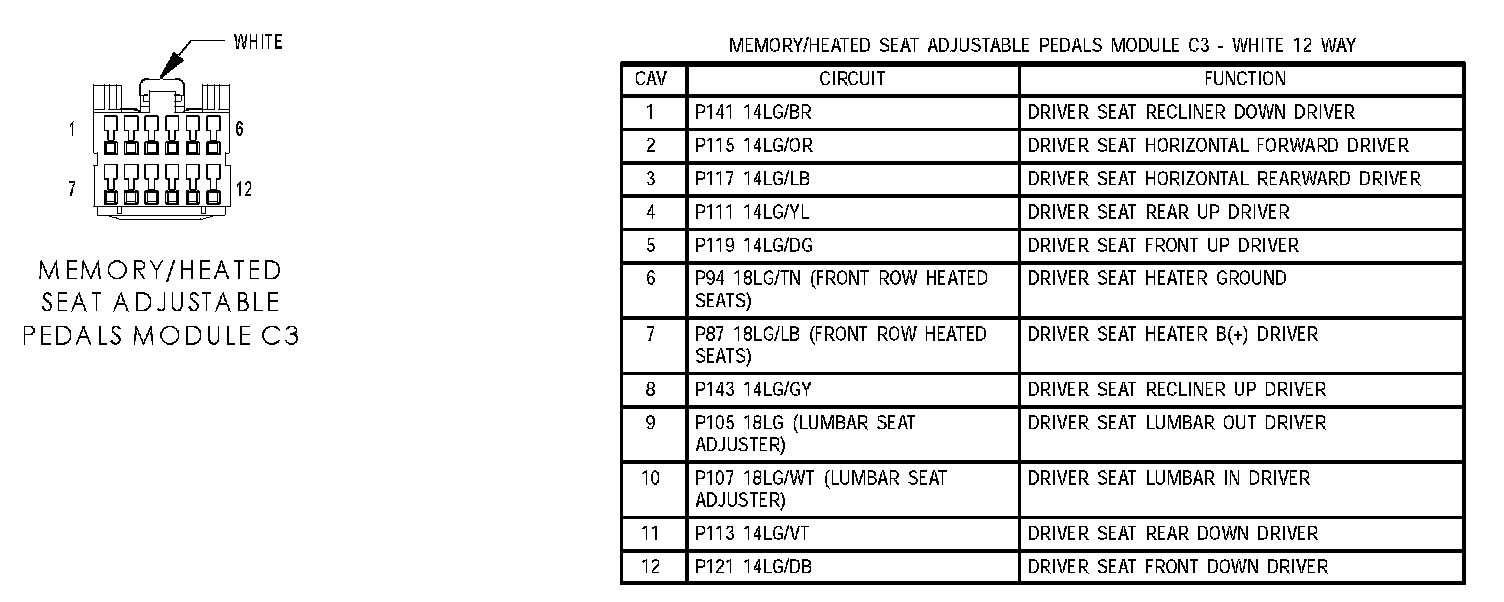

Memory/Heated Seat Adjustable Pedals Module C3:

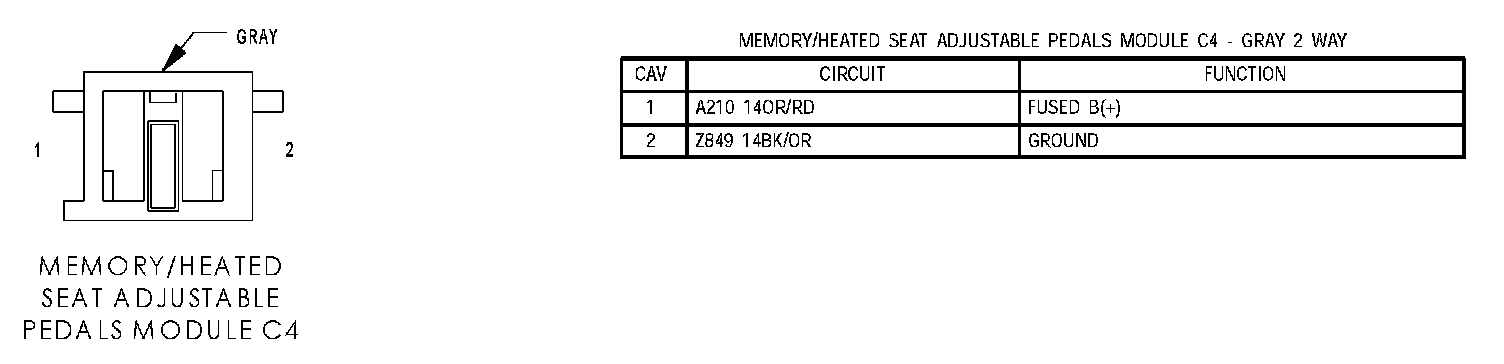

Memory/Heated Seat Adjustable Pedals Module C4:
