Power Distribution Module: Locations

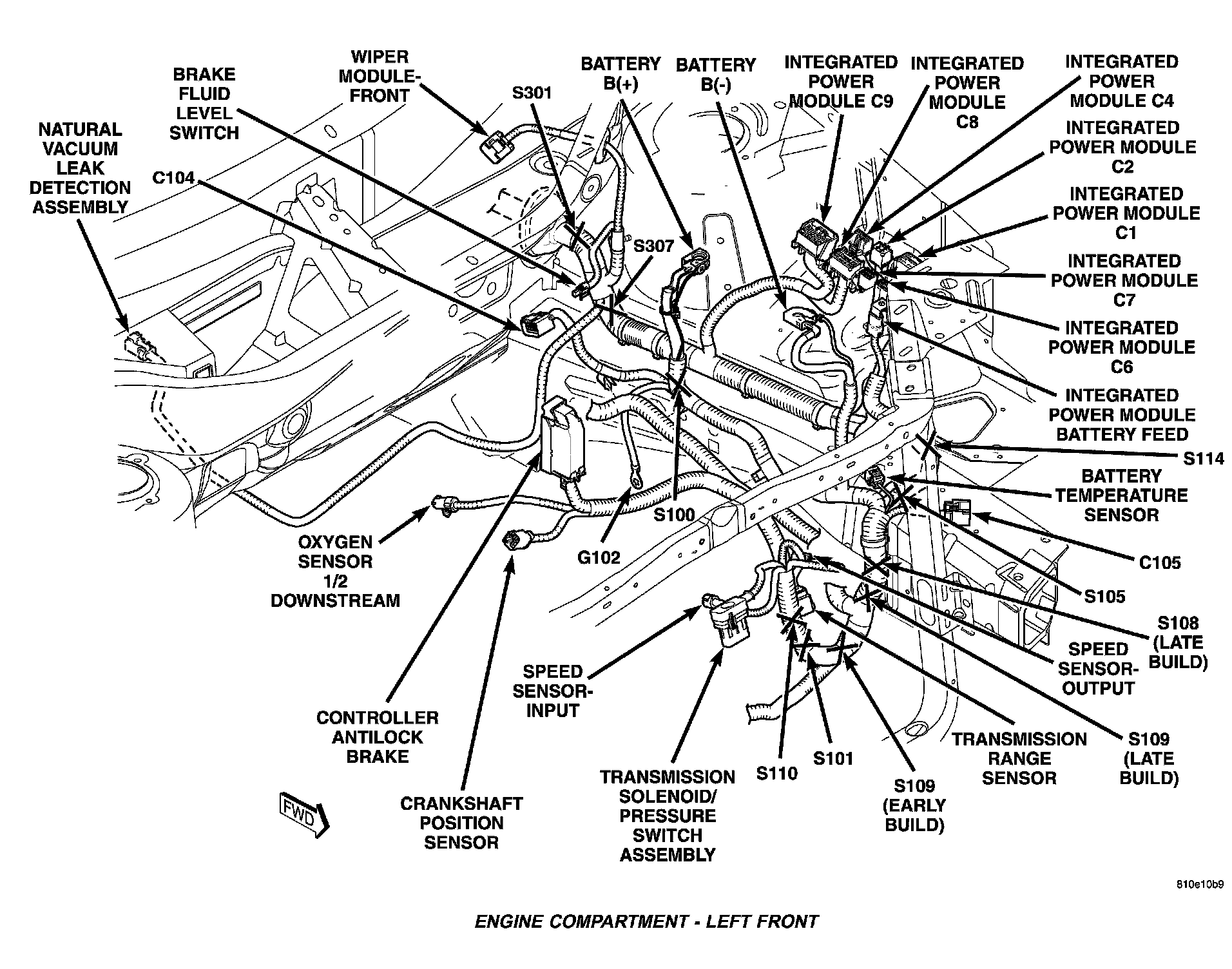

Engine Compartment - Left Front:



Engine Compartment - Left Front and Rear:

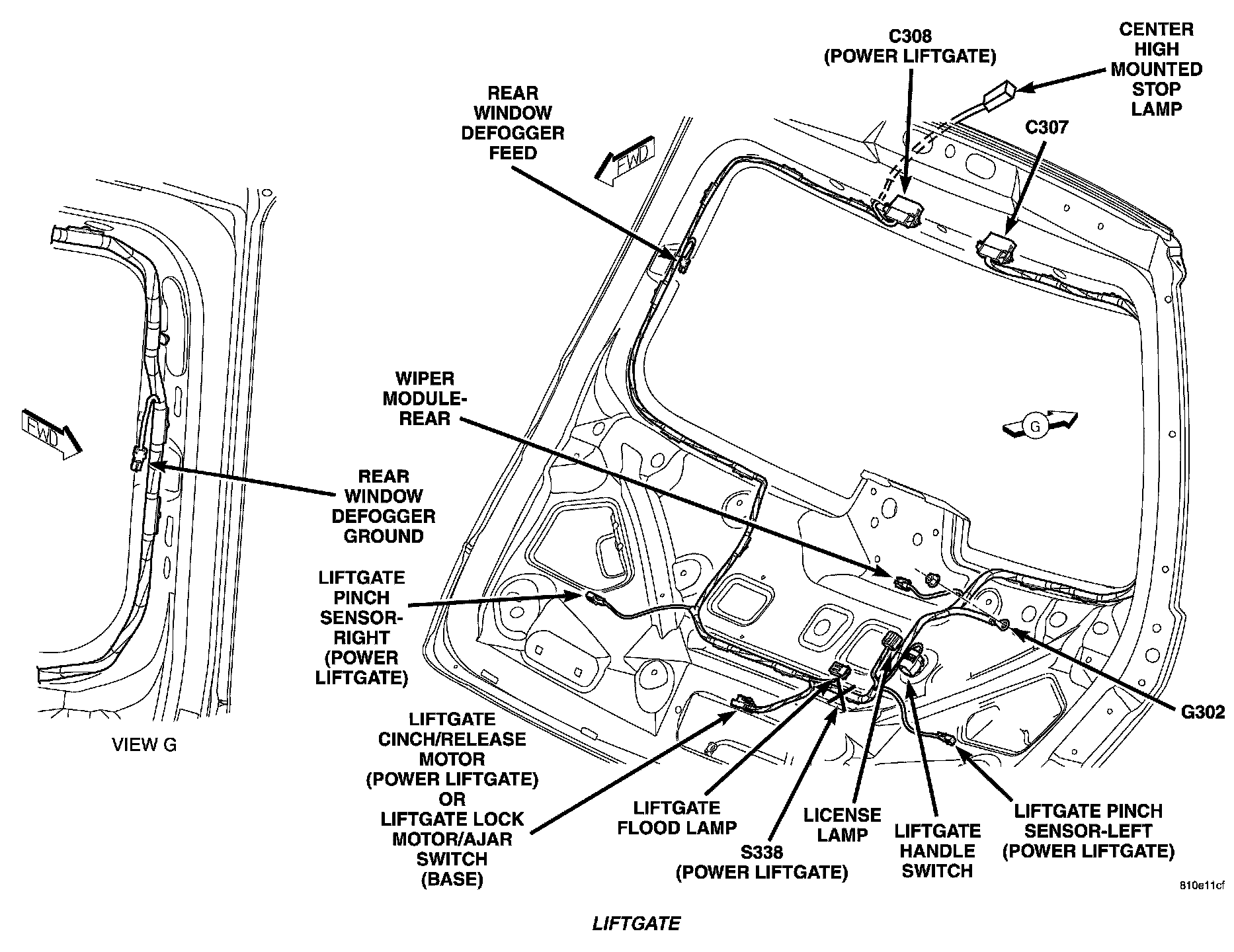

Liftgate:
