Left Rear Door Ajar Circuit Open

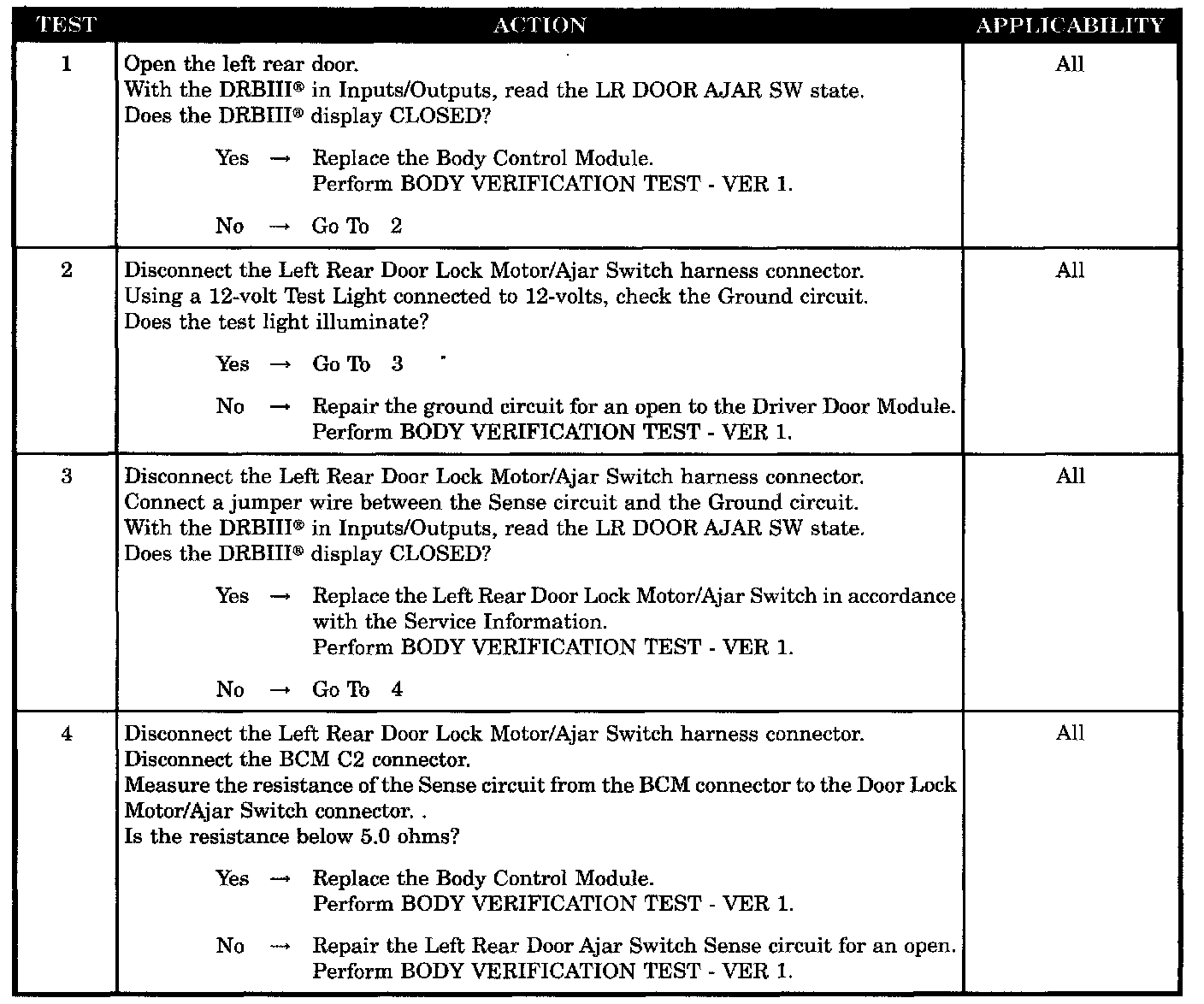

Test 1 - 4:






SYMPTOM
LEFT REAR DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- BCM not responding to input
- Ground circuit open
- Left rear door lock motor/ajar switch open
- Left rear door ajar switch sense circuit open
- Body control module
