Passenger Door Ajar Circuit Open

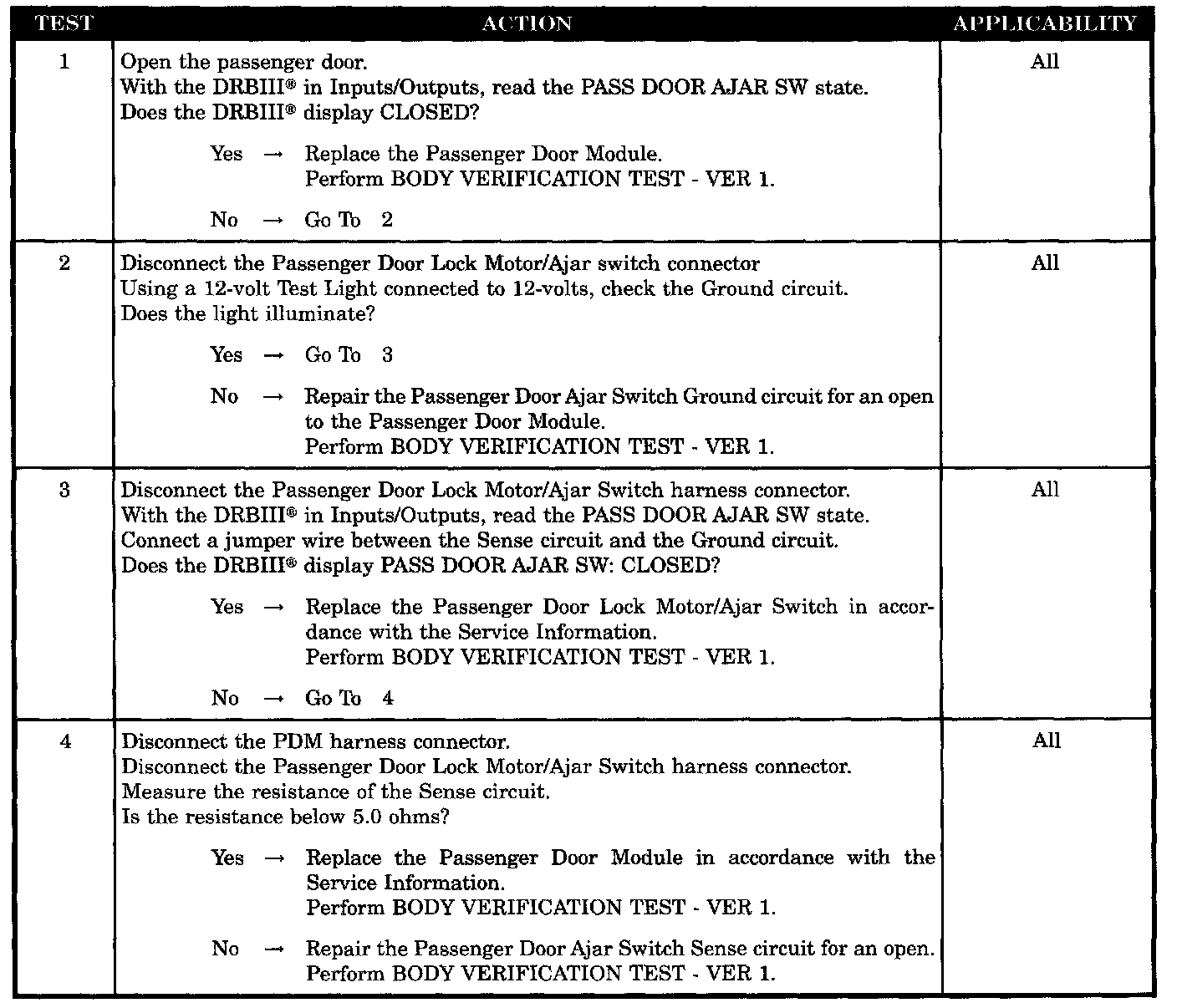

Test 1 - 4:

SYMPTOM
PASSENGER DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Passenger door module
- Open passenger door ajar switch ground circuit
- Open passenger door lock motor/ajar switch
- Open passenger door ajar switch sense CKT
- Passenger door module
