Electrically Heated Systems

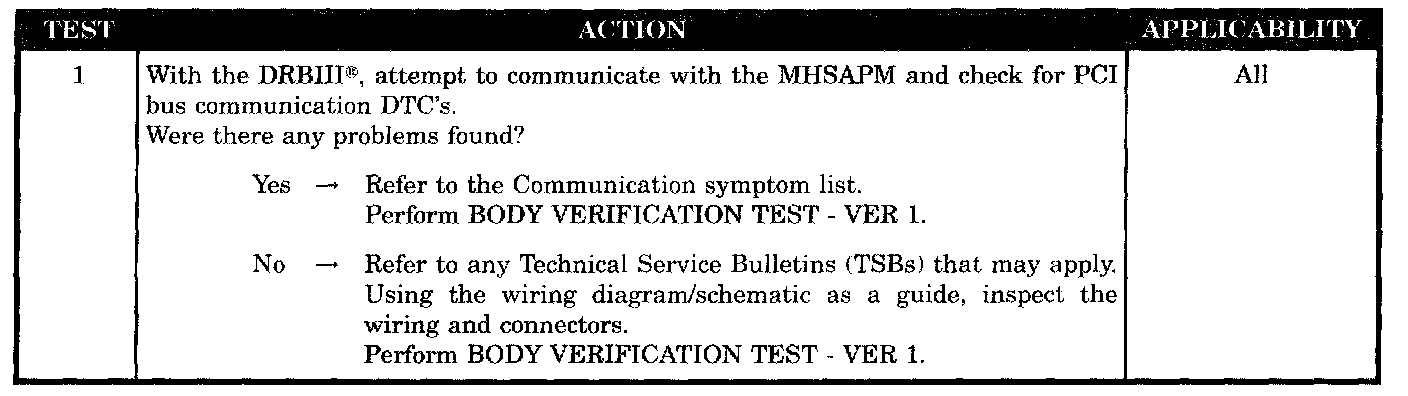

Test 1:






SYMPTOM
FRONT HEATED SEAT SWITCH INDICATOR TURNS ON THEN GOES OFF

POSSIBLE CAUSES
- Memory heated seat adjustable pedal module communication
- Intermittent condition
