Automatic (Rolling) Door Locks Inoperative

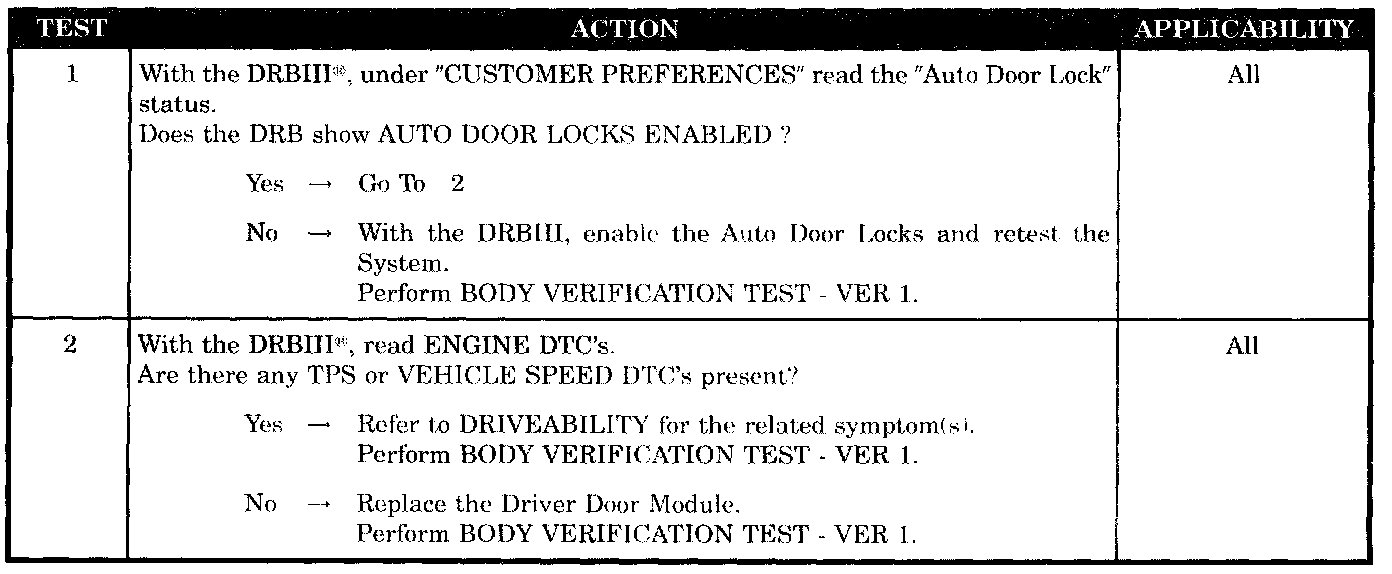

Test 1 - 2:






SYMPTOM
AUTO DOOR LOCKS INOPERATIVE

POSSIBLE CAUSES
- Auto door locks not enabled
- PCM DTCs present
- Driver door module - auto locks inoperative
