Driver Door Fails to Lock and Unlock

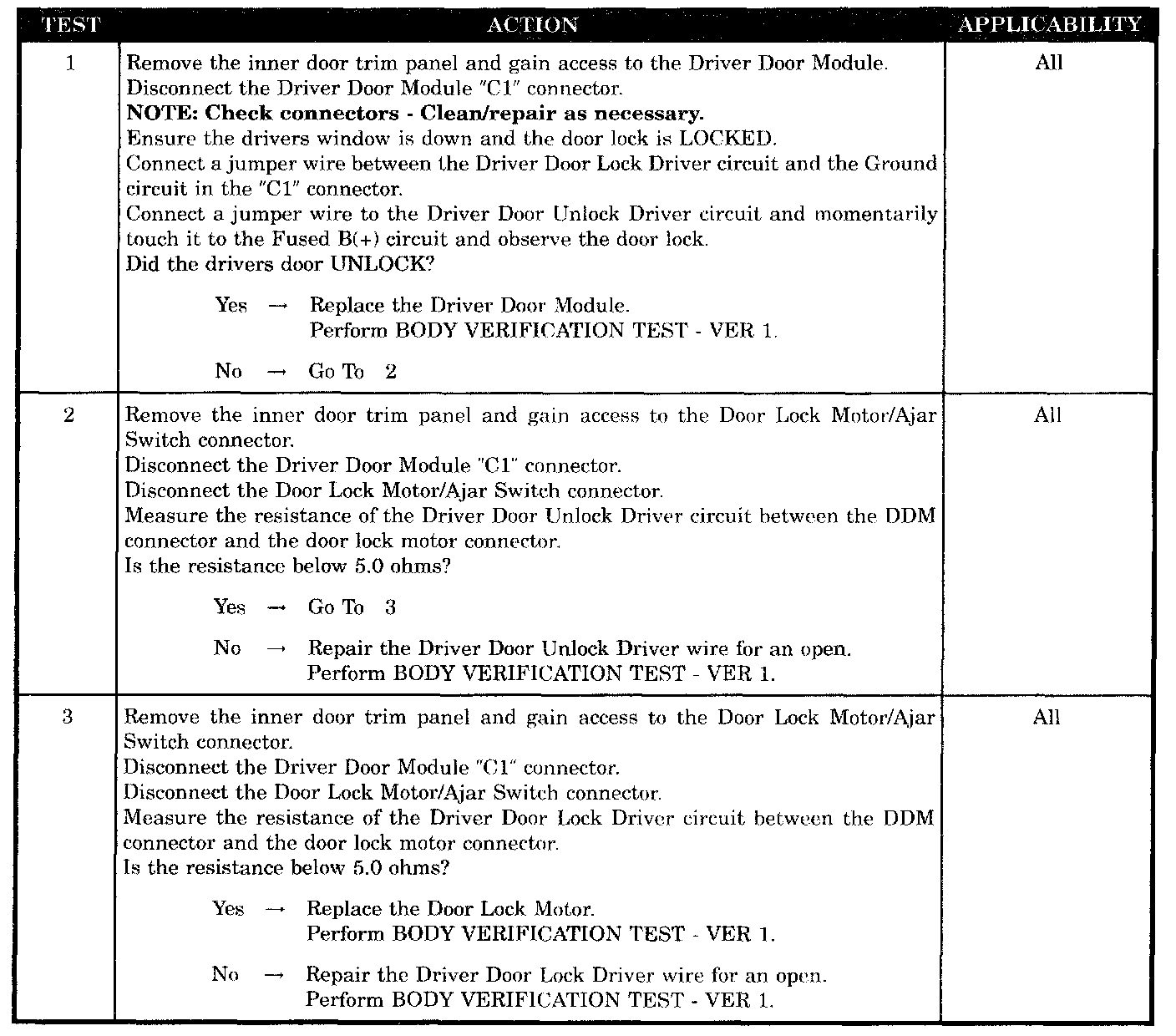

Test 1 - 3:






SYMPTOM
DRIVER DOOR FAILS TO LOCK AND UNLOCK

POSSIBLE CAUSES
- Driver door module - open door lock driver
- Driver door unlock driver wire open
- Open driver door lock driver wire
- Door lock motor open
