Engine Control Module: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Raise vehicle and support.
3. Remove the left front wheel.
4. Remove the left front splash shield.

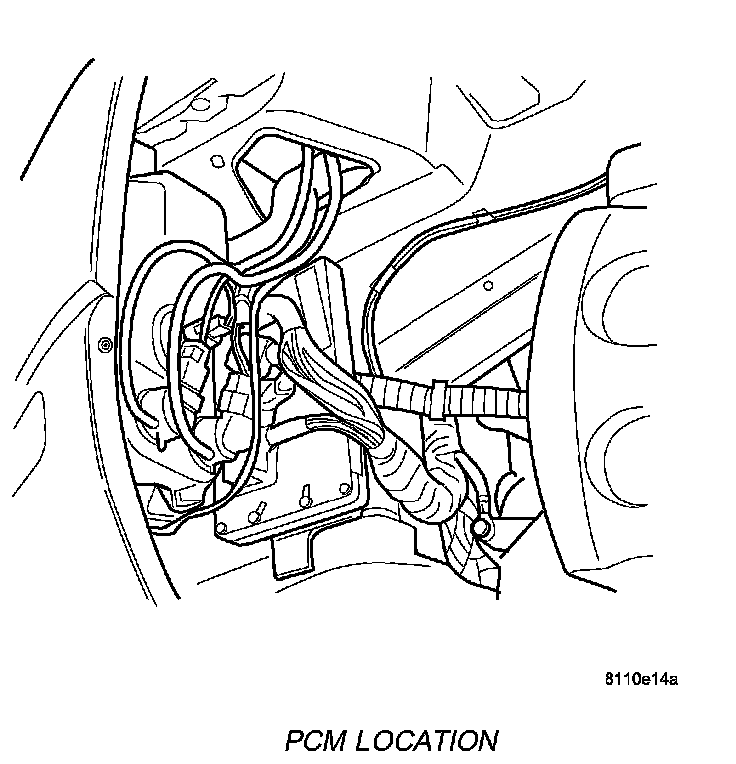

PCM Location:

5. Unlock and remove the 4 connectors.

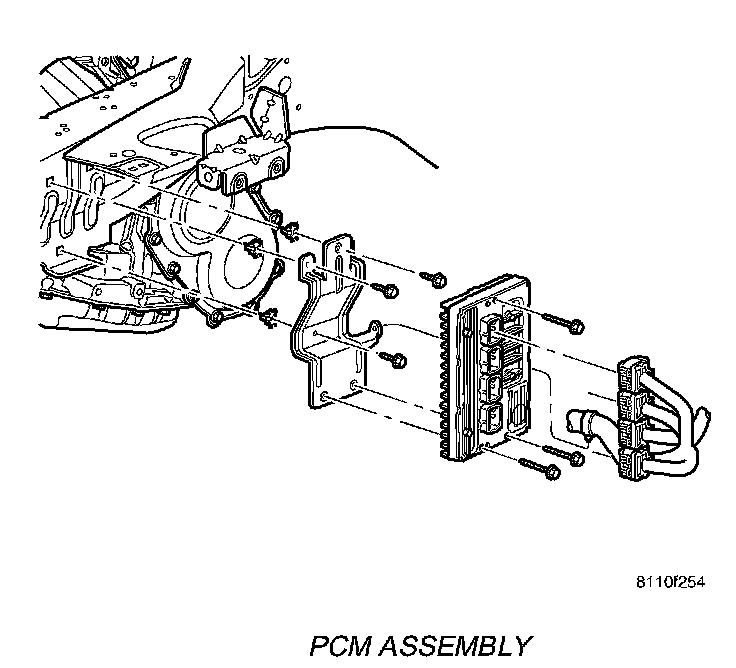

PCM Assembly:

6. Remove the 3 mounting screws.
7. Remove the PCM.

INSTALLATION
1. Install the PCM.
2. Install the 3 mounting screws.
3. Tighten screws.

NOTE: The PCM connectors are color coded.

4. Install and lock the 4 electrical connectors.
5. Install the left front splash shield.
6. Install the left front wheel.
7. Lower vehicle.
8. Connect the negative battery cable.
