One Window Motor Inoperative From Any Switch

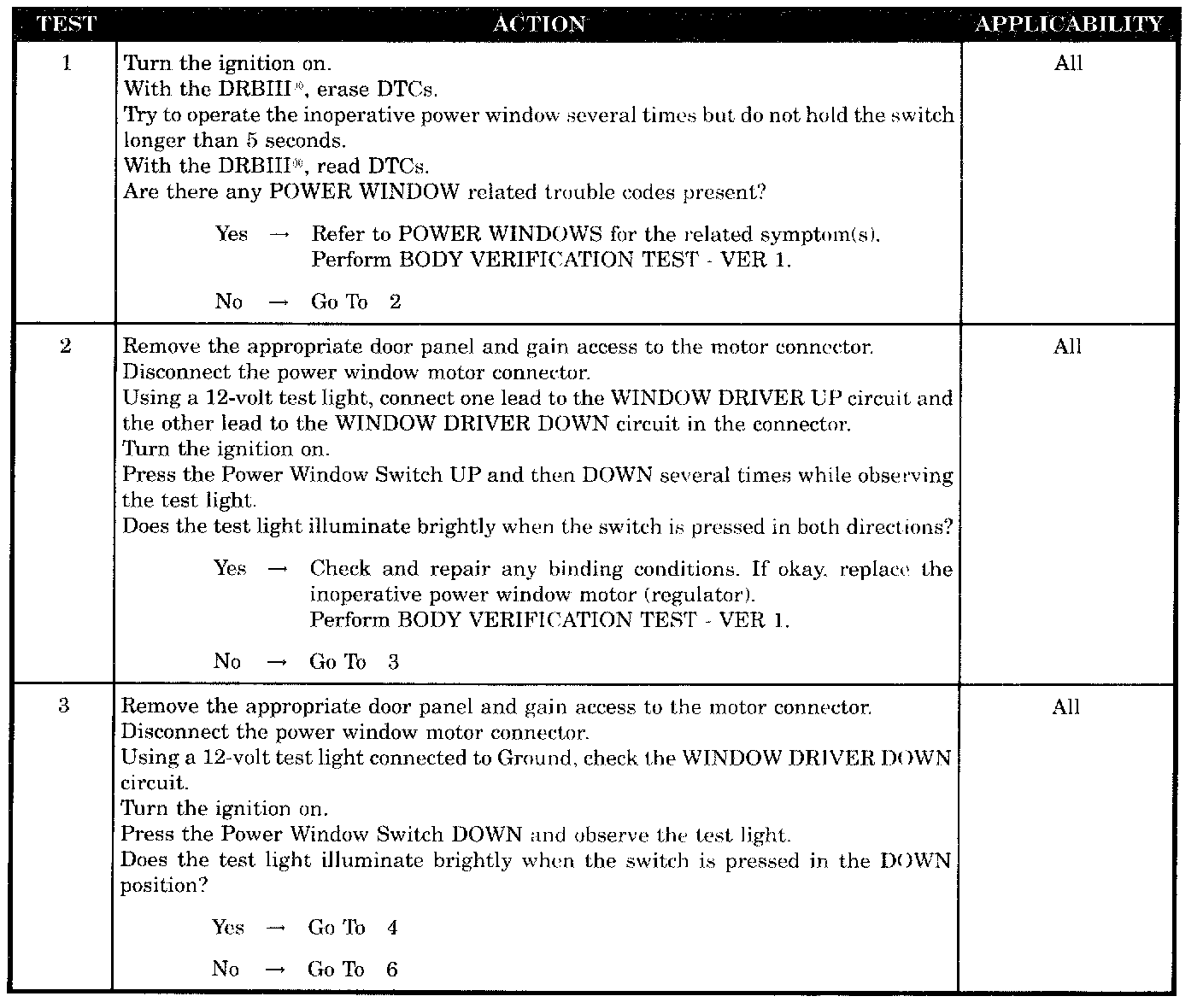

Test 1 - 3:

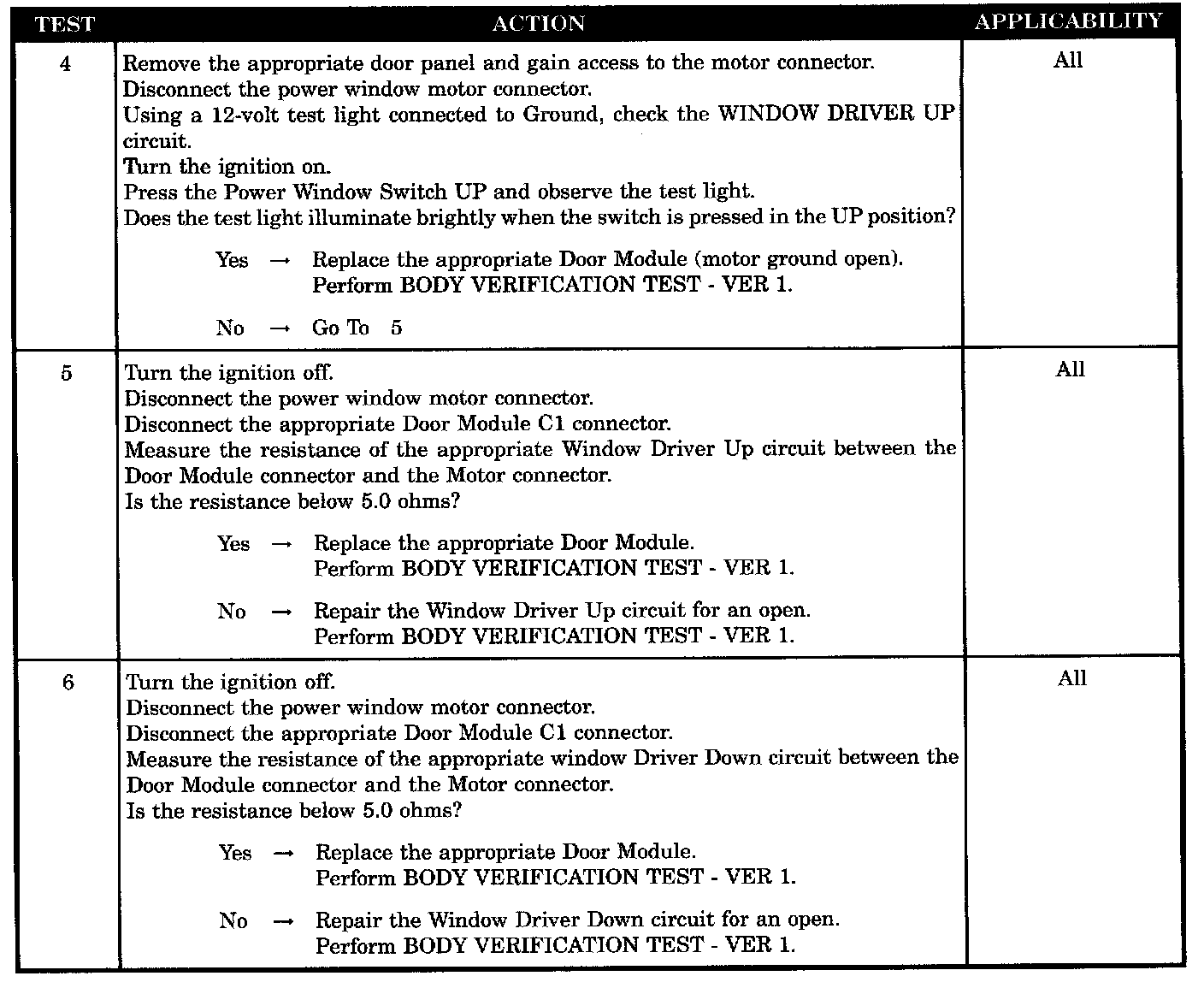

Test 4 - 6:






SYMPTOM
ONE WINDOW MOTOR INOPERATIVE FROM ANY SWITCH

POSSIBLE CAUSES
- DTC present
- Window motor
- Window driver down wire open
- Window driver up wire open
- Door module open
- Door module open
