Engine Torque Specifications

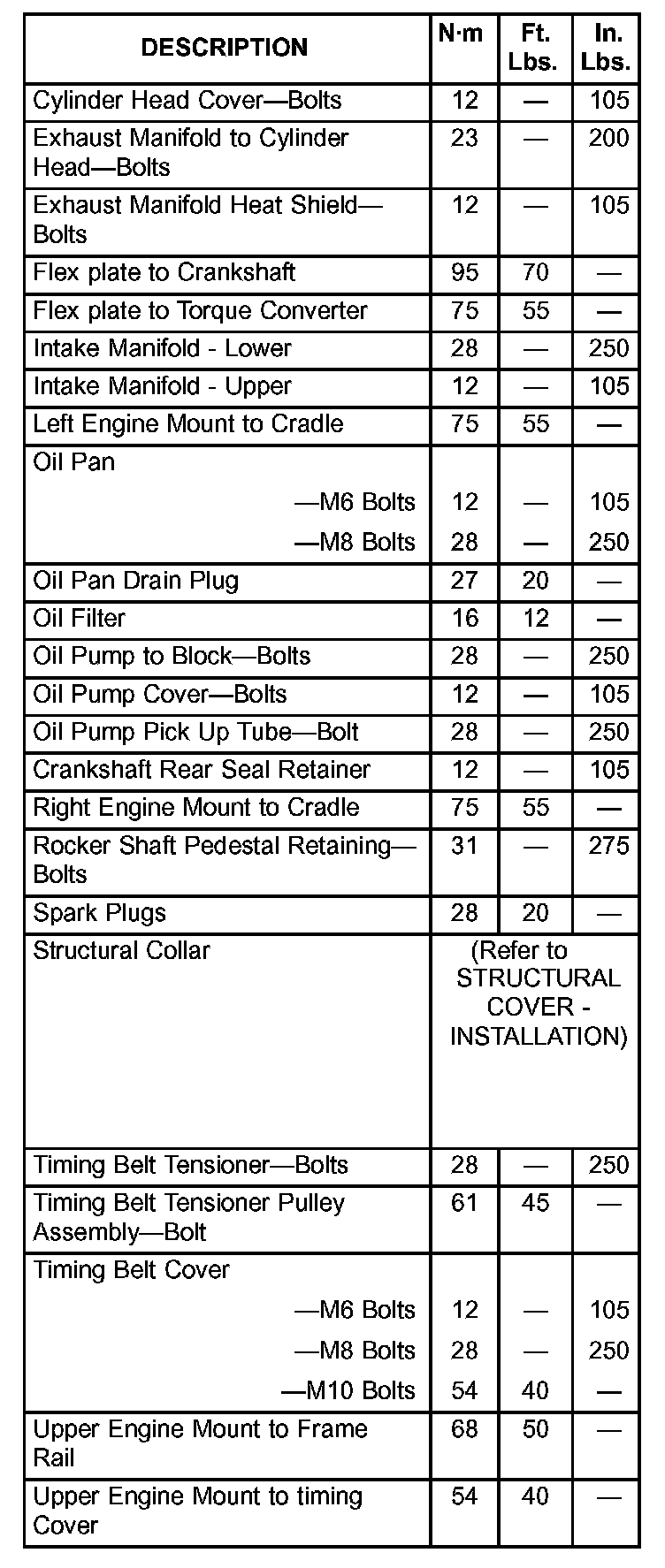

Torque Specifications










Water Pump 12 Nm (105 inch lbs.)





Head Bolt Re-usability
