Disassembly And Assembly: Notes

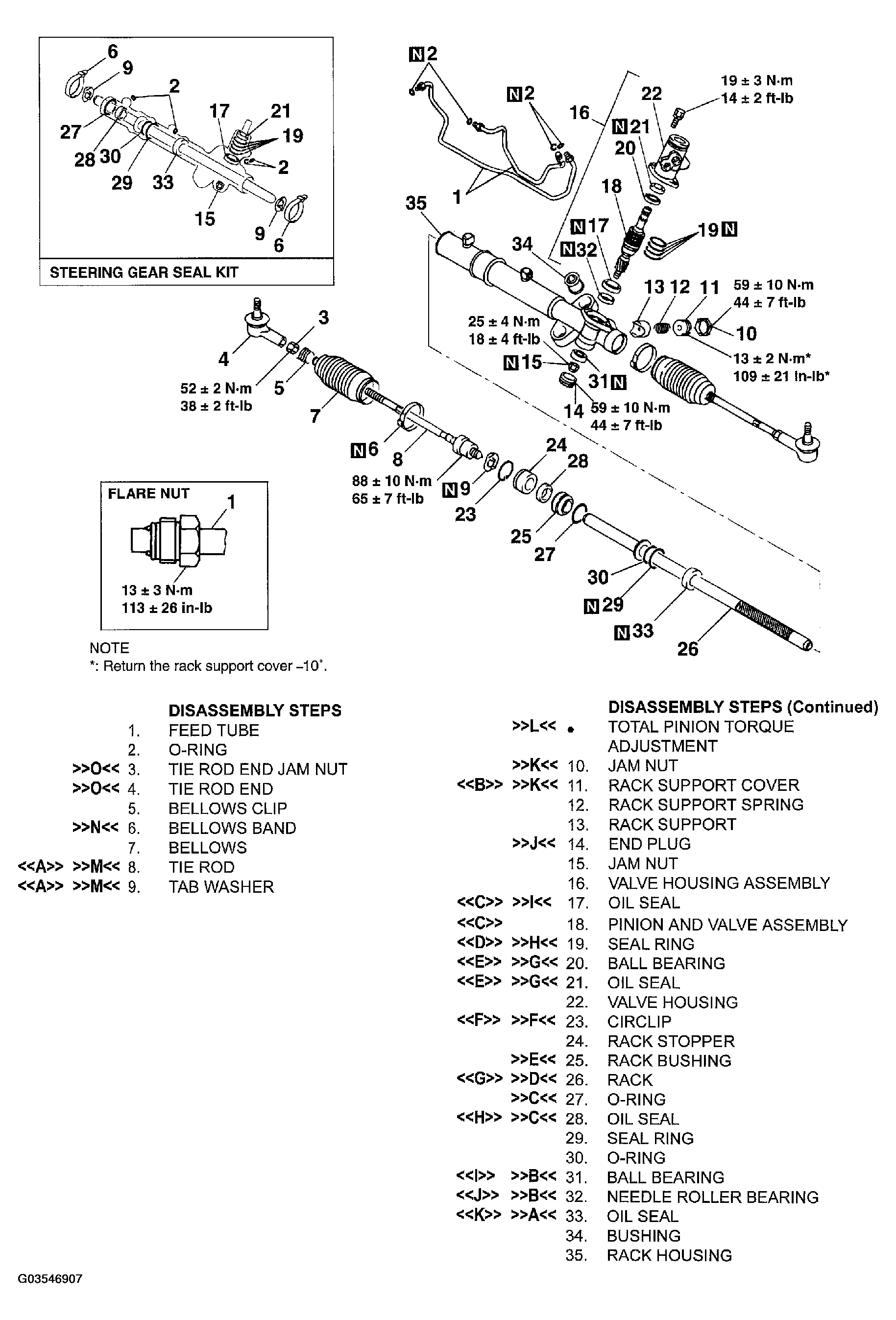

Fig 1: [Exploded View Of Power Steering Assy}

G03546907

Courtesy of DAIMLERCHRYSLER CORP.
