Removal And Installation: Notes

WARNING: Before removing the steering gear box, refer to AIR BAG SAFETY PRECAUTIONS . Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

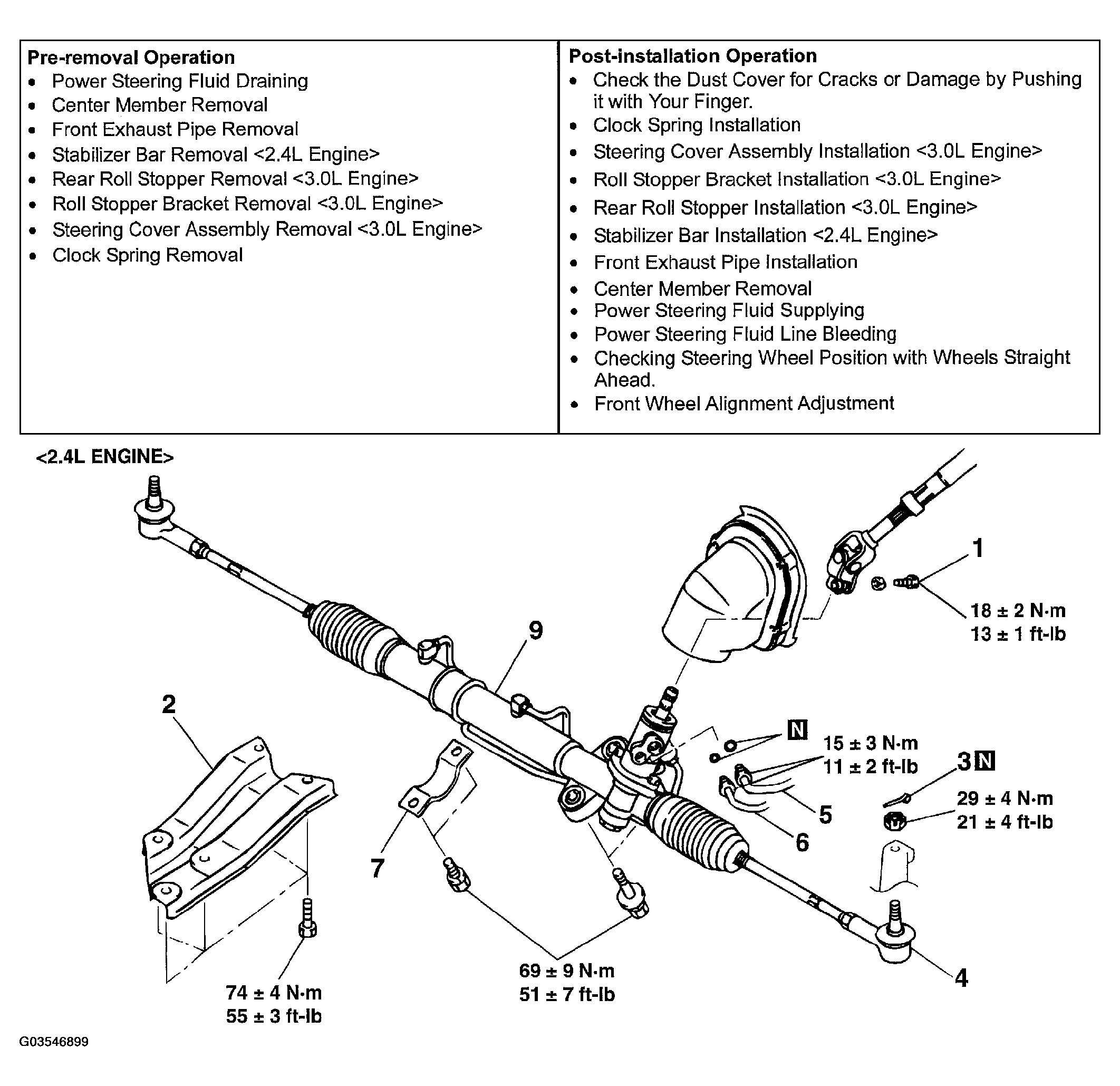

Fig 1: Exploded View Of Power Steering Gear Box Assembly (2.4L Engine)

Courtesy of DAIMLERCHRYSLER CORP.

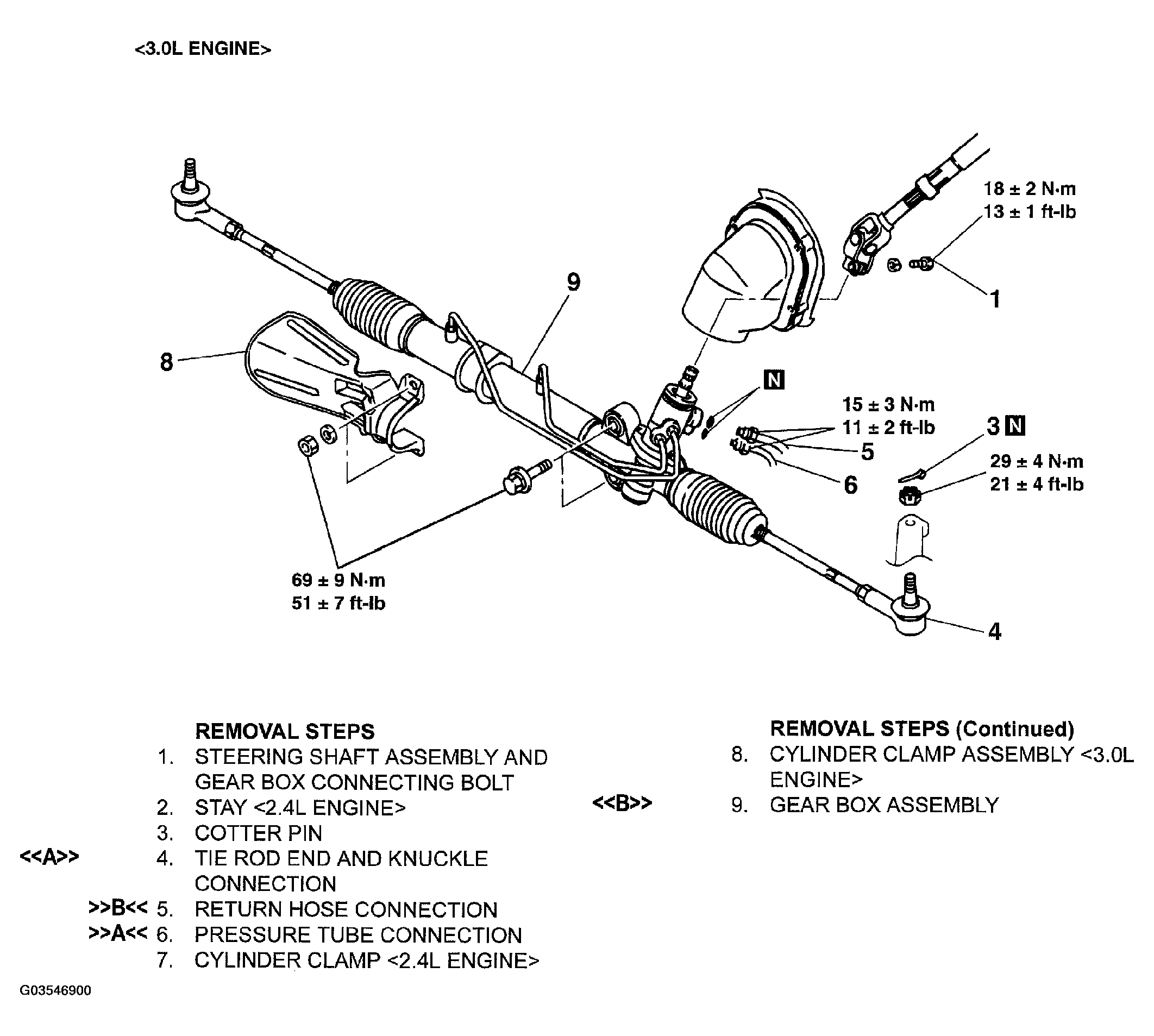

Fig 2: Exploded View Of Power Steering Gear Box Assembly (3.0L Engine)

Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tools:

MB990228 or MB991006: Preload Socket
MB991897: Ball Joint Remover
