Right Rear Door Ajar Circuit Open

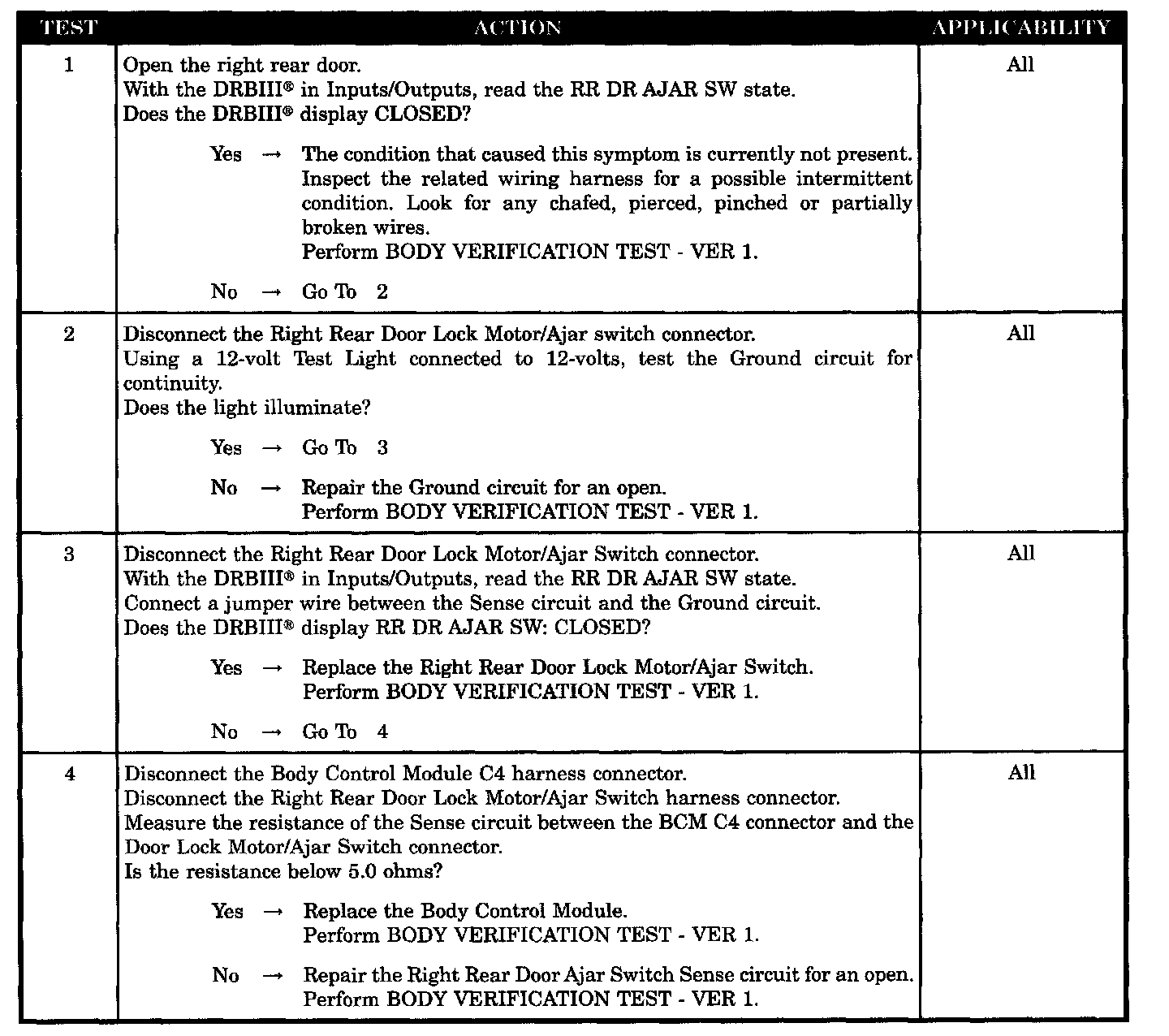

Test 1 - 4:






SYMPTOM
RIGHT REAR DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Intermittent condition
- Right rear door ajar switch ground circuit open
- Right rear door lock motor/ajar switch
- Right rear door ajar switch sense circuit open
- Body control module internal malfunction
