All Doors Fail to Lock From Any Switch

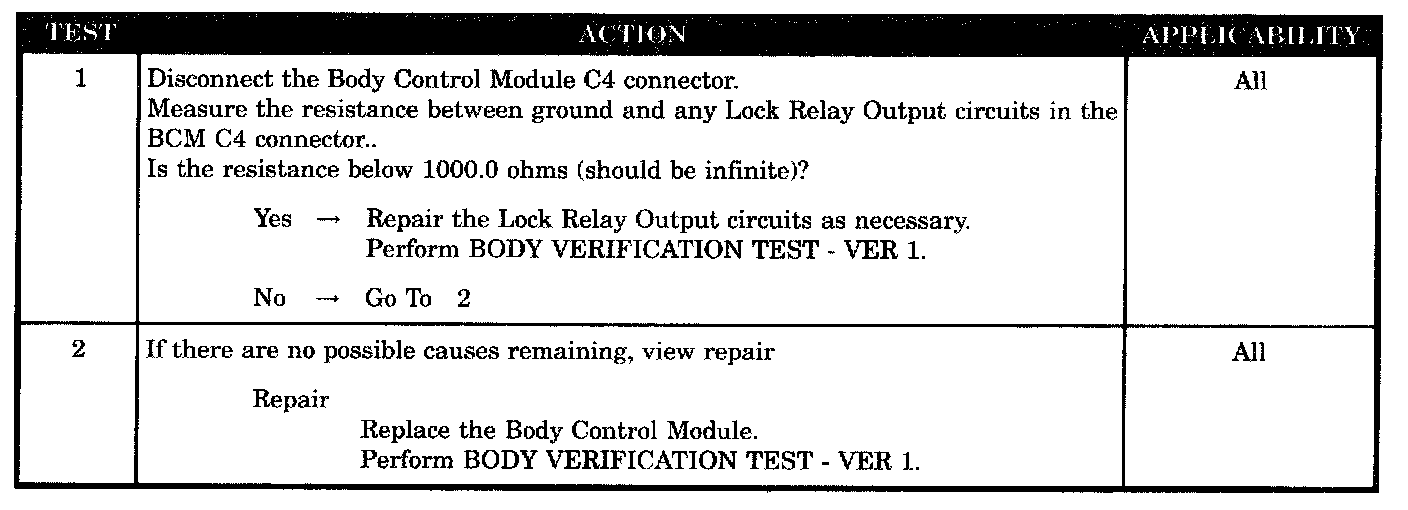

Test 1 - 2:






SYMPTOM
ALL DOORS FAILING TO LOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Lock relay output circuit short to ground
- Body control module - lock relay open
