Driver Door Fails to Lock From Any Switch

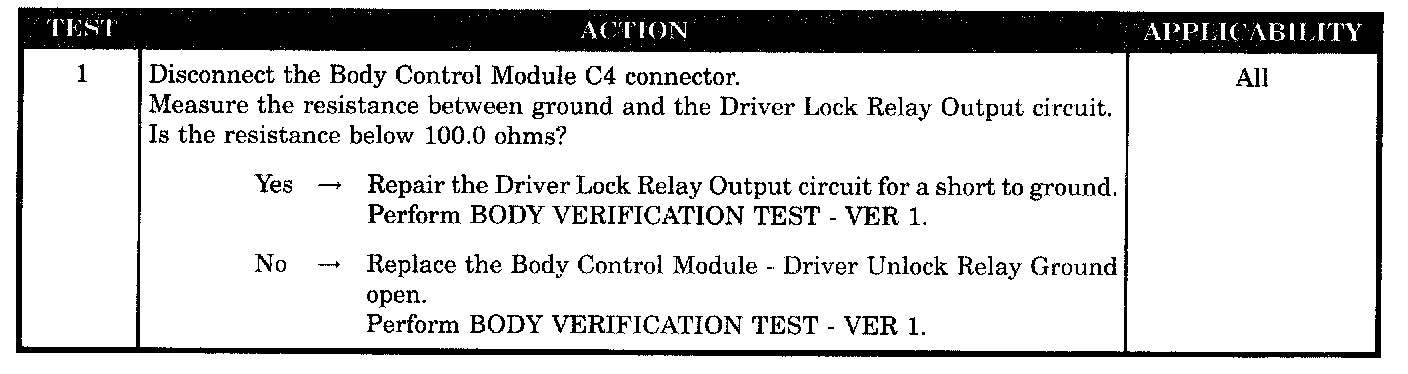

Test 1:






SYMPTOM
DRIVER DOOR FAILS TO LOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Driver lock relay output short to ground
- Body control module - driver unlock relay ground open
