Headlamps Fail to Flash With Alarm Tripped (If Enabled)

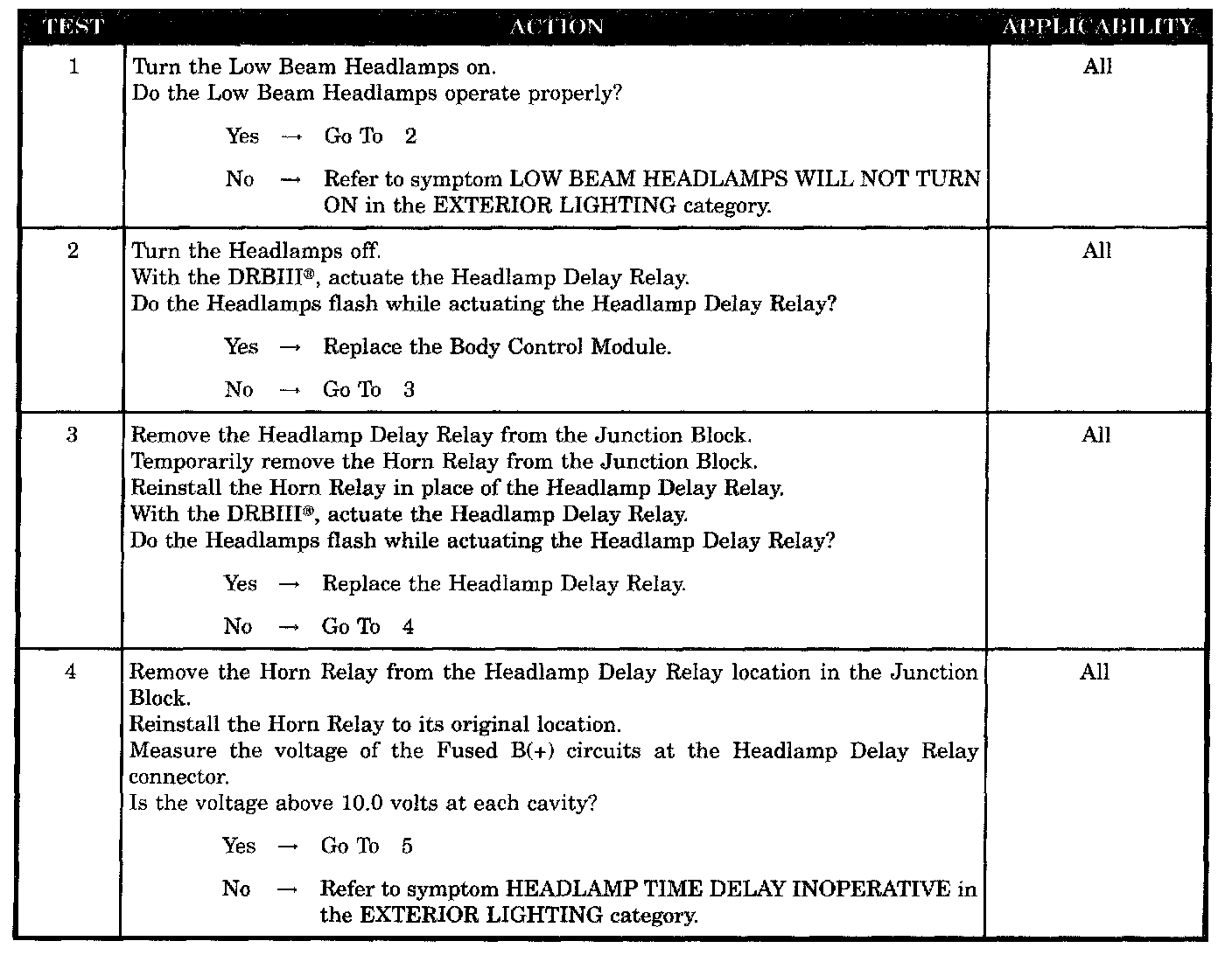

Test 1 - 4:

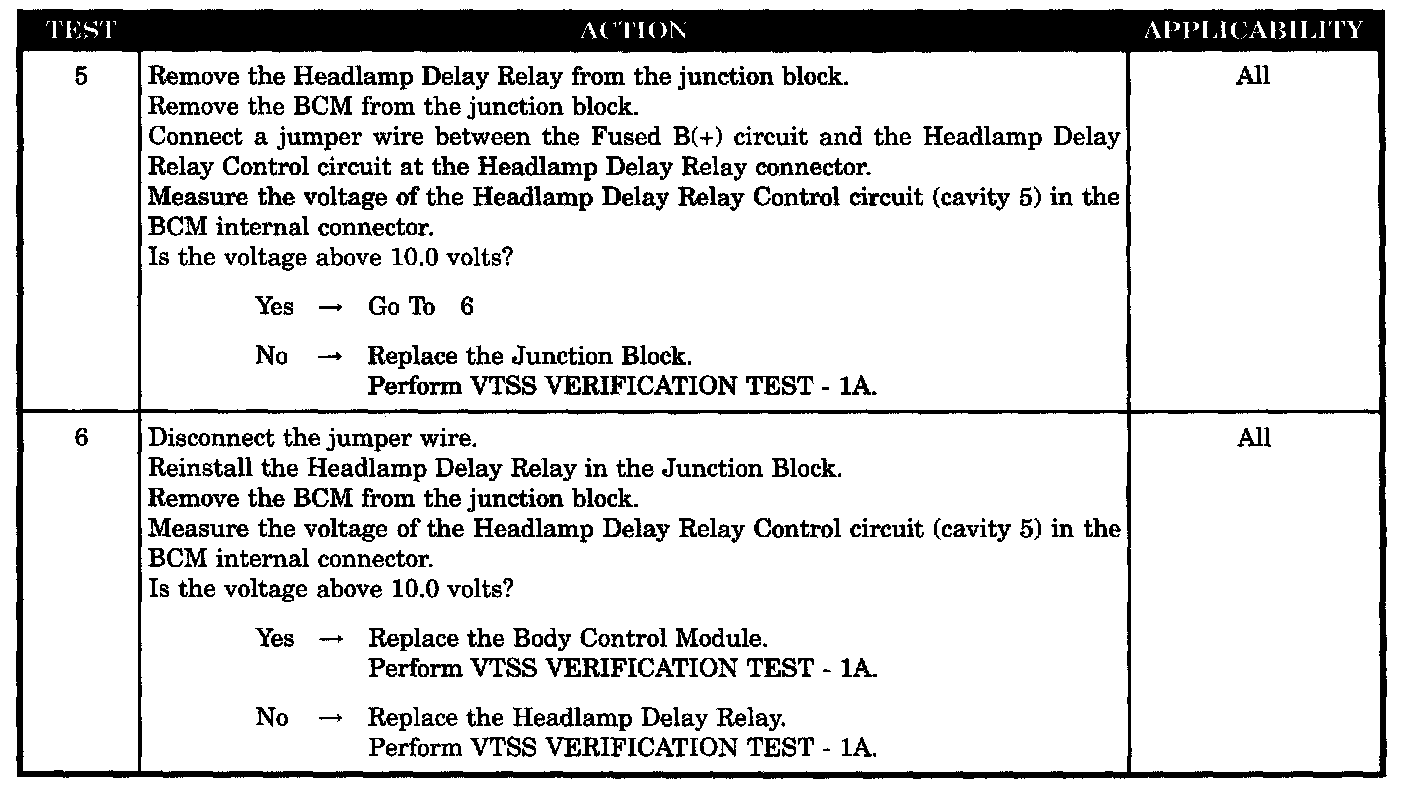

Test 5 - 6:

SYMPTOM
HEADLAMPS INOPERATIVE WITH ALARM TRIPPED (IF ENABLED)

POSSIBLE CAUSES
- Low beam headlamps inoperative
- Body control module internal malfunction
- Body control module internal malfunction
- Headlamp delay relay
- Junction block - open fused B(+) circuit
- Junction block - open headlamp delay relay control circuit
- Headlamp delay relay
