Alignment Specifications

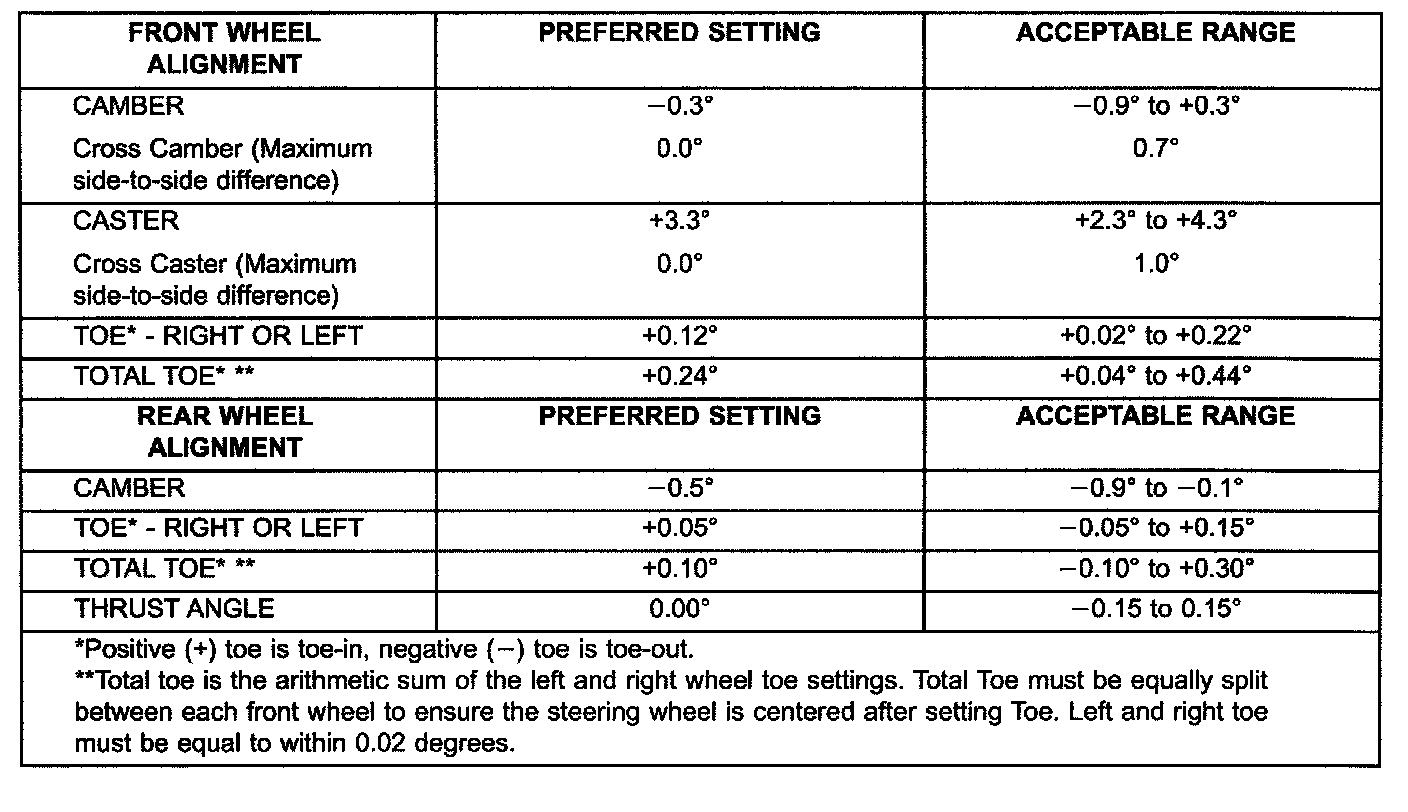

Wheel Alignment Specifications:






WHEEL ALIGNMENT

NOTE: All wheel alignments are to be set with the vehicle at its proper curb height.

NOTE: All specifications are given in degrees.
