Powertrain Control Module (Next Generation Controller) Connector End View (C2) - Except Coupe

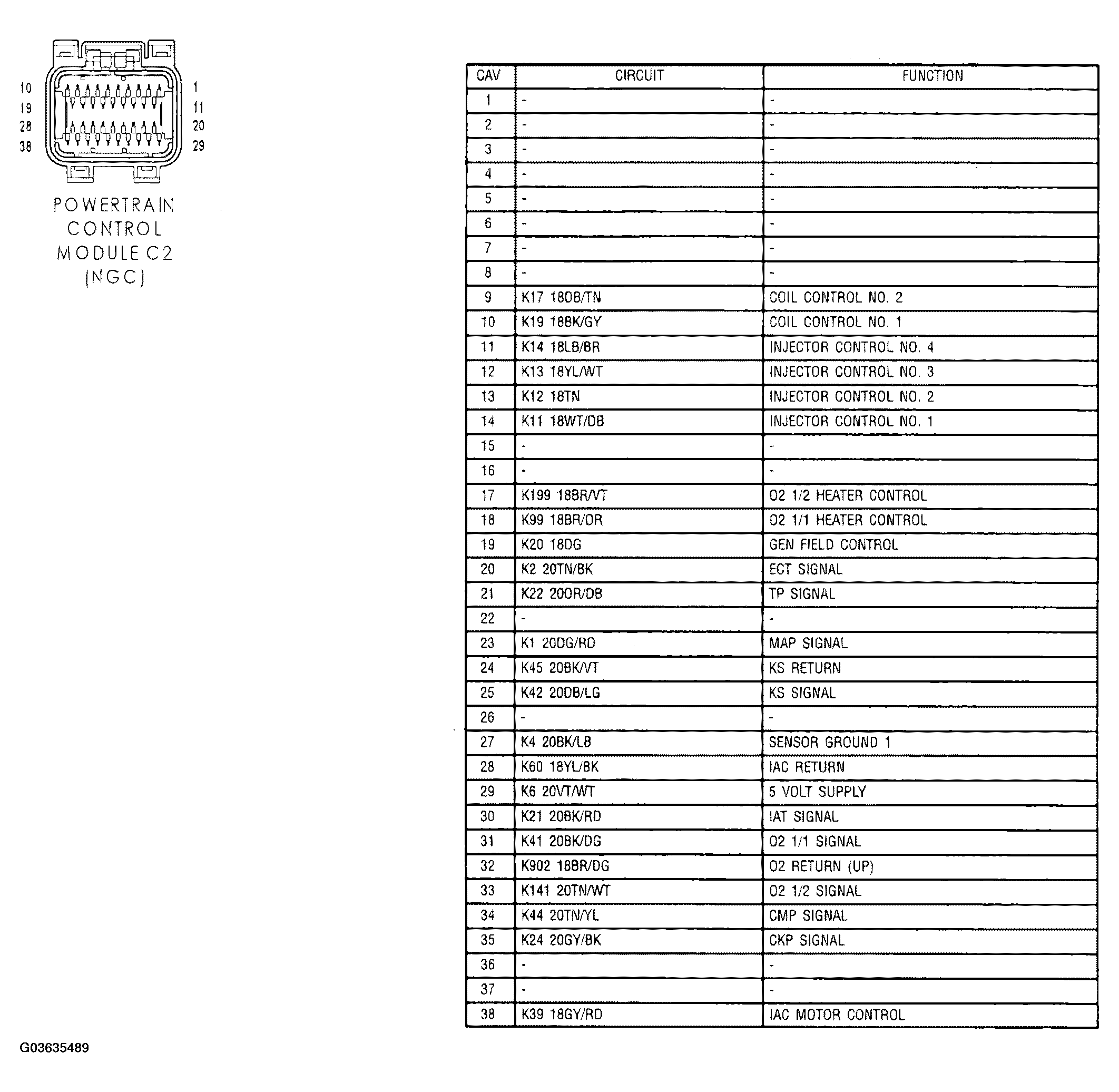

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C2) - Except Coupe
G03635489Courtesy of DAIMLERCHRYSLER CORP.
