Right Speed Control Switch Connector End View - Except Coupe

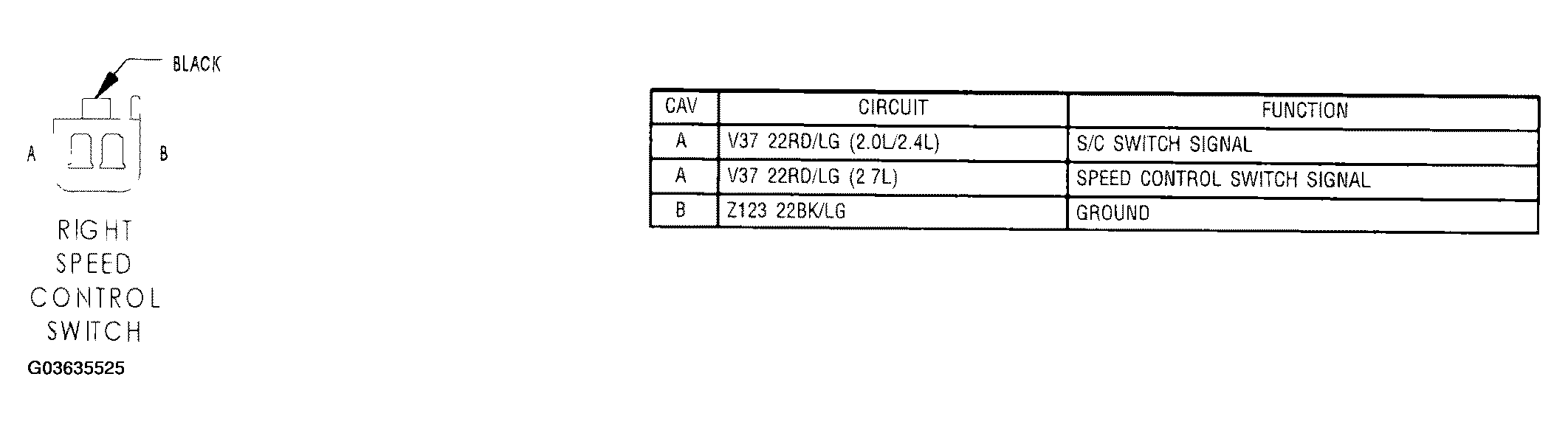

Fig 1: Right Speed Control Switch Connector End View - Except Coupe
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
