Front Wiper Module: Installation

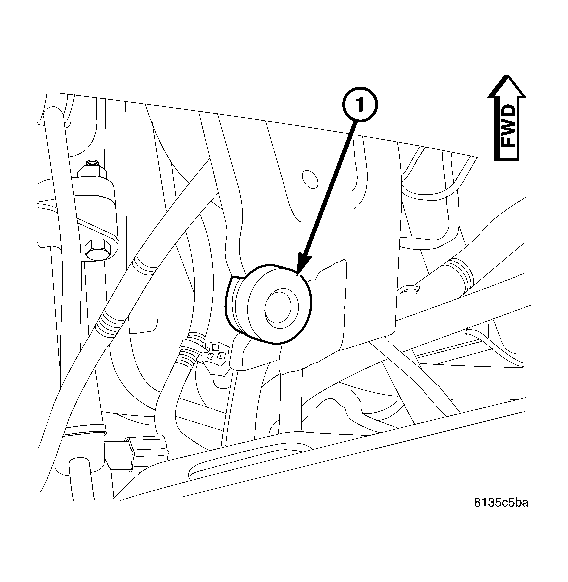

Fig 1: Grommet

Courtesy of DAIMLERCHRYSLER CORP.

Inspect the grommet (1) that the wiper motor sits in. If cracked, brittle, or damaged, replace the grommet (1).

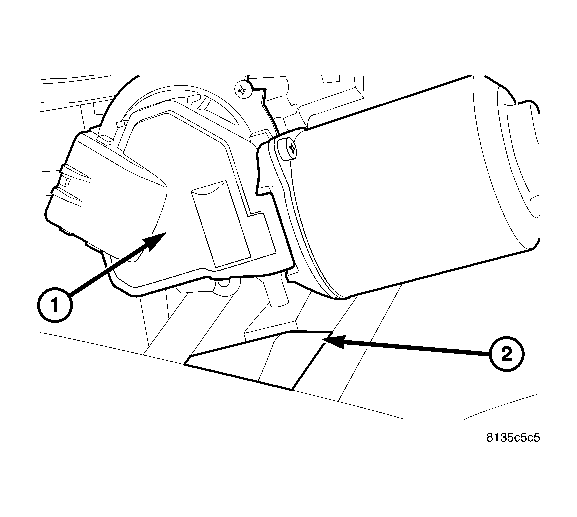

Fig 2: Wiper Motor
Courtesy of DAIMLERCHRYSLER CORP.
While positioning the wiper module in its mounting location, make sure that the dowel on the bottom of the wiper motor (1) slides into the mounting grommet (2) correctly.

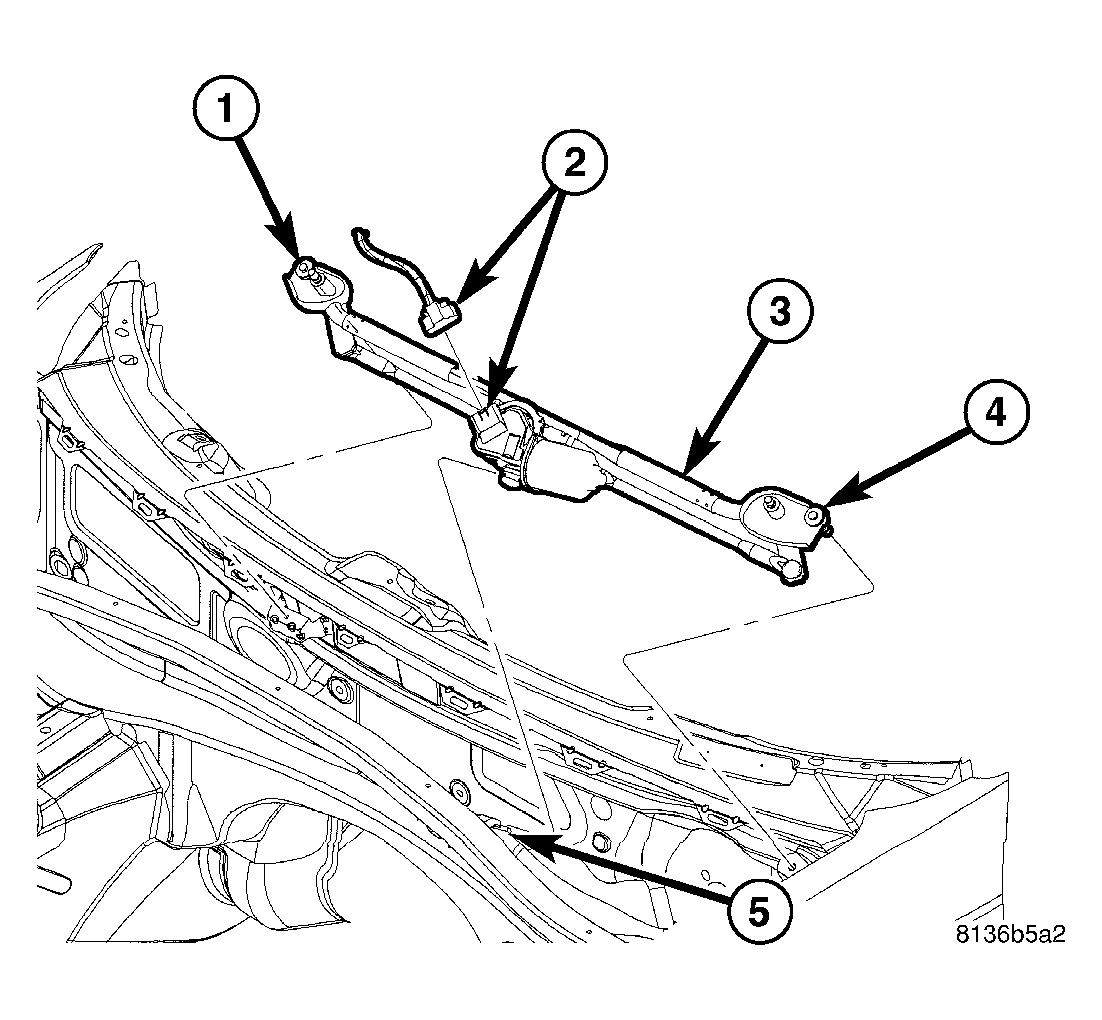

Fig 3: Removing/Installing Wiper Module
Courtesy of DAIMLERCHRYSLER CORP.
Install the two retaining bolts (1 and 4). Torque bolts to 8 N.m (70 in. lbs.).

Fig 4: Wiper Motor Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.
Connect the wiper motor electrical connector (1).

Fig 5: COWL PANEL
Courtesy of DAIMLERCHRYSLER CORP.
Install the cowl panel (1) (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .

Fig 6: Removing/Installing Front Wiper Arms
Courtesy of DAIMLERCHRYSLER CORP.
Install the wiper arms (1) and (2) (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION) . Torque nuts to 18 N.m (150 in. lbs.).
Connect the battery negative cable.
