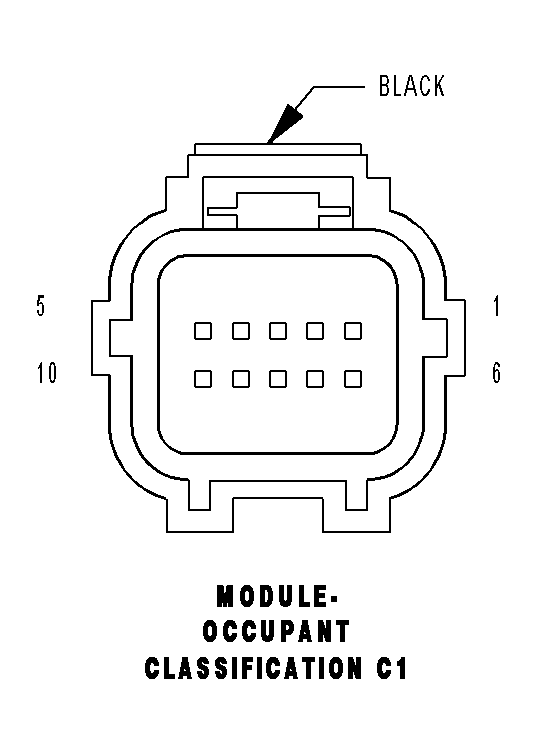

Occupant Classification Module Connector End View (C1)
MODULE-OCCUPANT CLASSIFICATION C1 - BLACK 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A106 20LB/RD | FUSED B(+) |
| 2 | F201 20PK/OR | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 3 | - | - |
| 4 | D55 20WT/OR | CAN B BUS (+) |
| 5 | D54 20WT | CAN B BUS (-) |
| 6 | - | - |
| 7 | R263 20LB/VT (EXCEPT EXPORT) | DRIVER SEAT POSITION SENSOR VOLTAGE |
| 8 | - | - |
| 9 | R261 20LB/WT (EXCEPT EXPORT) | DRIVER SEAT POSITION SENSOR DATA |
| 10 | Z911 18BK/WT | GROUND |
