Circuit Schematic

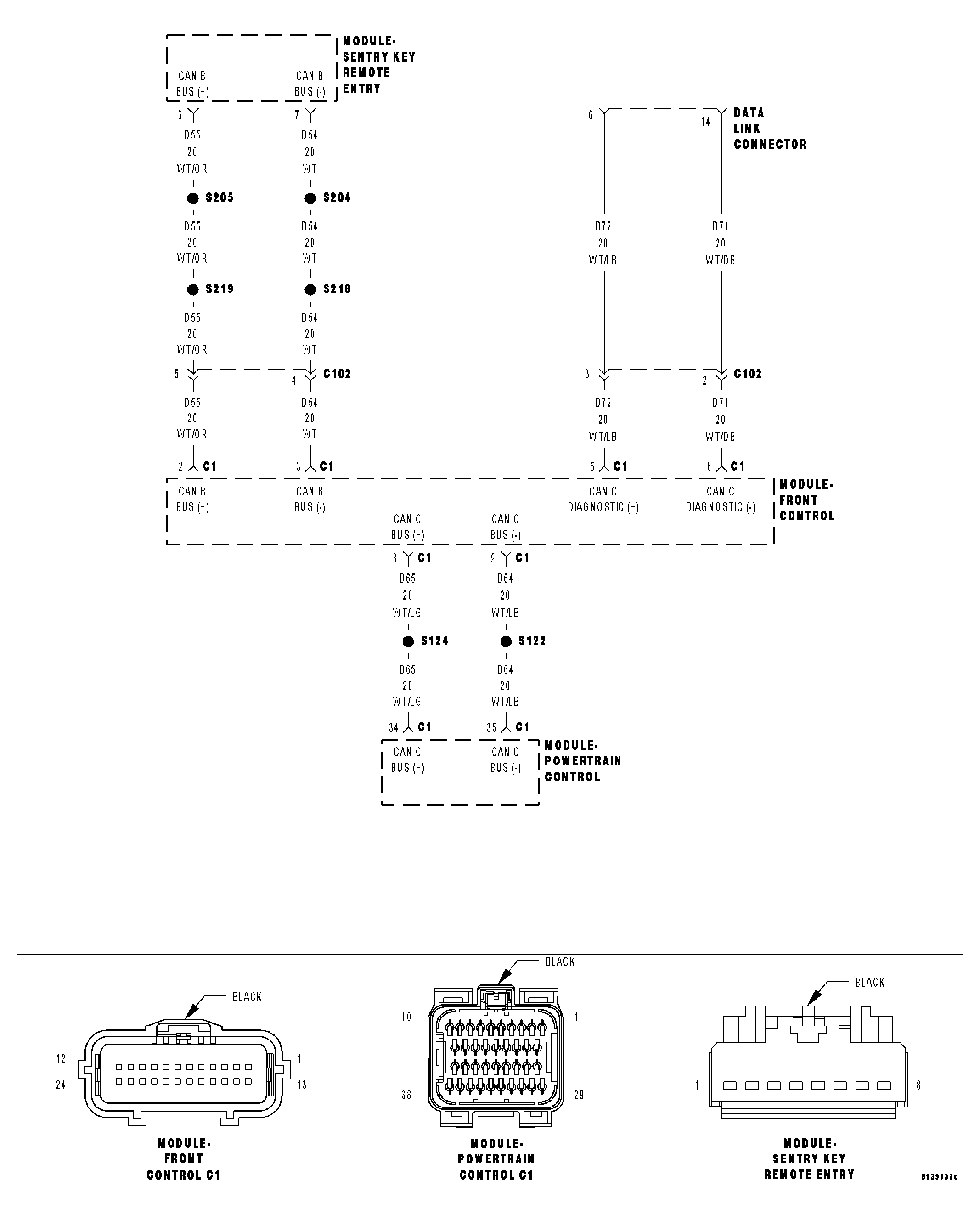

Fig 1: Front Control Module & Sentry Key Remote Entry Module Communication Circuit Schematic
GC0015207Courtesy of DAIMLERCHRYSLER CORP.
