Fuel Injection - Diesel: Sensor-Temperature/Pressure-Map: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: INTAKE/MAP SENSOR

Courtesy of DAIMLERCHRYSLER CORP.

1 - TOP OF INTAKE MANIFOLD

2 - IAT/MAP SENSOR

3 - ELEC. CONNECTOR

4 - MOUNTING BOLTS (2)

The combination, dual function Intake Manifold Air Temperature Sensor/MAP (IAT/MAP) sensor is installed (2) into the top of the intake manifold. See Fig 1.

Clean area around sensor.
Disconnect electrical connector (3) from IAT/MAP sensor.
Remove two T-15 Torx headed screws (4).
Remove sensor from intake manifold.

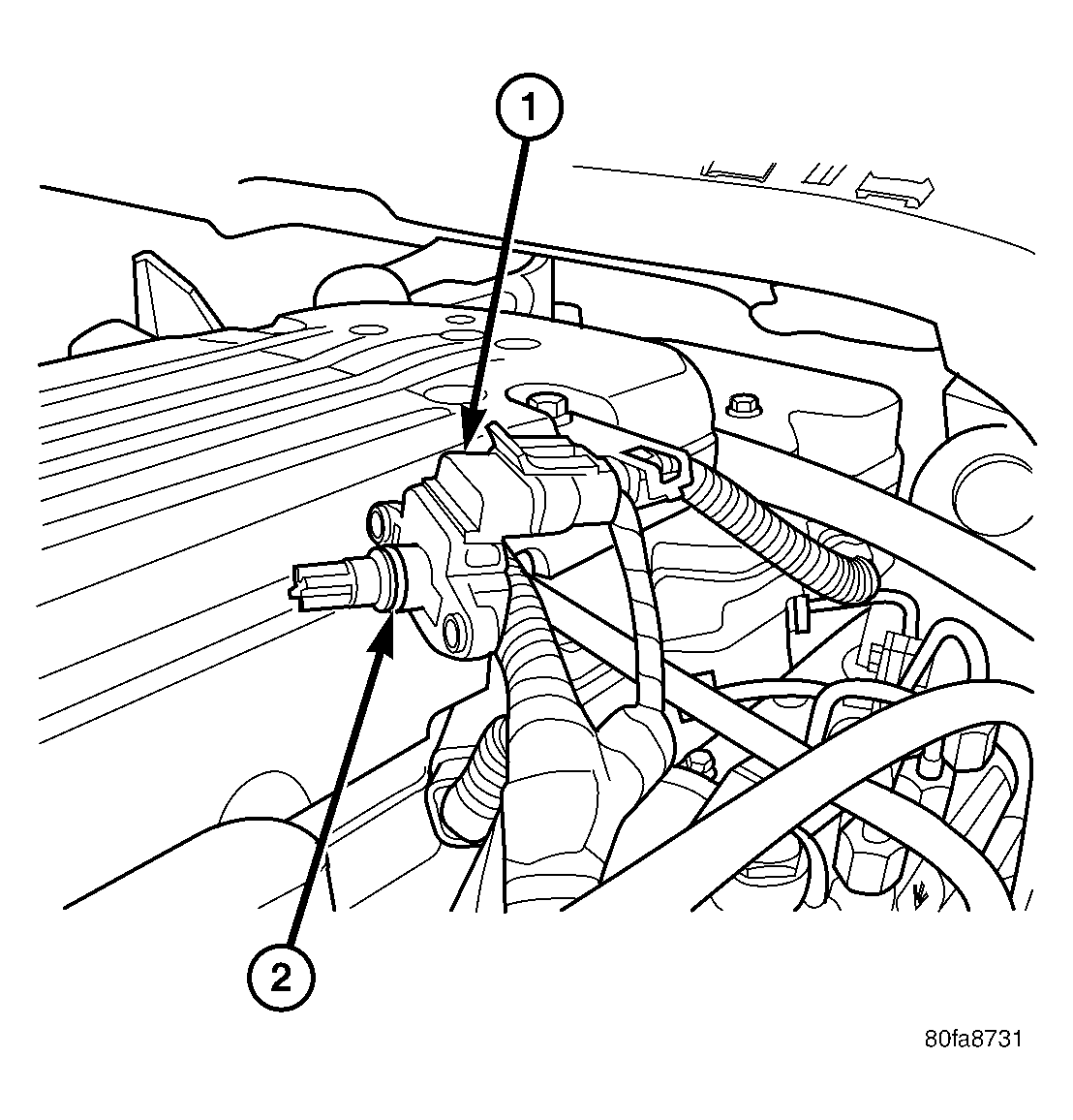

Fig 2: SENSOR O-RING
Courtesy of DAIMLERCHRYSLER CORP.

1 - IAT/MAP SENSOR

2 - O-RING
Check condition of sensor o-ring (2). See Fig 2.
