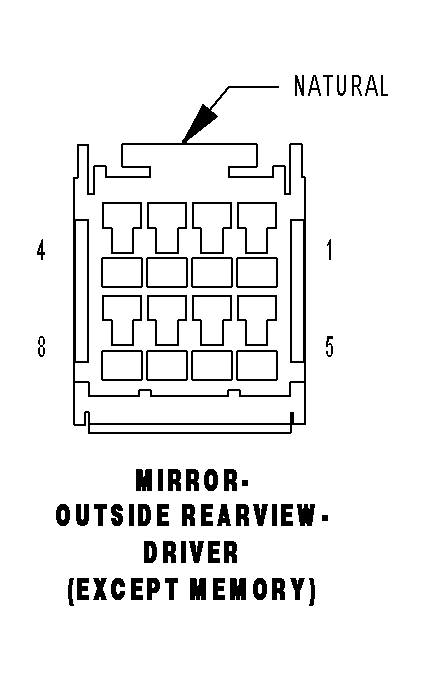

Driver Outside Rearview Mirror (Except Memory) Connector End View
MIRROR-OUTSIDE REARVIEW-DRIVER (EXCEPT MEMORY) - NATURAL 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P71 20TN/DG | DRIVER MIRROR VERTICAL DRIVER |
| 2 | P76 20TN/LB | MIRROR COMMON DRIVER |
| 3 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 4 | C16 20DB/GY | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
| 5 | Z912 20BK/OR | GROUND |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
