Fog/Driving Lamp

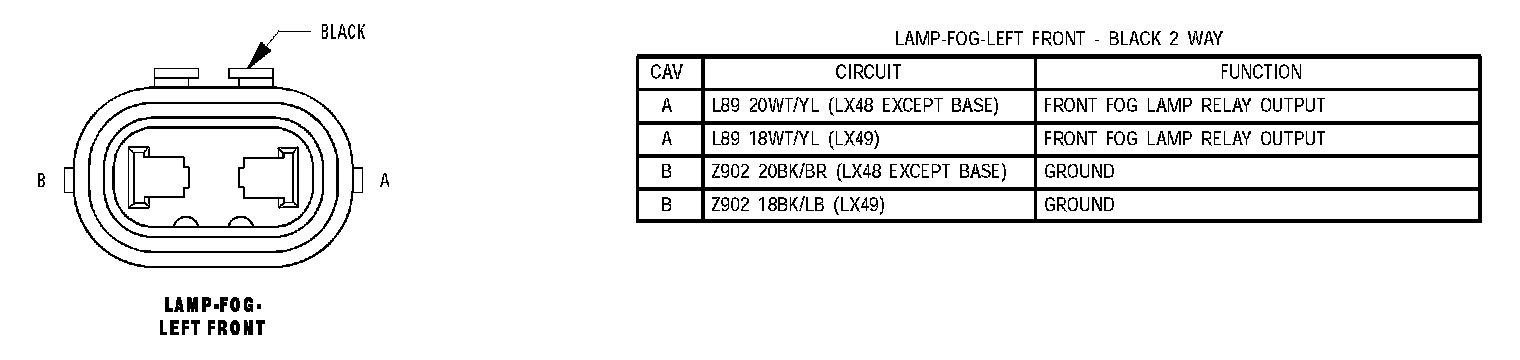

Lamp - Fog - Left Front:

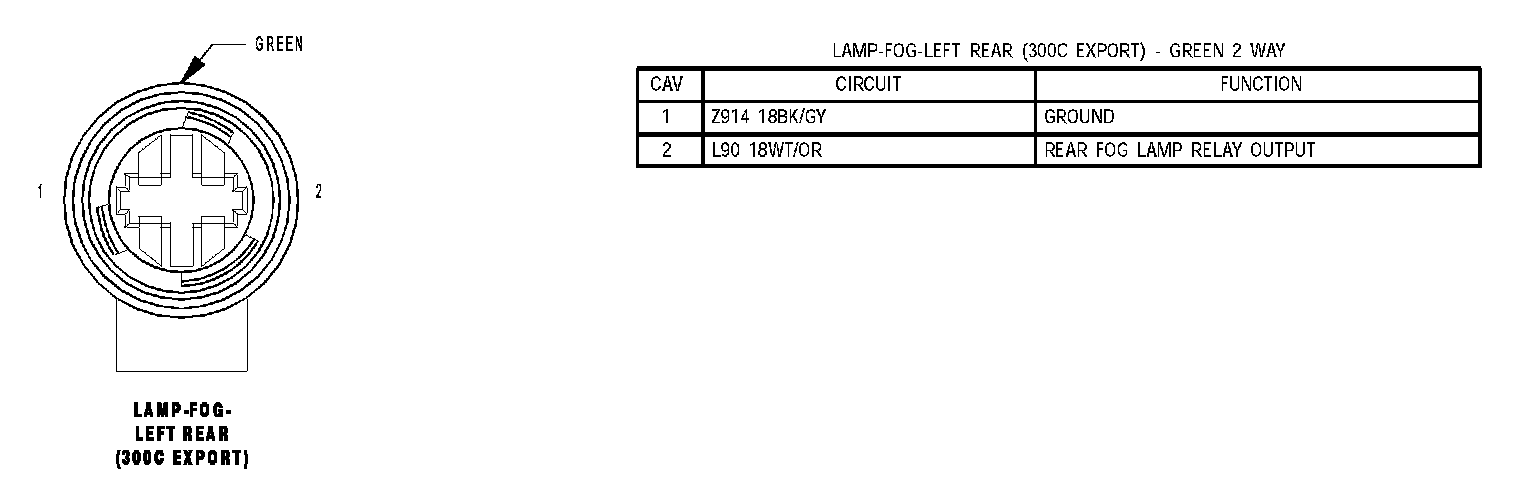

Lamp - Fog - Left Rear (300C Export):

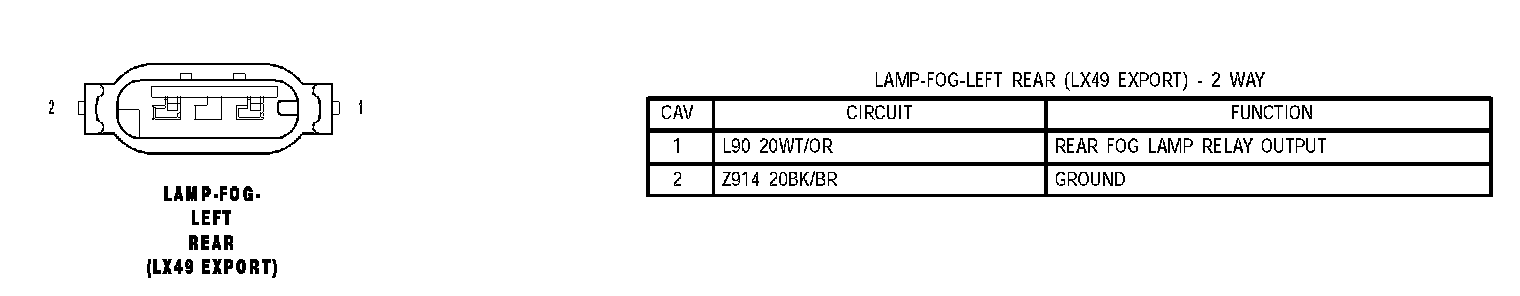

Lamp - Fog - Left Rear (LX48 Export):

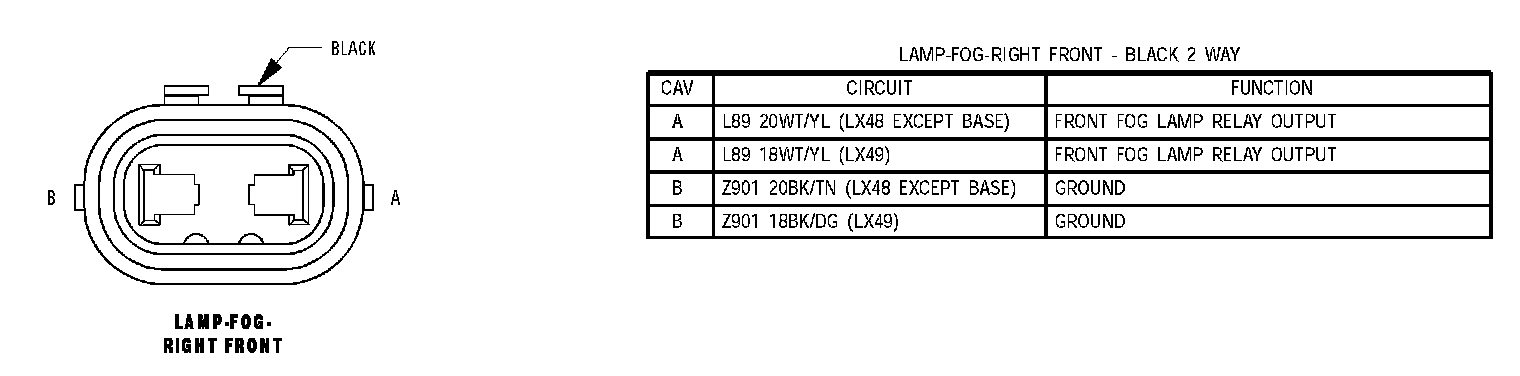

Lamp - Fog - Right Front:

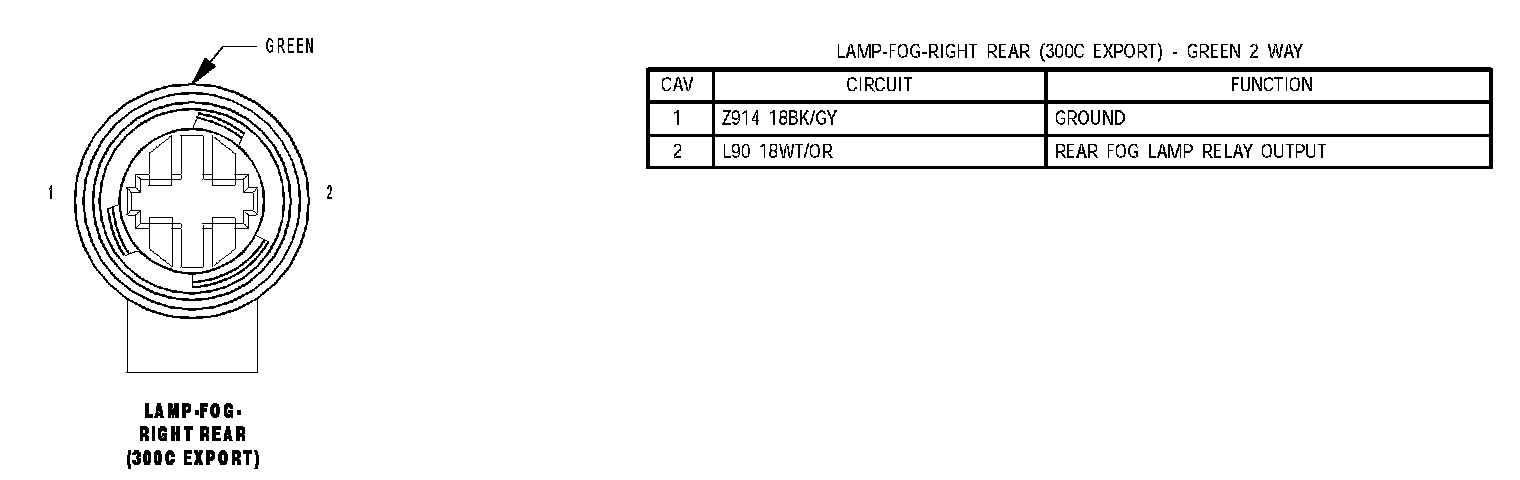

Lamp - Fog - Right Rear (300C Export):

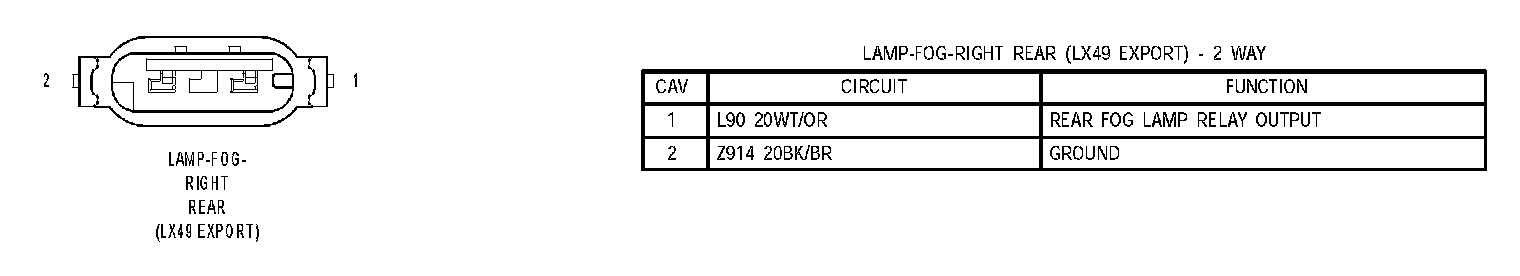

Lamp - Fog - Right Rear (LX49 Export):
