Removal - Remote Keyless Entry Relay

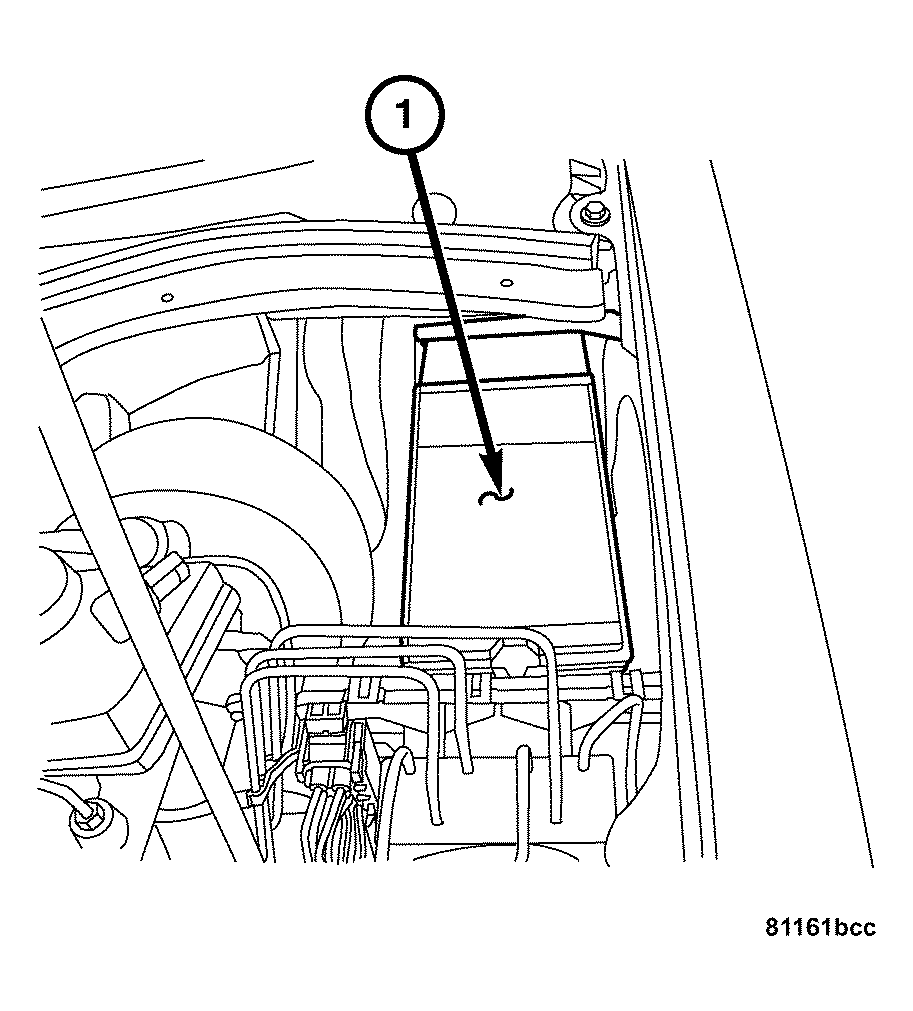

Fig 1: Identifying Underhood Accessory Fuse Block Lid

Courtesy of DAIMLERCHRYSLER CORP.

Remove the underhood accessory fuse block lid (1).

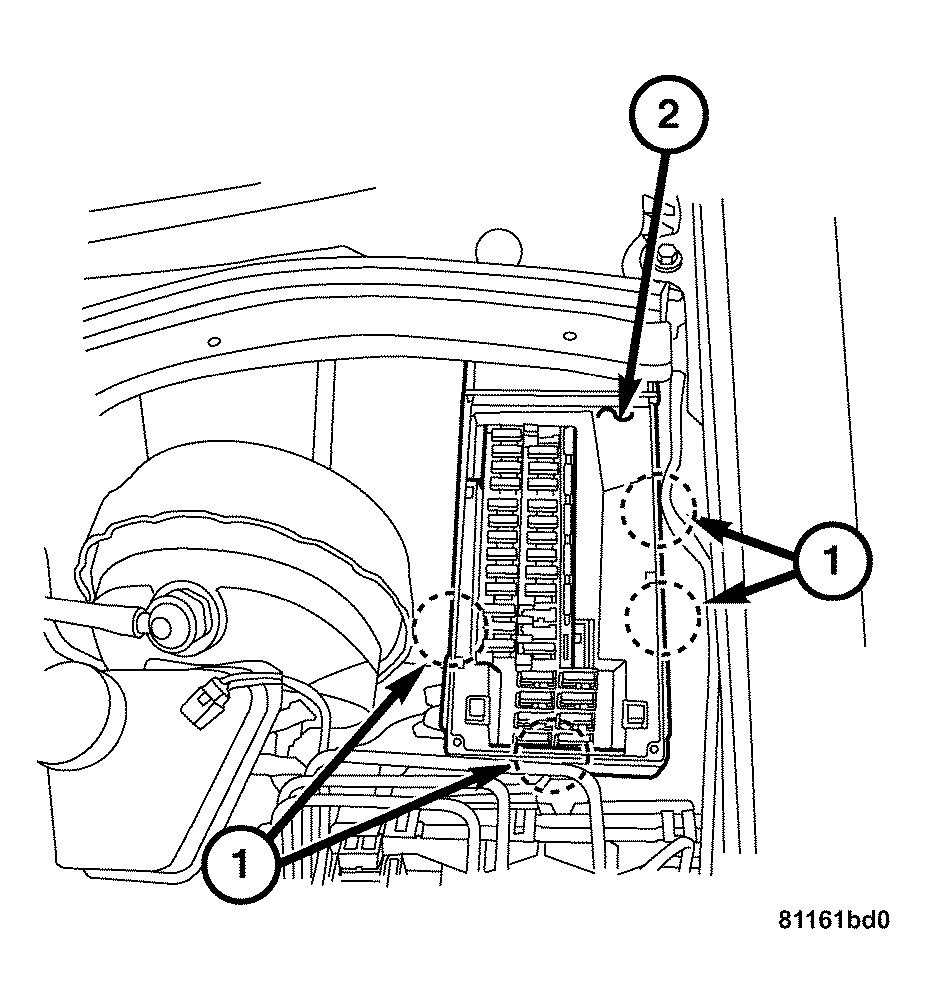

Fig 2: Removing/Installing Underhood Accessory Fuse Block Cover Panel
Courtesy of DAIMLERCHRYSLER CORP.
Carefully release the four tabs (1) to remove the underhood accessory fuse block cover panel (2).

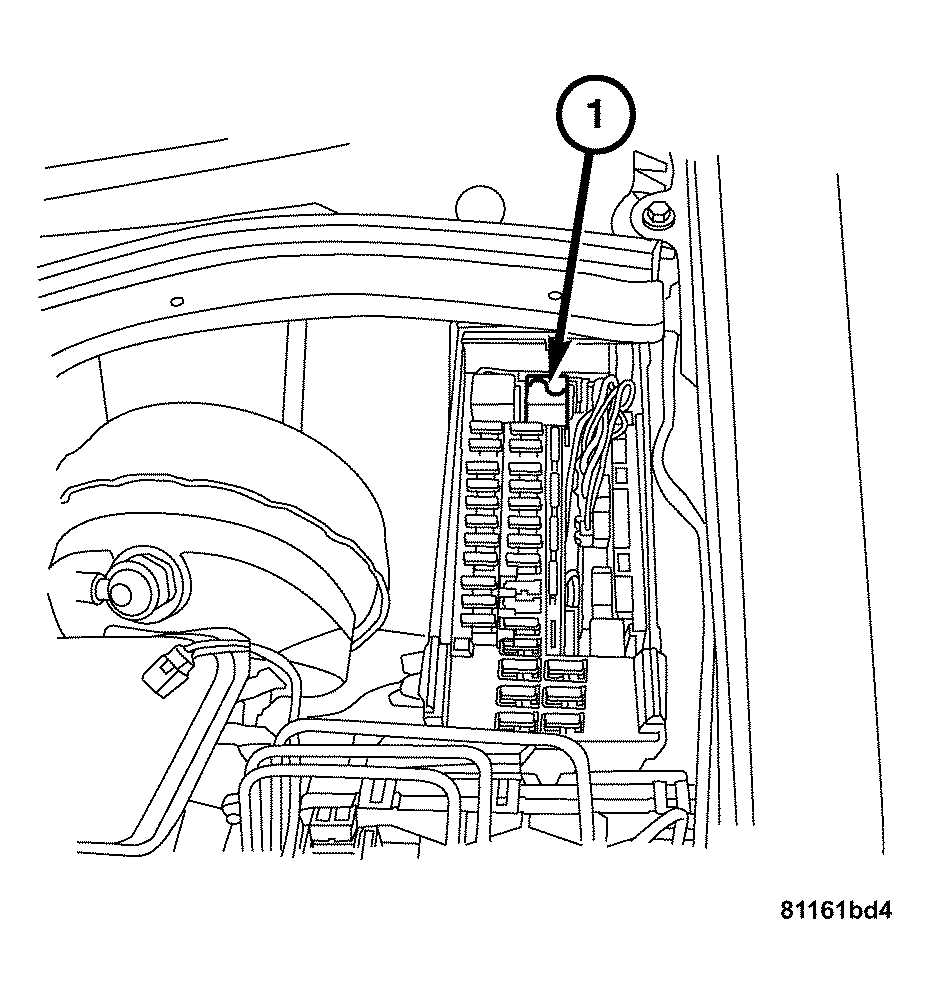

Fig 3: Locating Remote Keyless Entry Relay
Courtesy of DAIMLERCHRYSLER CORP.
Remove the remote keyless entry relay (1).
