Body Control Module Internal Failure: Notes

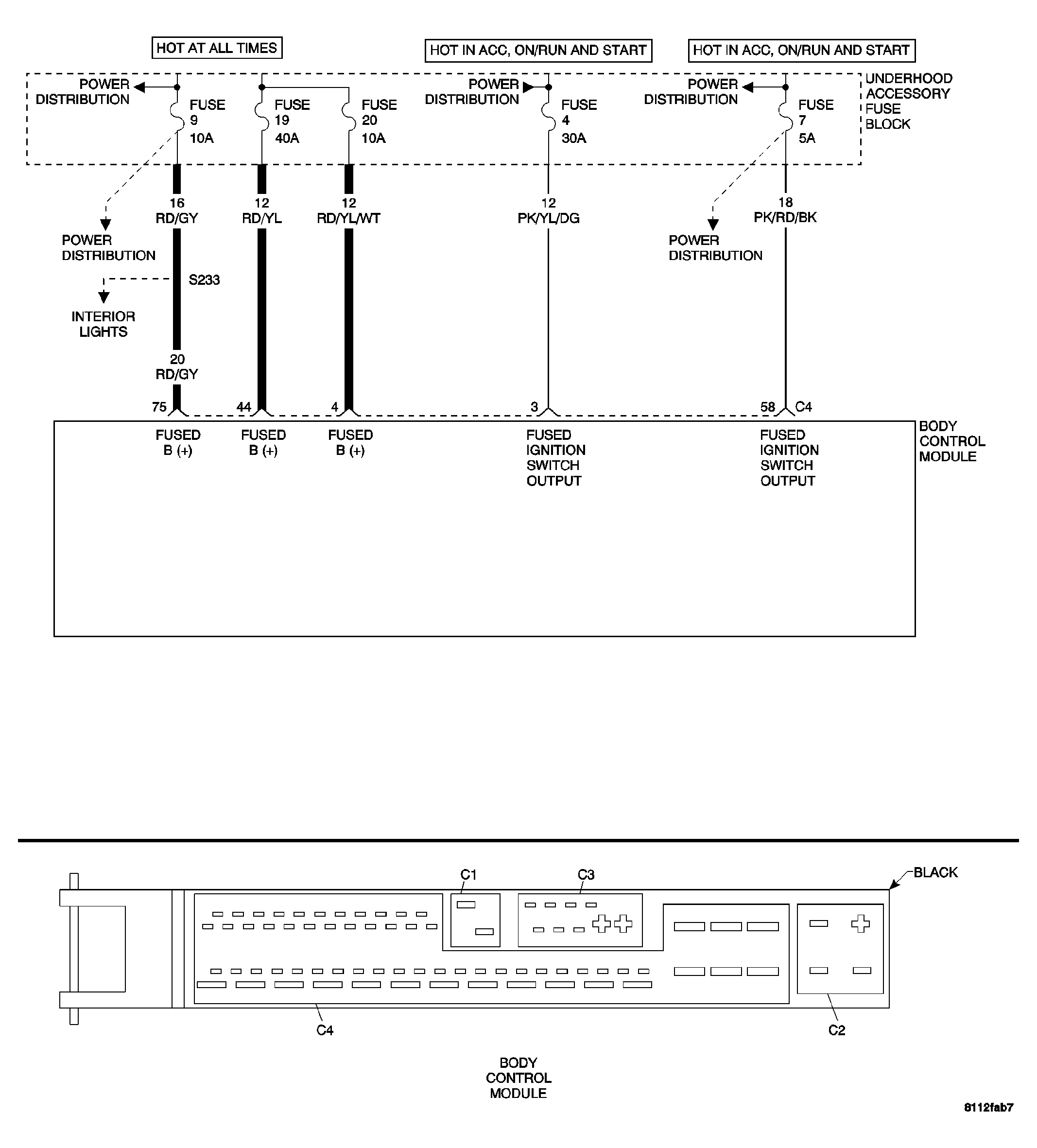

Fig 1: Body Control Module Circuit Schematic

GC0035435

Courtesy of DAIMLERCHRYSLER CORP.
