Body Control Module: Installation: Notes

Fig 1: Removing/Installing BCM

Courtesy of DAIMLERCHRYSLER CORP.

Connect the electrical connectors (1) to the body control module and push the metal body control module connector lock down to lock the connector assembly. Then, connect the windshield wiper electrical connector to the body control module and slide the grey windshield wiper connector lock to the left to lock it.

Fig 2: Identifying Metal Body Control Module Retaining Clip
Courtesy of DAIMLERCHRYSLER CORP.
Push the body control module into the control module box until the metal clip attaches to the body control module.

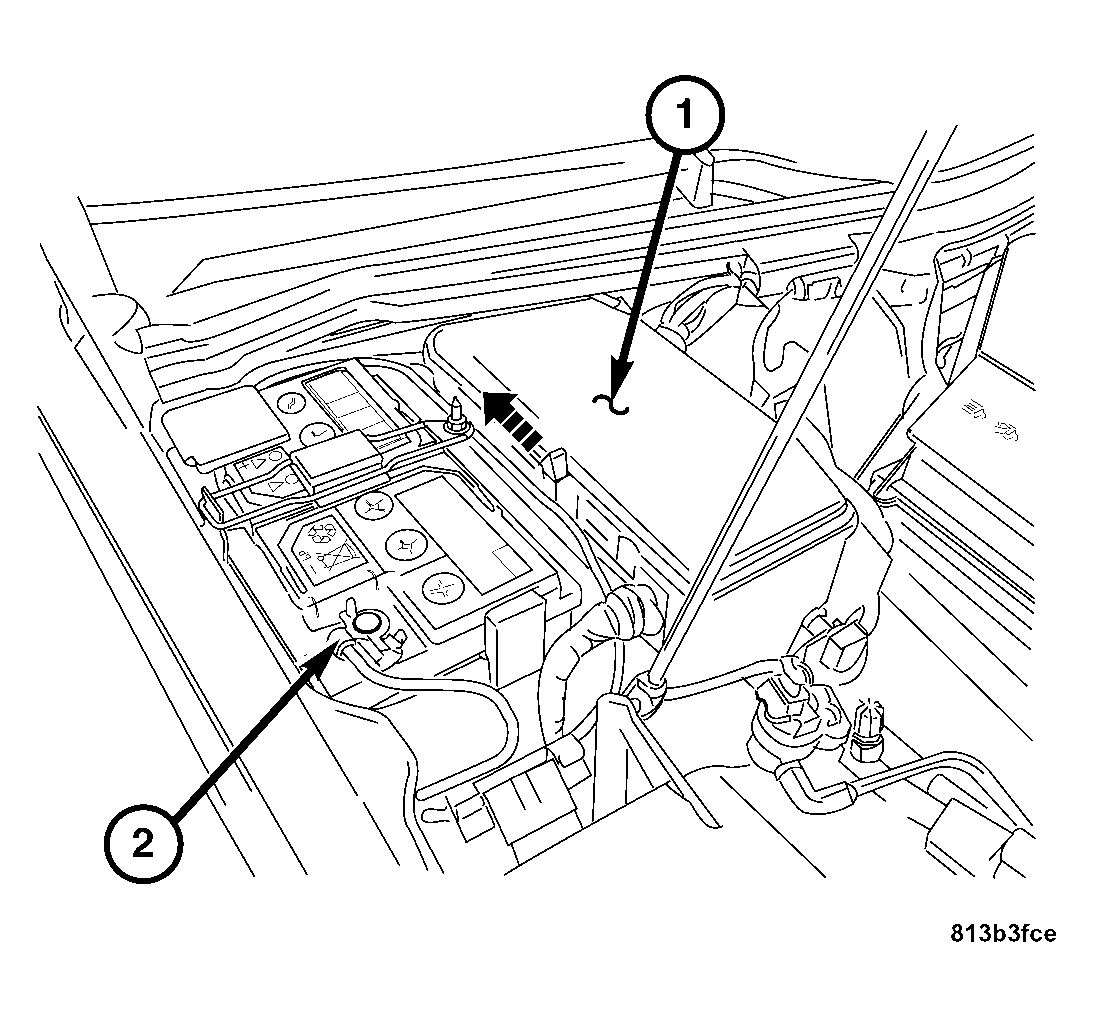

Fig 3: Identifying Plastic Control Module Box Cover & Negative Battery Cable
Courtesy of DAIMLERCHRYSLER CORP.
Install the plastic control module box cover (1) and slide the clips rearward to lock the cover.
Connect the negative battery cable (2).
