Body Control Module: Removal: Notes

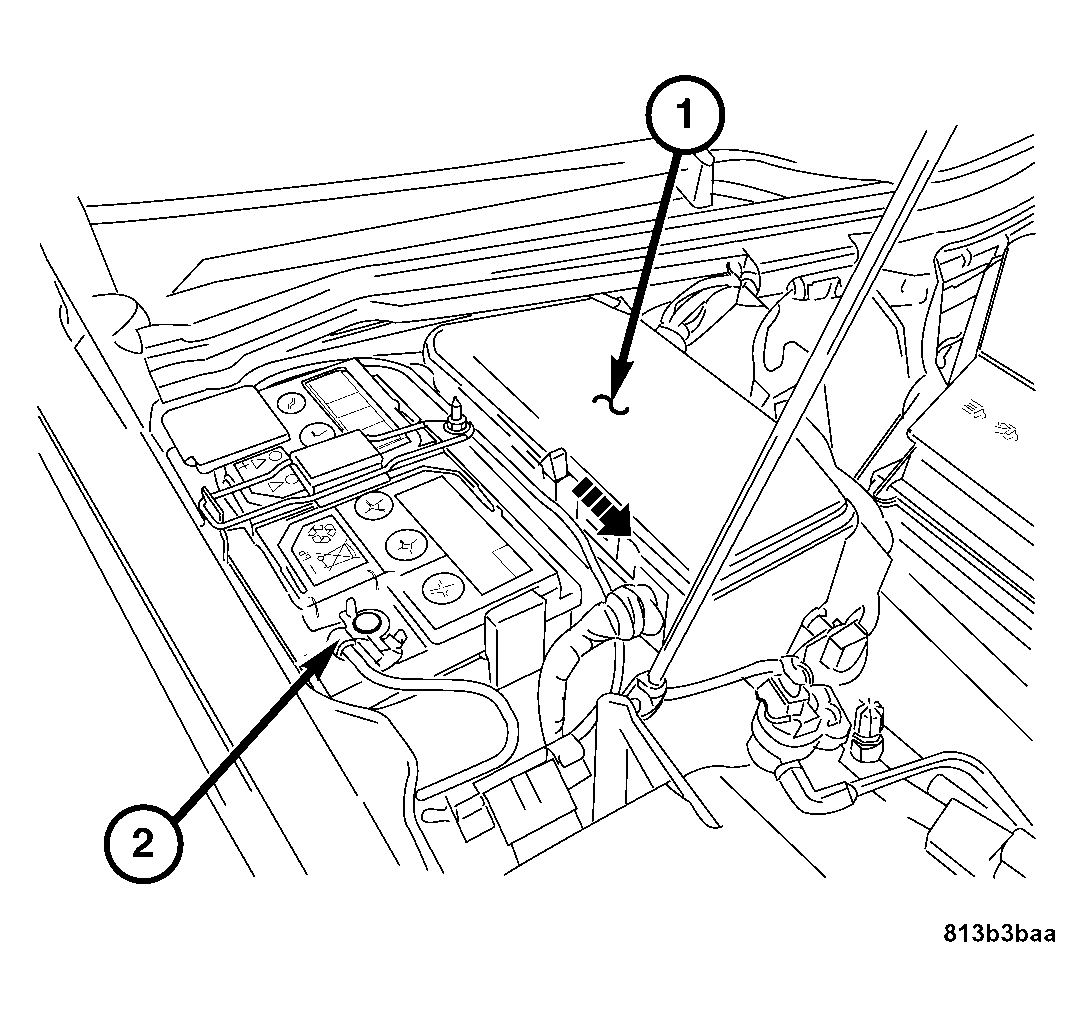

Fig 1: Identifying Plastic Control Module Box Cover & Negative Battery Cable

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable (2).
Slide the clips forward to remove the plastic control module box cover (1).

Fig 2: Identifying Metal Body Control Module Retaining Clip
Courtesy of DAIMLERCHRYSLER CORP.
Holding the metal body control module retaining clip (1) back, pull the body control module up and out of the control module box.

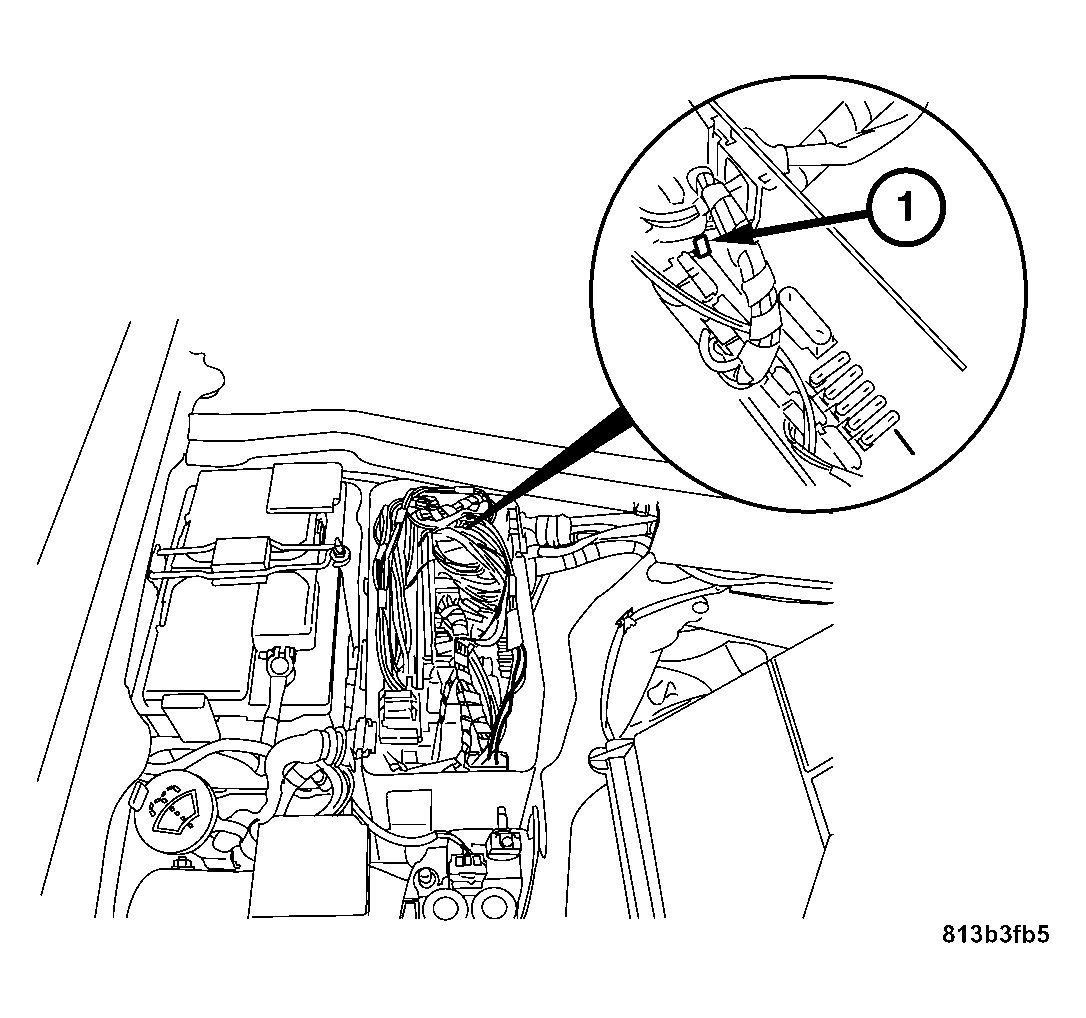

Fig 3: Removing/Installing BCM
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connectors (1) by first sliding the grey windshield wiper connector lock to the right and removing the windshield wiper electrical connector. Then, pull the metal body control module connector lock up to unlock and disconnect the rest of the body control module electrical connectors.
Remove the body control module from the control module box (2).
