Power Top Control Module: Installation

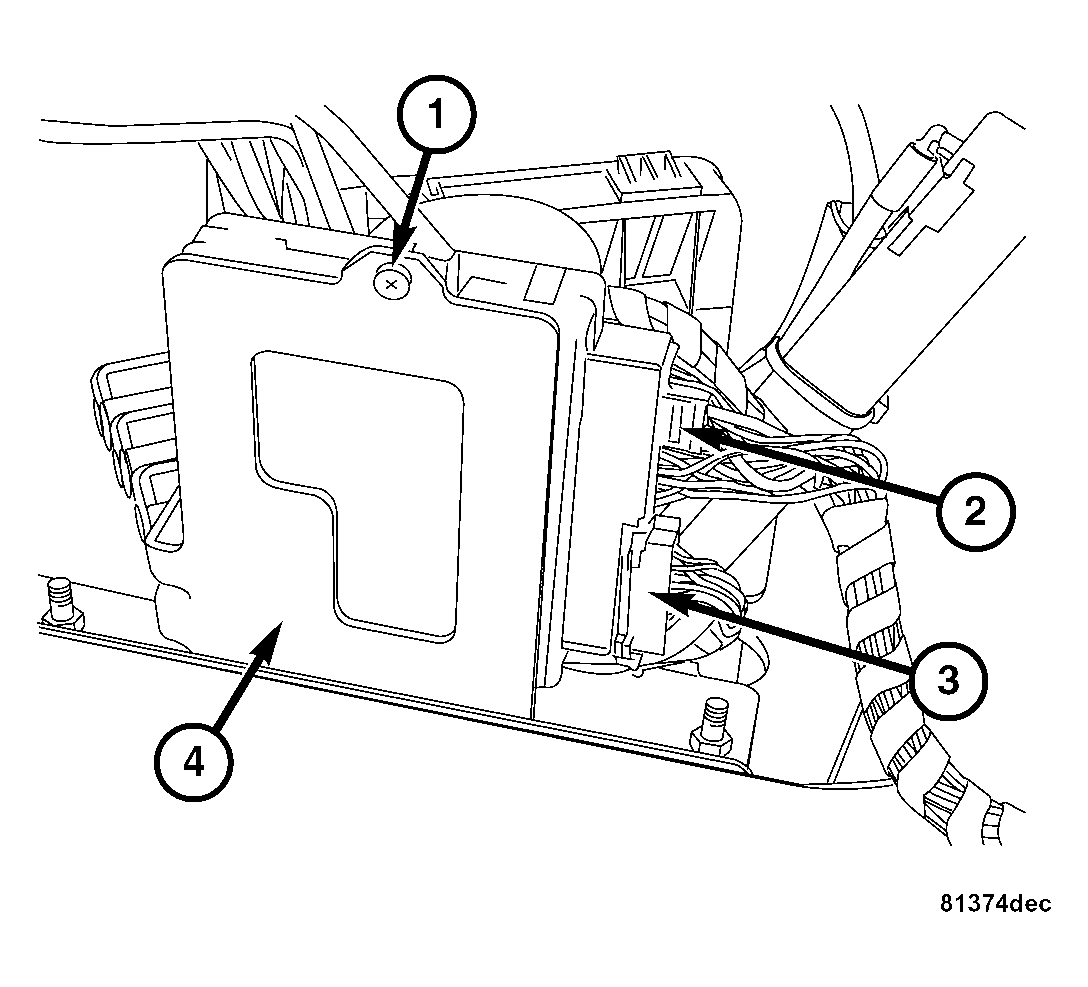

Fig 1: Removing/Installing Power Top Control Module
GC0035013Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the power top control module to the hydraulic pump bracket (4).
  2. Install the power top control module retaining screw (1).
  3. Connect the power top control module harness connectors (2) and (3).

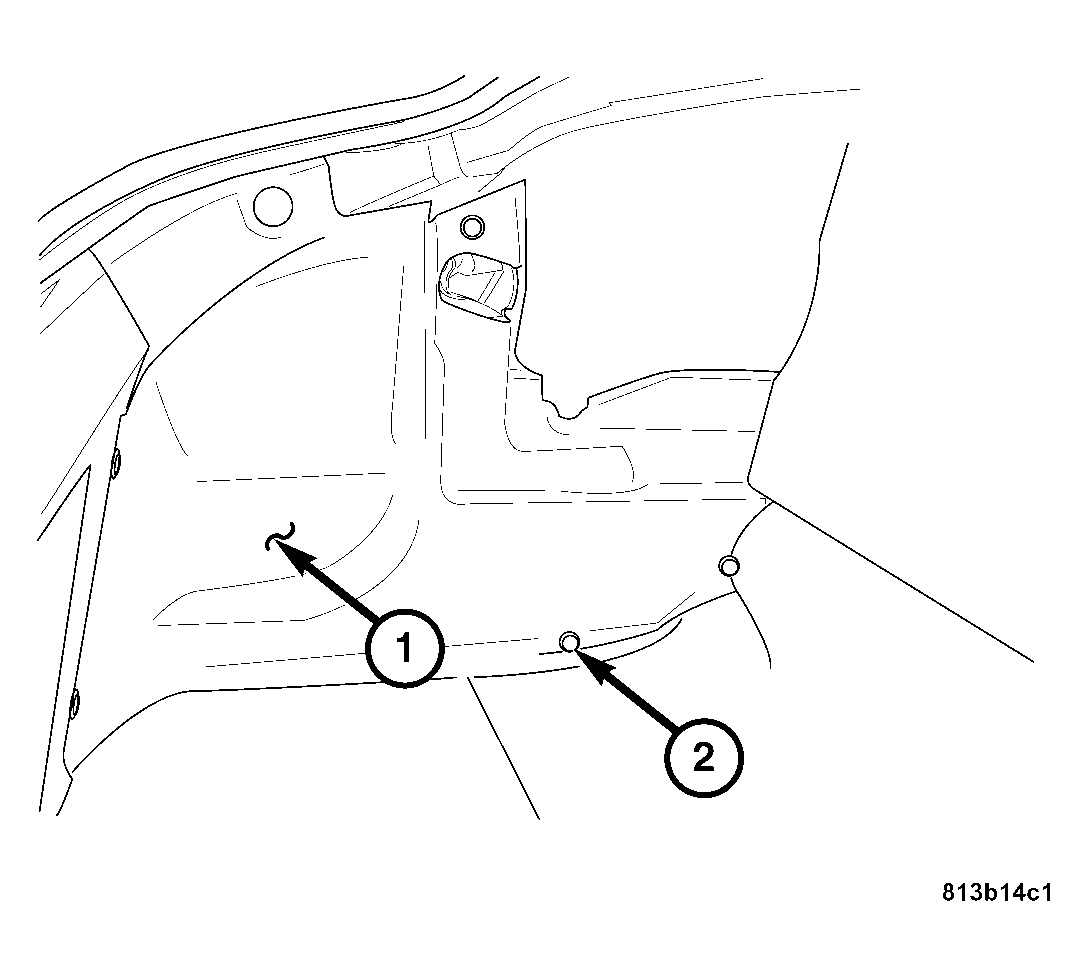

    Fig 2: Identifying Left Trunk Trim Panel & Plastic Retainers
    GC0035014Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the trunk interior trim panel (1).
  5. Install the plastic panel retainers (2).
  6. Connect the negative battery cable.
  7. Perform the Standard Procedure to complete the installation and programing of the new power top control module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/POWER TOP CONTROL MODULE - STANDARD PROCEDURE)
