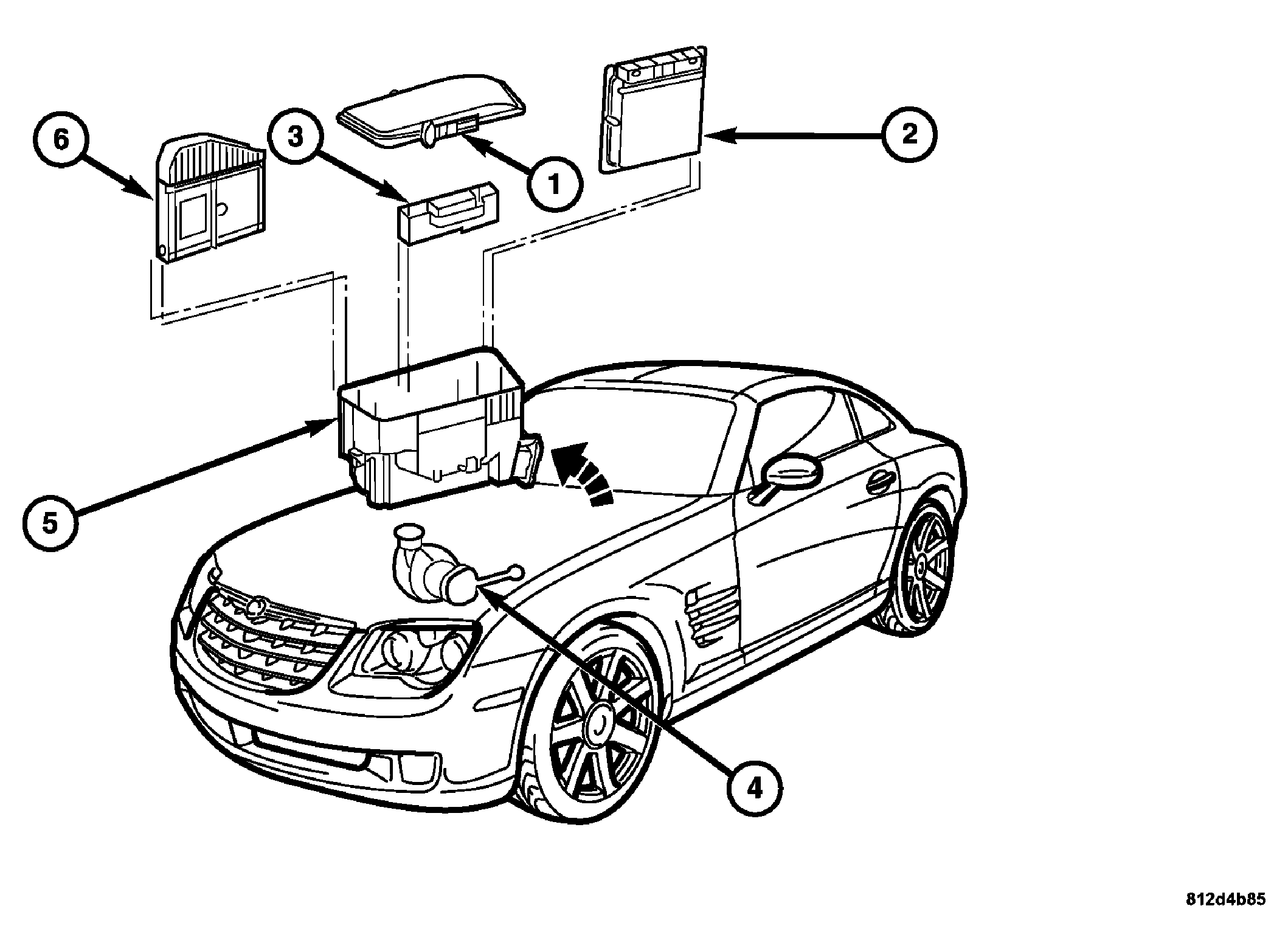

Installation - RHD
Courtesy of DAIMLERCHRYSLER CORP.
- Connect the PCM harness electrical connector to the powertrain control module (2).
- Install the powertrain control module into the control module box (5).
- Install the plastic control module box cover (1) and slide the clips rearward to lock the cover.
- Connect the negative battery cable.
