Powertrain Control Module: Removal: Notes

Fig 1: Identifying Plastic Control Module Box Cover & Negative Battery Cable

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable (2).
Slide the clips forward to remove the plastic control module box cover (1).

Fig 2: Identifying Metal Powertrain Control Module Retaining Clip
Courtesy of DAIMLERCHRYSLER CORP.
Holding the metal powertrain control module retaining clip (1) back, pull the powertrain control module up and out of the control module box.

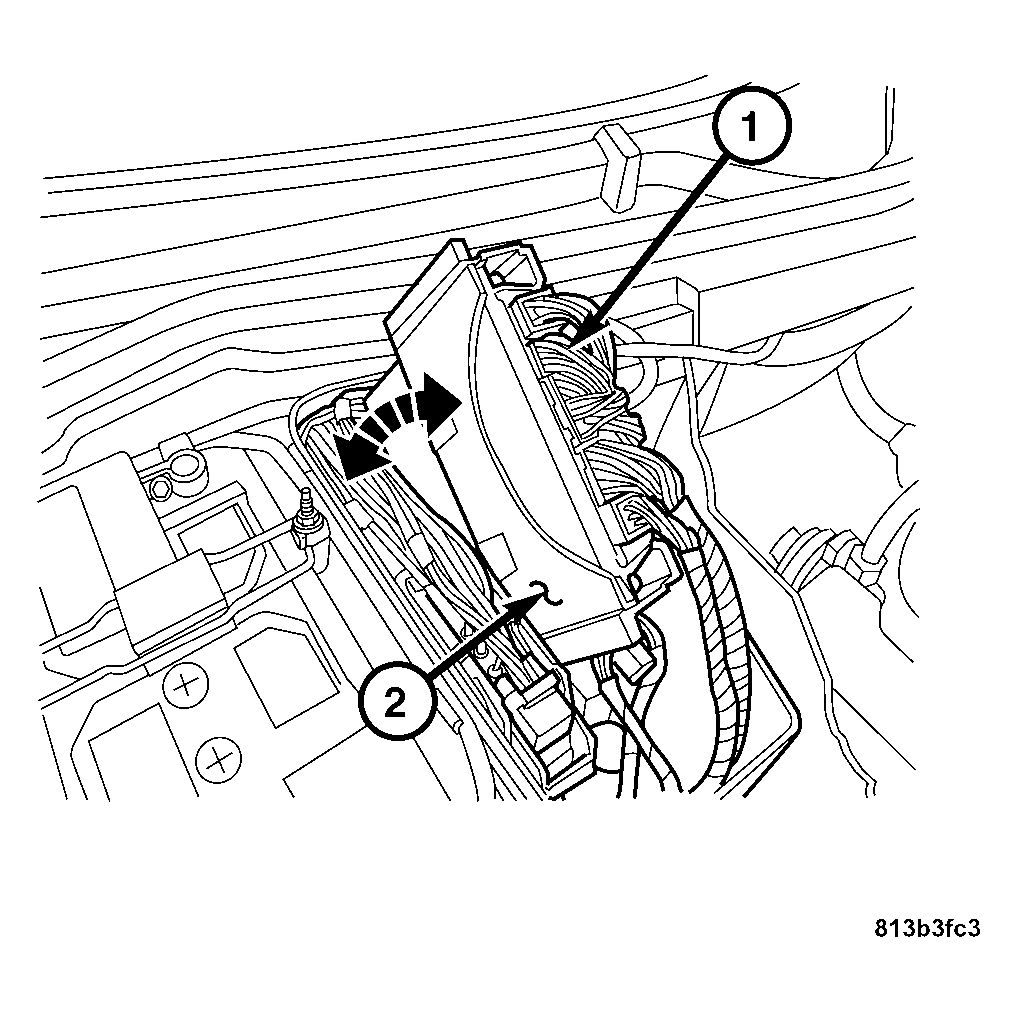

Fig 3: Removing PCM & Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connectors (1) and remove the powertrain control module (2).
