Transmission Control Module: Description

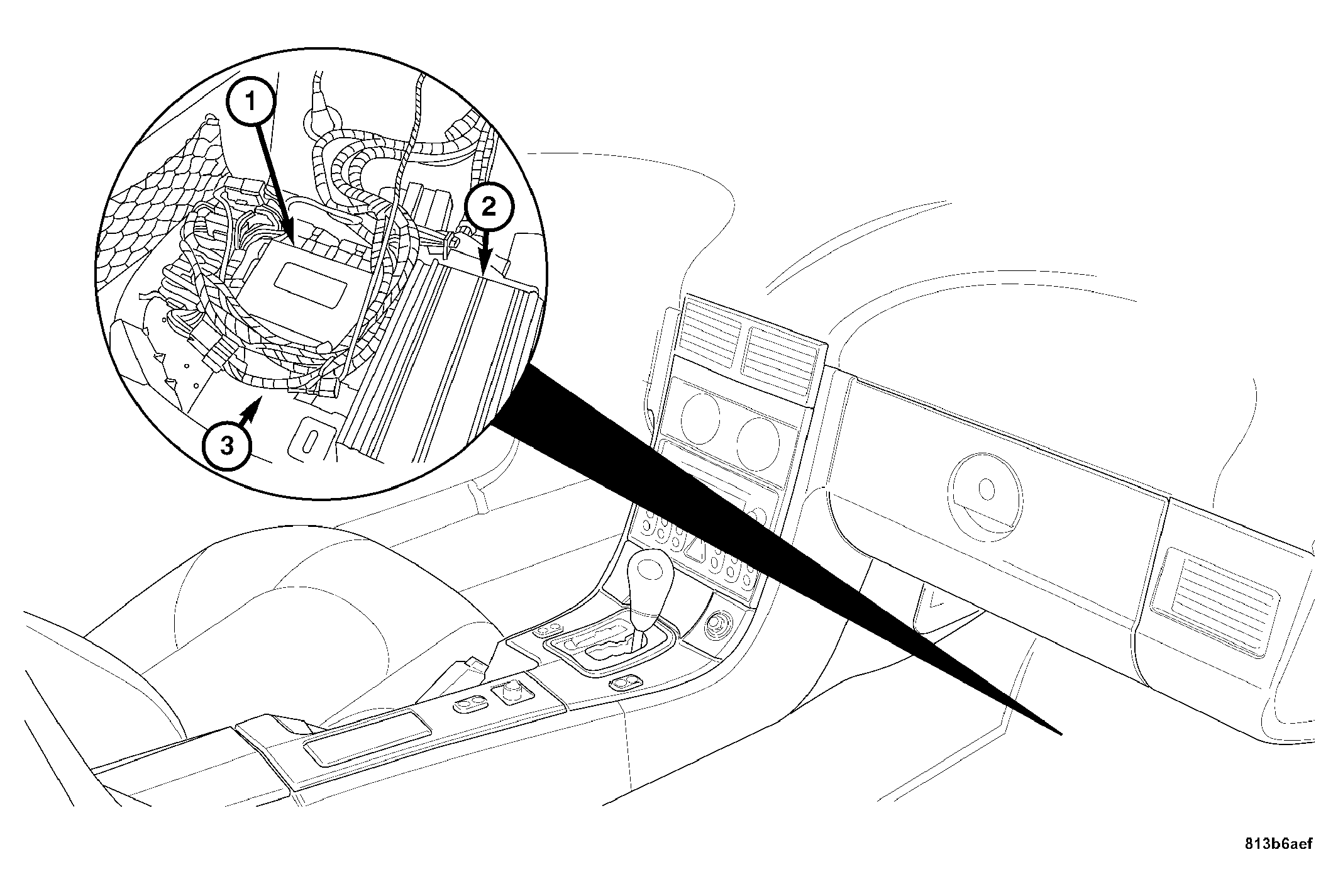

Fig 1: Locating Transmission Control Module

Courtesy of DAIMLERCHRYSLER CORP.

The Transmission Control Module (1) is located in the interior passenger compartment on the passenger side. It is mounted behind a base plate (3) in the passenger side footwell next to the Radio Amplifier (2). The carpet must be pulled pack and the base plate unfastened and flipped down in order to access the Transmission Control Module.
