Transmission Control Module: Installation

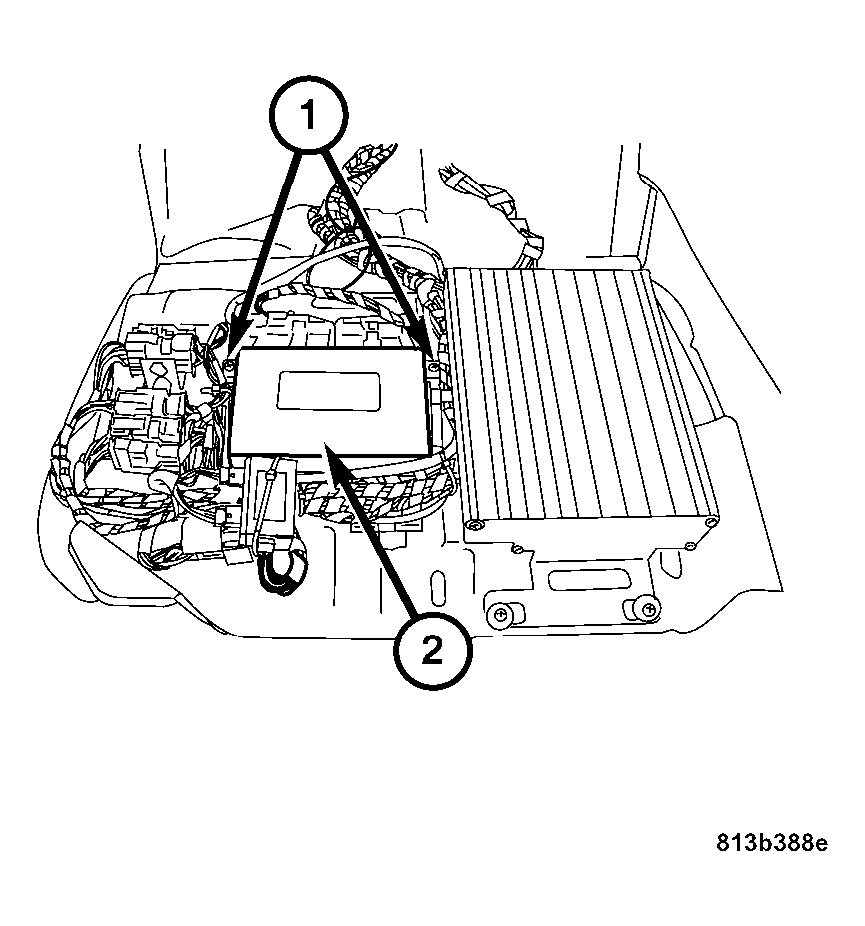

Fig 1: Removing/Installing TCM
GC0034993Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the TCM harness connectors and attach the TCM (2) to the base plate with the two retaining screws (1).
    Fig 2: Identifying Retaining Nuts
    GC0034836Courtesy of DAIMLERCHRYSLER CORP.
  2. Rotate the base plate and install it over the mounting studs on the floor panel.
    NOTE: Be sure not to pinch or cause interference with the wiring harnesses while locating the base plate to the floor mounting studs.
  3. Install the three plastic retaining nuts (1) and secure the base plate to the vehicle floor.
    Fig 3: Removing/Installing Foam Insulating Panel
    GC0034838Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the foam insulation panel.
    NOTE: Make sure the aligning tabs of the base plate are positioned correctly in the foam insulating panel.
  5. Install the carpeting in the passenger footwell.
  6. Install the floor mat to the carpet.
    7. Fig 4: Removing/Installing TCM
    GC0034993Courtesy of DAIMLERCHRYSLER CORP.
  7. Connect the TCM harness connectors and attach the TCM to the base plate with the two retaining screws (1).
    Fig 5: Identifying Retaining Nuts
    GC0034836Courtesy of DAIMLERCHRYSLER CORP.
  8. Rotate the base plate and install it over the mounting studs on the floor panel.
    NOTE: Be sure not to pinch or cause interference with the wiring harnesses while locating the base plate to the floor mounting studs.
  9. Install the three plastic retaining nuts (1) and secure the base plate to the vehicle floor.

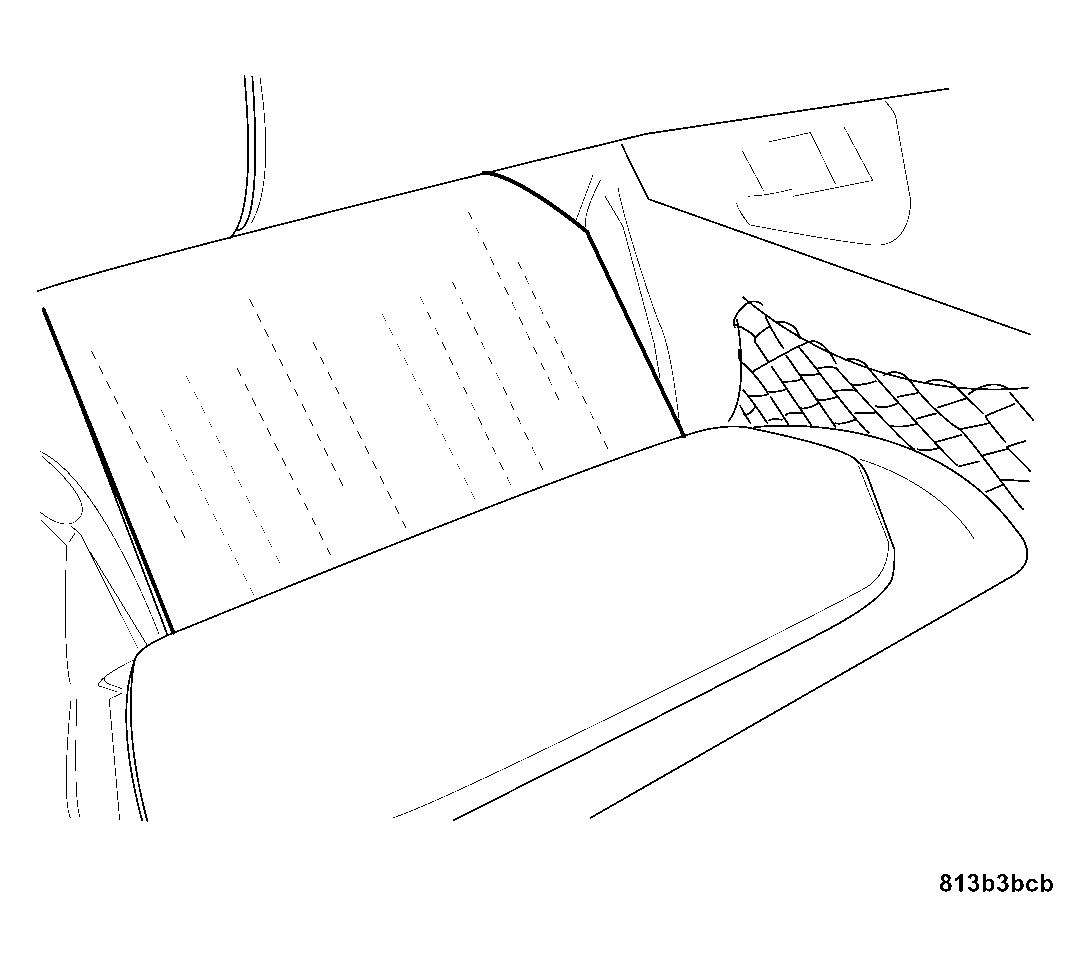

    Fig 6: Removing/Installing Foam Insulation Panel
    GC0034995Courtesy of DAIMLERCHRYSLER CORP.
  10. Install the foam insulation panel.
    NOTE: Make sure the aligning tabs of the base plate are positioned correctly in the foam insulating panel.
  11. Install the carpeting in the passenger footwell.
  12. Install the floor mat to the carpet.
