Wiper Module: Installation

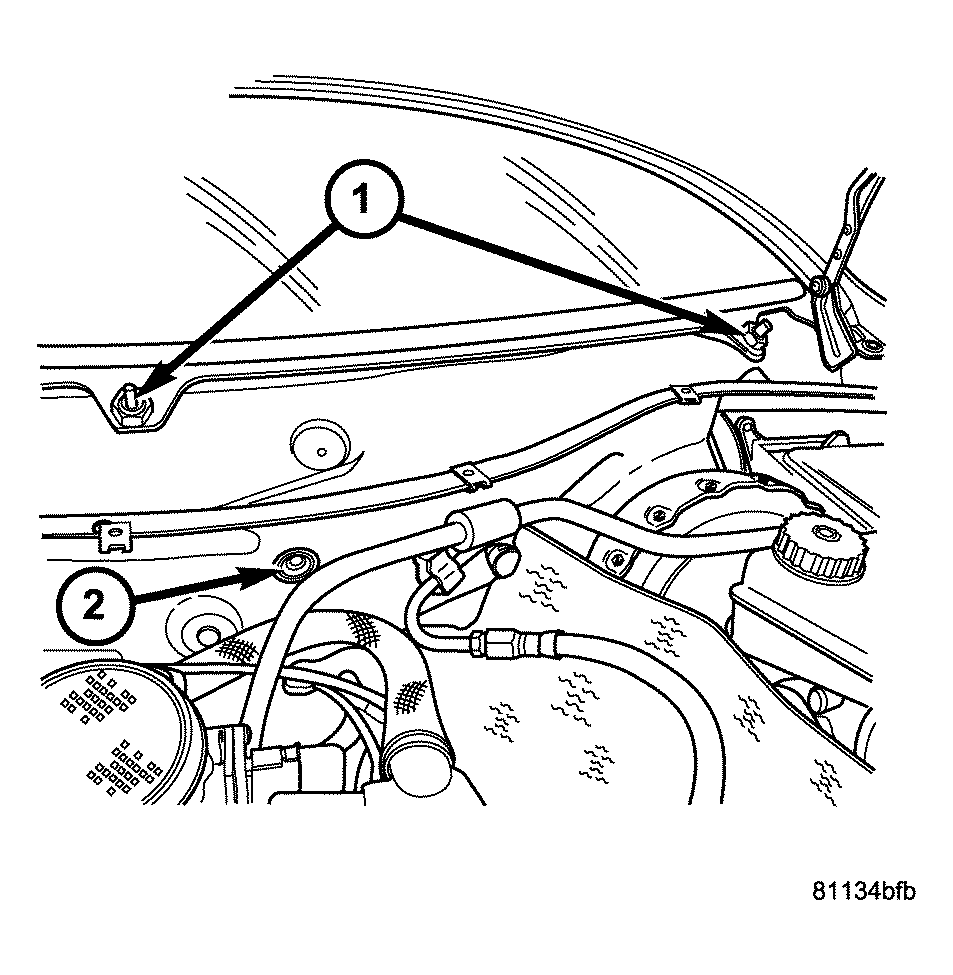

Fig 1: Installing Wiper Module

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: During installation, do not allow the wiper module to contact the windshield.

Align the wiper module into the cowl over the two upper attachment nut mounting studs (1).
Install the two wiper module upper attachment nuts and secure.
Install the lower wiper module attachment bolt through the hole (2) in the cowl and secure.

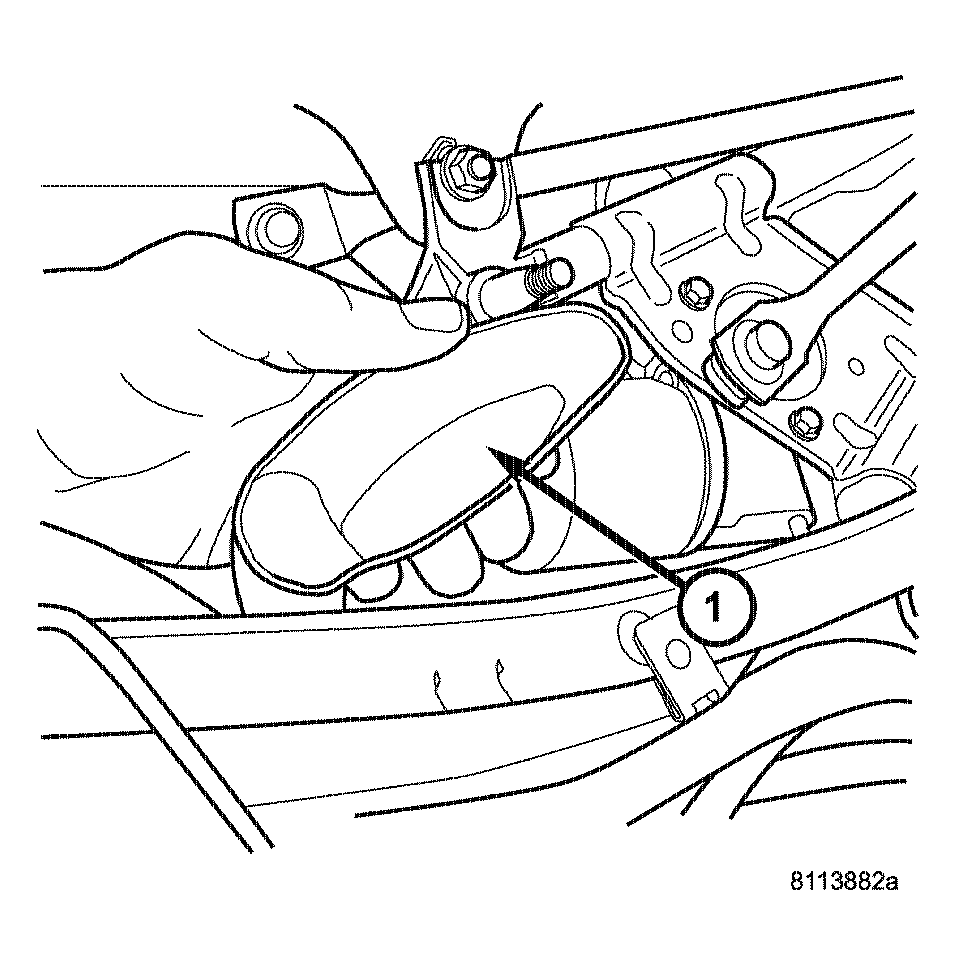

Fig 2: Identifying Cowl Grille Drain
Courtesy of DAIMLERCHRYSLER CORP.
Install the cowl grille drain (1) into the cowl and rotate clockwise to secure. Insure the grommet is seated fully.

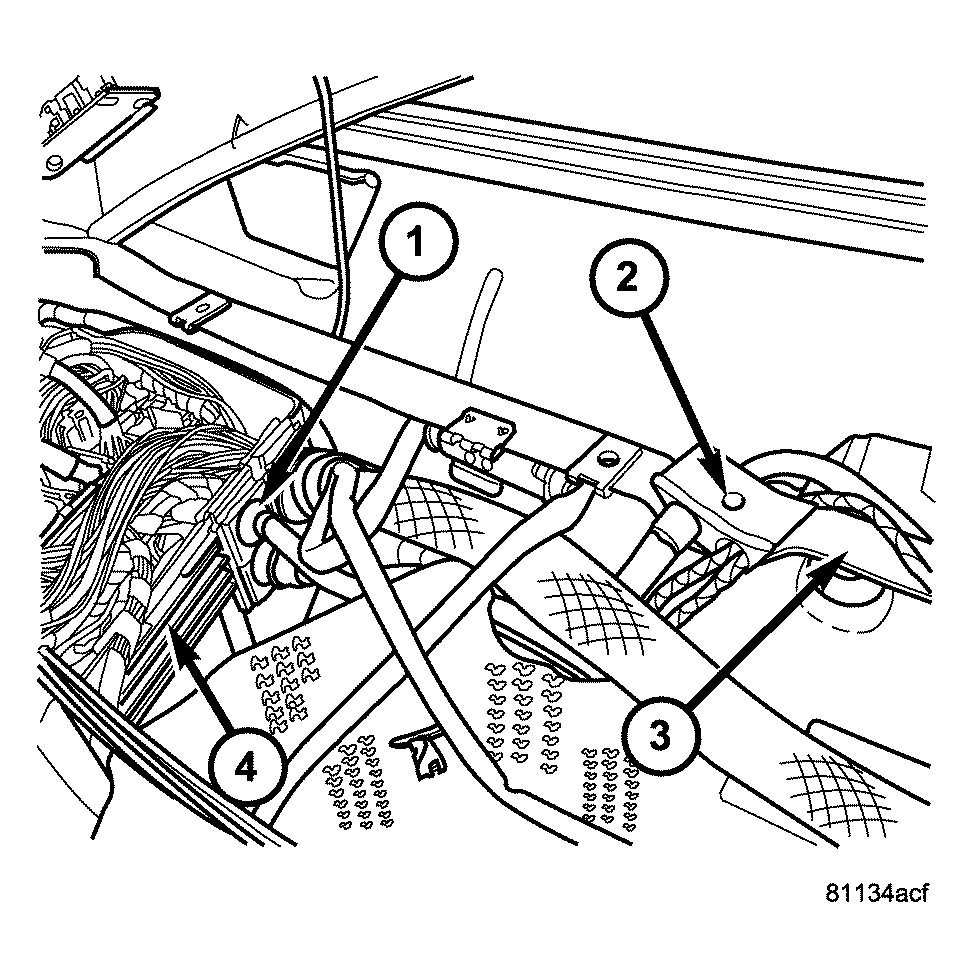

Fig 3: Identifying Wiper Motor Harness Rubber Grommets, Cowl Ledge & Control Module Box
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Insure that the wiper motor harness and its rubber grommets are seated and routed properly to avoid interference with moving parts.
Install the wiper motor harness and rubber grommet (2) into the cowl ledge (3).
Install the wiper motor harness and rubber grommet (1) into the control module box (4).

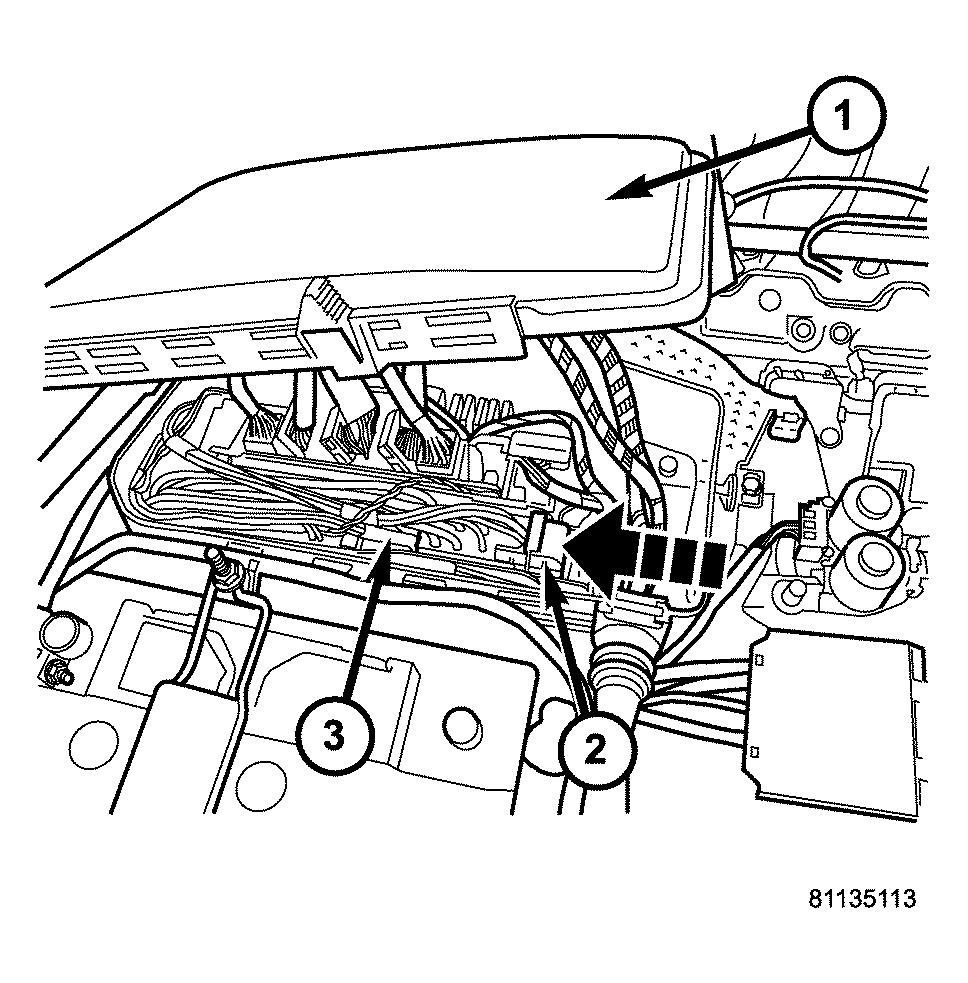

Fig 4: Identifying Control Module Box Cover, Wiper Motor Harness Connector & BCM
Courtesy of DAIMLERCHRYSLER CORP.
Connect the wiper motor harness connector (2) to the Body Control Module (BCM) (3) and slide the locking tab fully over the connector (2).
Install the control module box cover (1).
Install the cowl grille. (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .
Install the wiper arms. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION) .
Connect the negative battery cable.
