Wiper Module: Removal

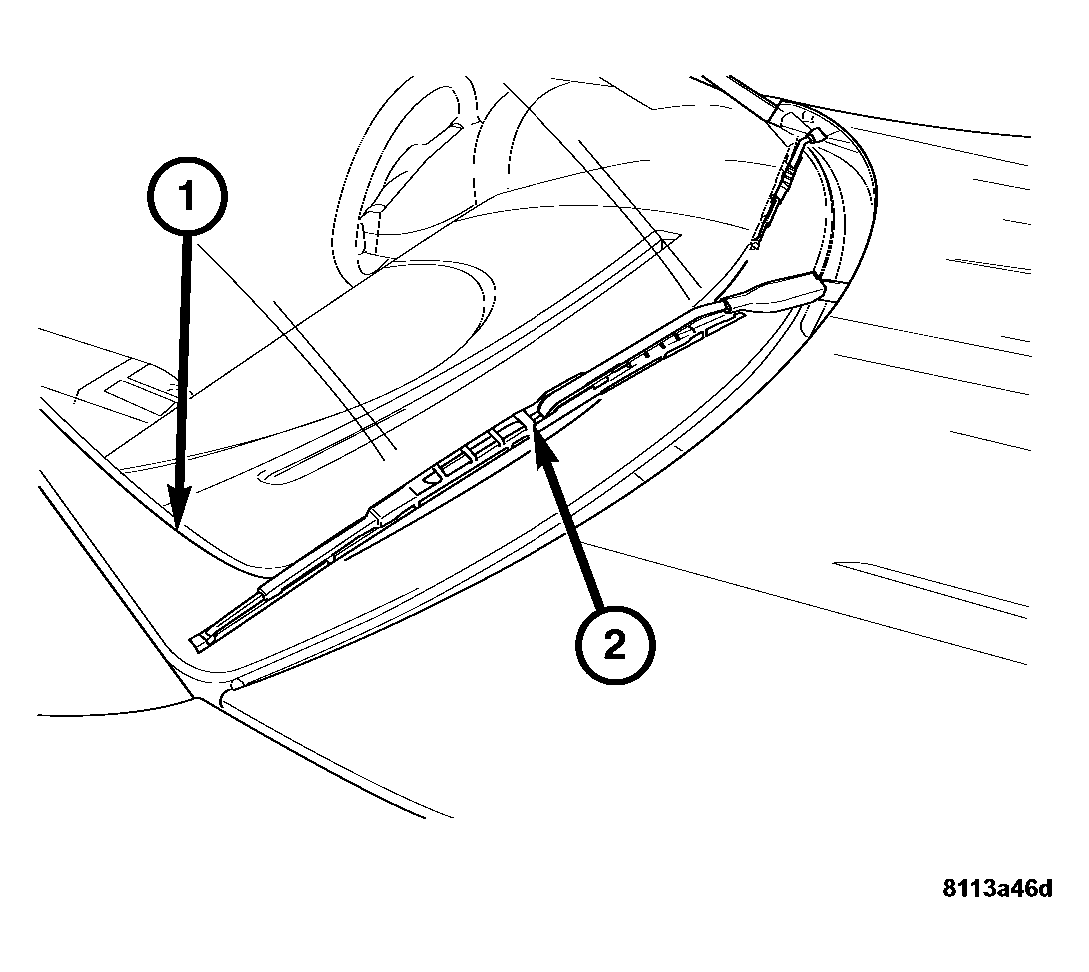

Fig 1: Aligning Wiper Arm

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: If possible, cycle the Wiper System to position the wiper arms and linkage in the park position before removal is attempted.

Disconnect the negative battery cable.
Remove the wiper arms. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL) .
Remove the cowl grille. (Refer to BODY/EXTERIOR/COWL GRILLE - REMOVAL) .

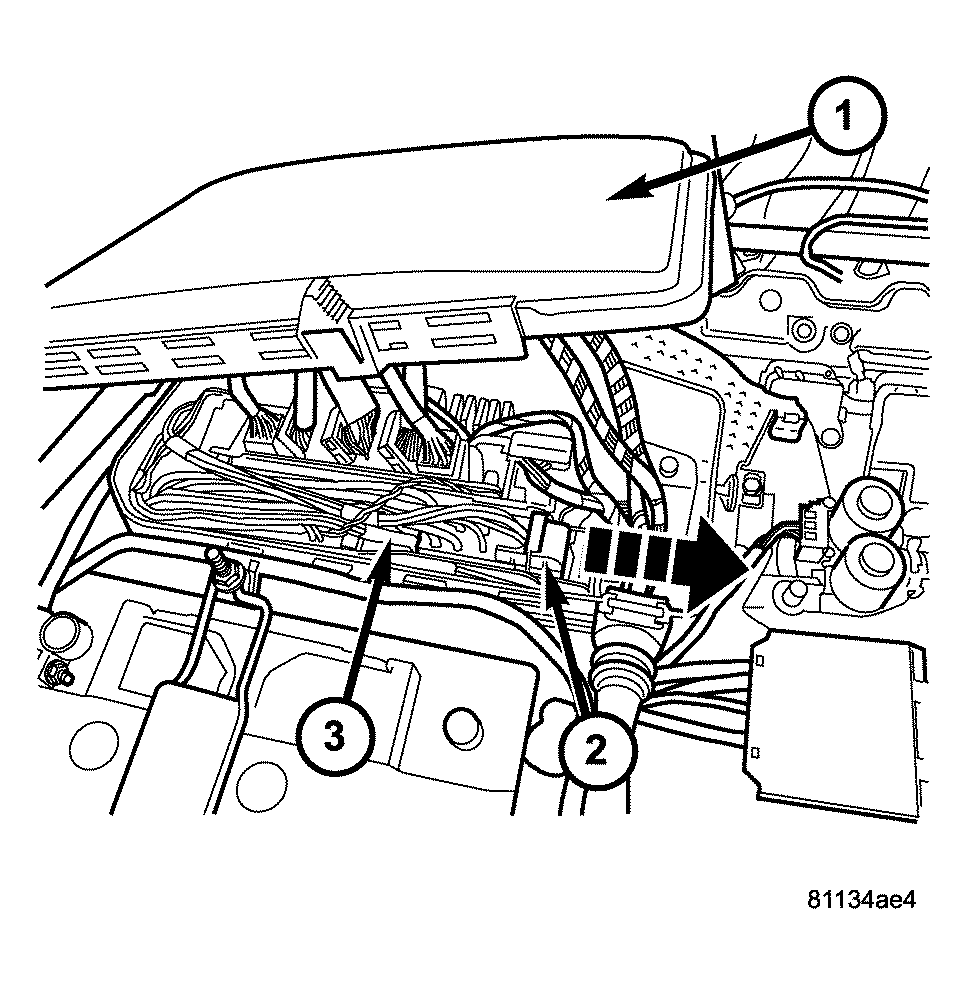

Fig 2: Identifying Control Module Box Cover, Wiper Motor Harness Connector & BCM
Courtesy of DAIMLERCHRYSLER CORP.
Remove the control module box cover (1).
Unlock and disconnect the wiper motor harness connector (2) from the Body Control Module (BCM) (3).

Fig 3: Identifying Wiper Motor Harness Rubber Grommets, Cowl Ledge & Control Module Box
Courtesy of DAIMLERCHRYSLER CORP.
Remove the wiper motor harness rubber grommet (1) from the control module box (4).
Remove the wiper motor harness rubber grommet (2) from the cowl ledge (3).

Fig 4: Identifying Cowl Grille Drain
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the cowl grille drain (1) counterclockwise, then lift upward and remove from the cowl.

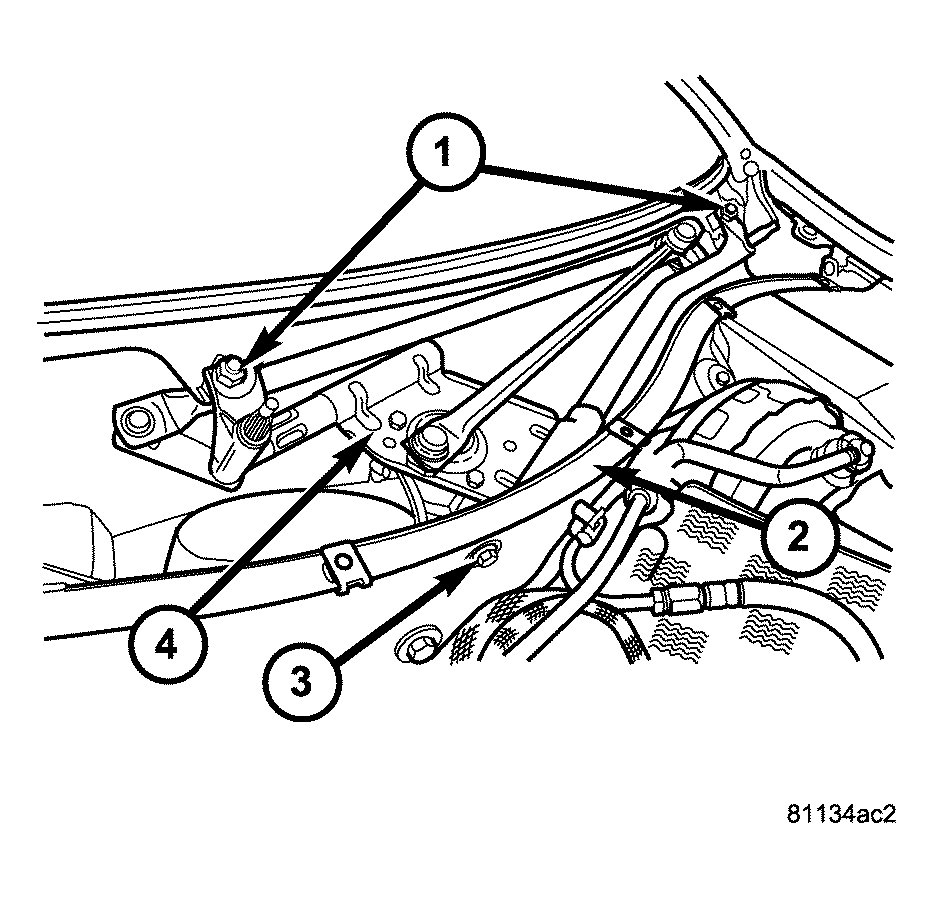

Fig 5: Removing/Installing Wiper Module
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower wiper module attachment bolt (3) under the cowl ledge (2).
Remove the two upper wiper module attachment nuts (1).
CAUTION: Do not allow the wiper module to contact the windshield.
Remove the wiper module (4) from the vehicle.
