*Washers Inoperative: Notes

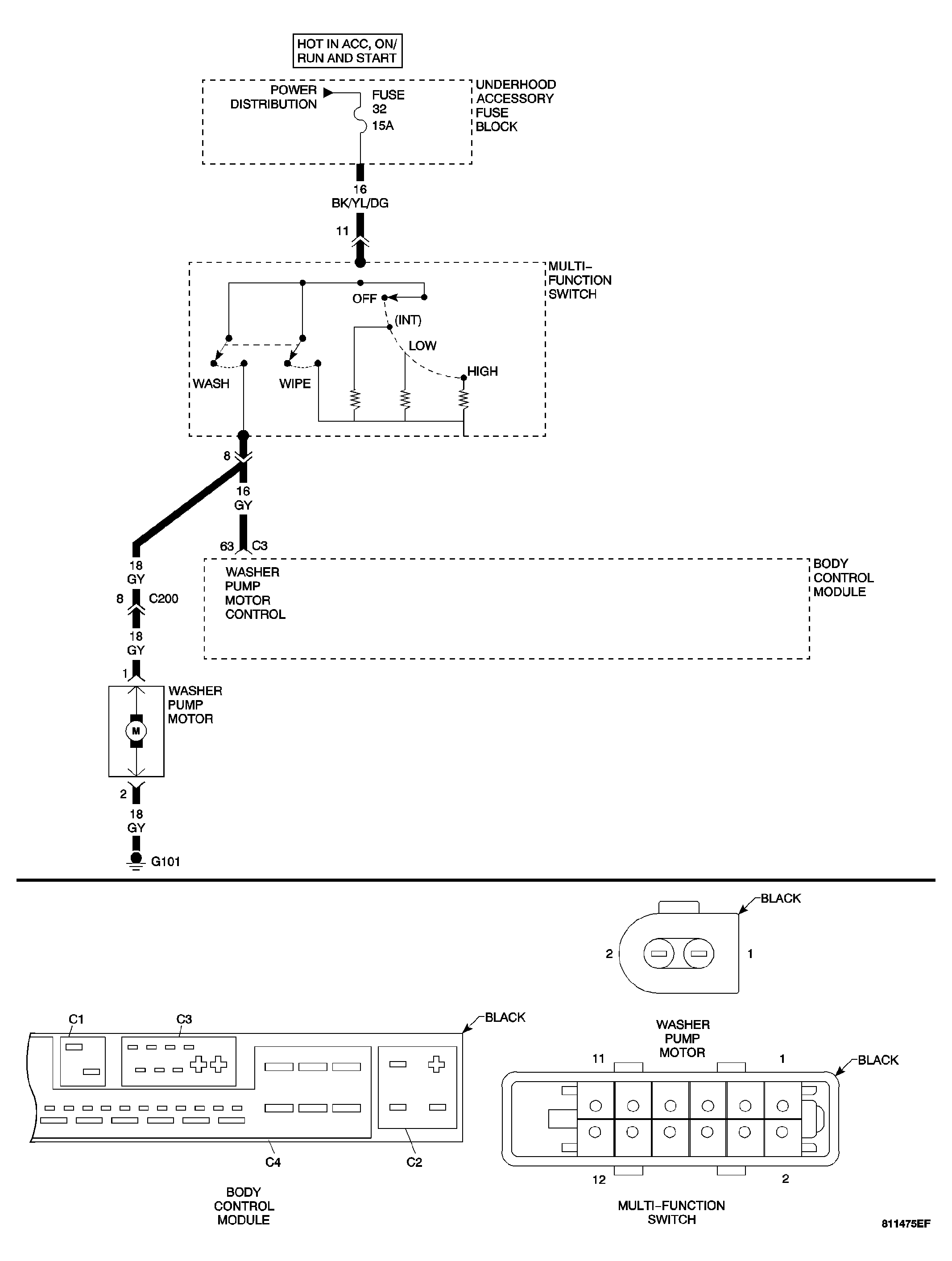

Fig 1: Washer Circuit Schematic
GC0035776Courtesy of DAIMLERCHRYSLER CORP.
POSSIBLE CAUSES
MULTI-FUNCTION SWITCH
WASHER PUMP MOTOR CONTROL CIRCUIT OPEN
WASHER PUMP MOTOR GROUND CIRCUIT OPEN
WASHER PUMP MOTOR

For a complete Wipers/Washers Circuit Diagram, (Refer to ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND DIAGRAMS) .
