*Washers Run Continuously With Ignition On: Notes

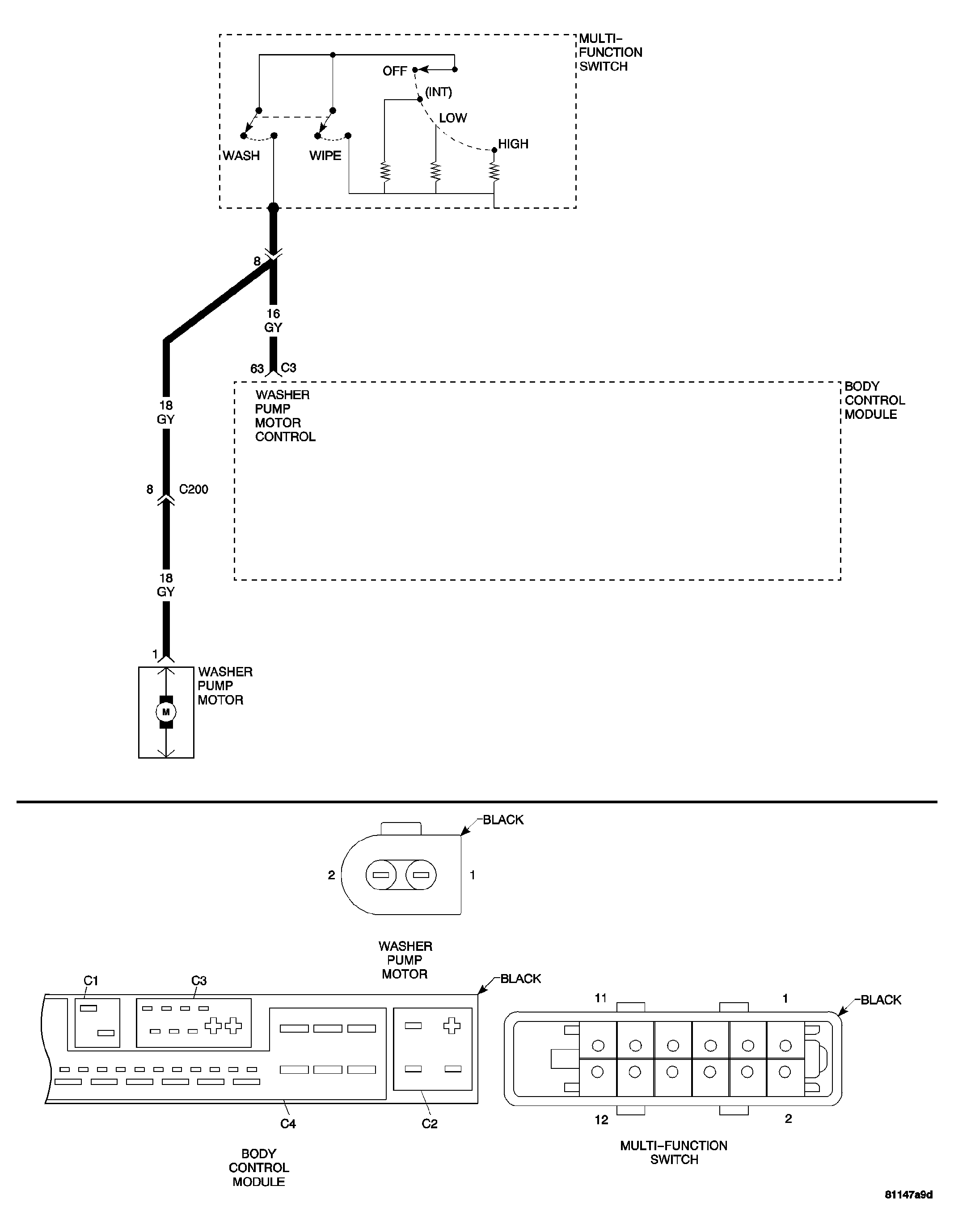

Fig 1: Washer Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

POSSIBLE CAUSES
MULTI-FUNCTION SWITCH
WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE
BODY CONTROL MODULE

For a complete Wipers/Washers Circuit Diagram, (Refer to ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND DIAGRAMS) .
