DTC 9003, 9004: Power Top Control Module EEPROM Error: Notes

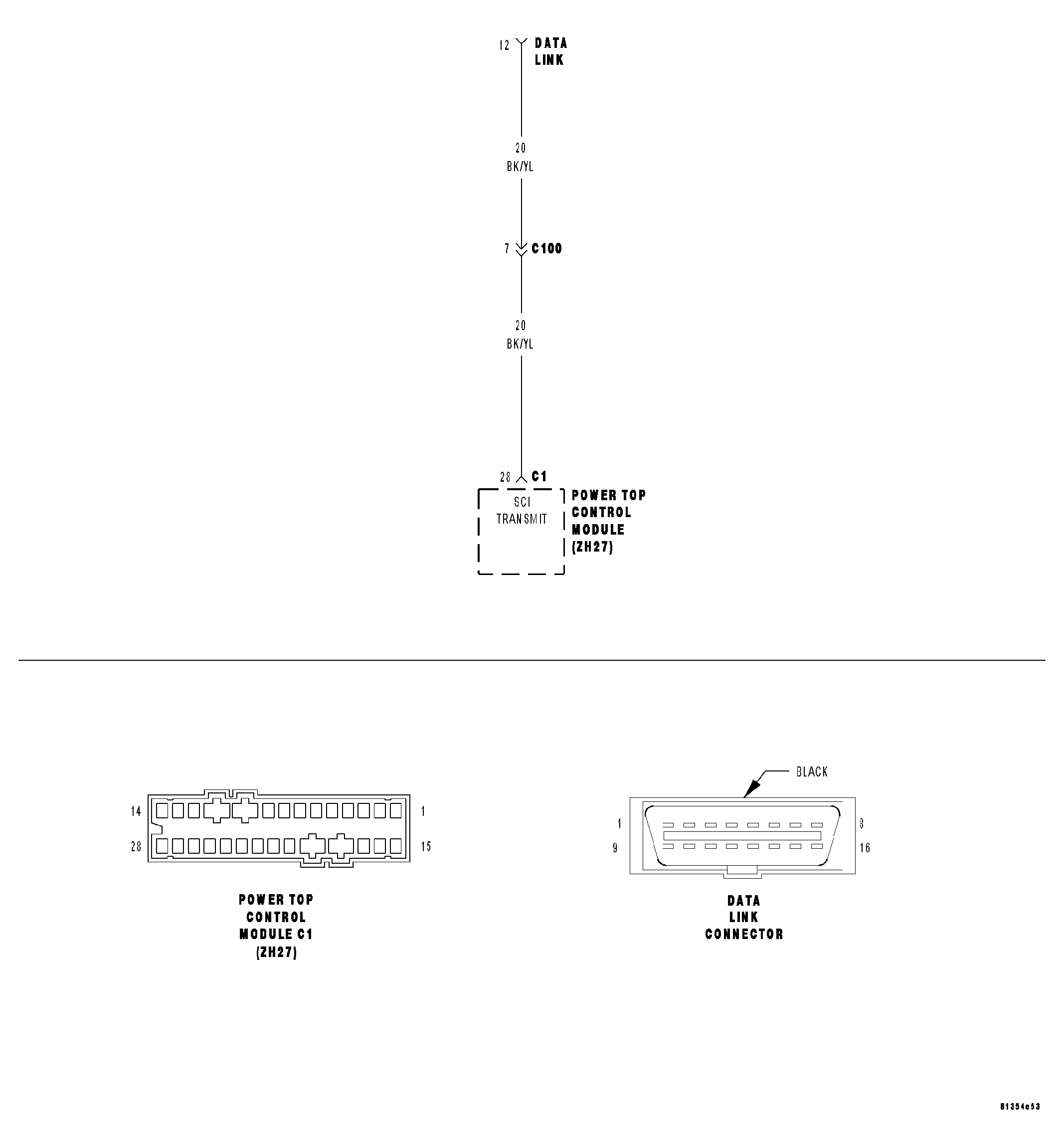

Fig 1: Power Top Control Module Communication Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

1. When Monitored: Continuous with the ignition on.
2. Set Condition: An attempt to program/write to the internal EEPROM failed.

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
