DTC 1350: Yaw Rate/Acceleration Sensor: Hardware Error: Notes

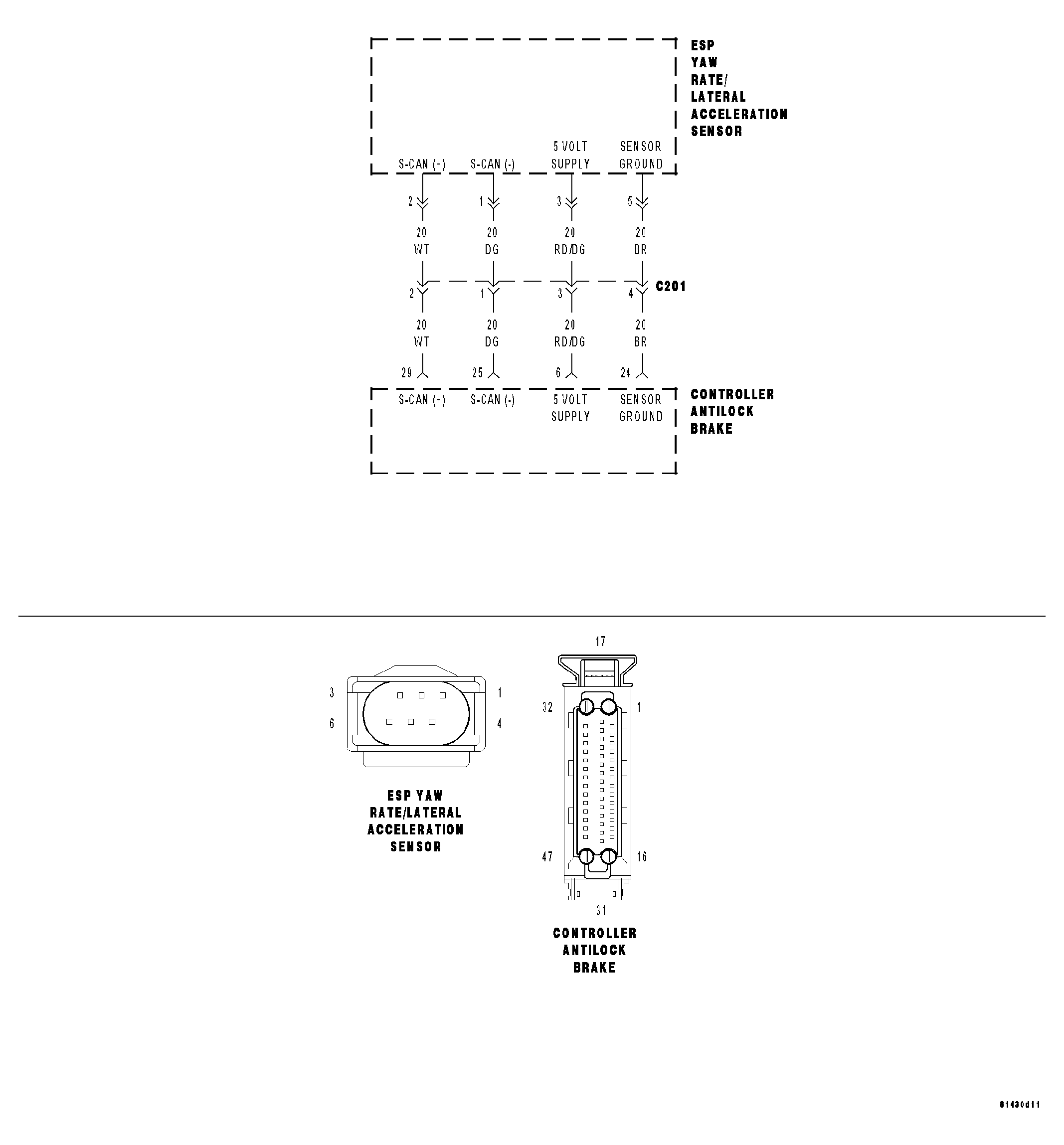

Fig 1: Yaw Rate/Acceleration Sensor Circuit Schematic
GC0033817Courtesy of DAIMLERCHRYSLER CORP.
