A/C Heater Control Module: Installation

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. CONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

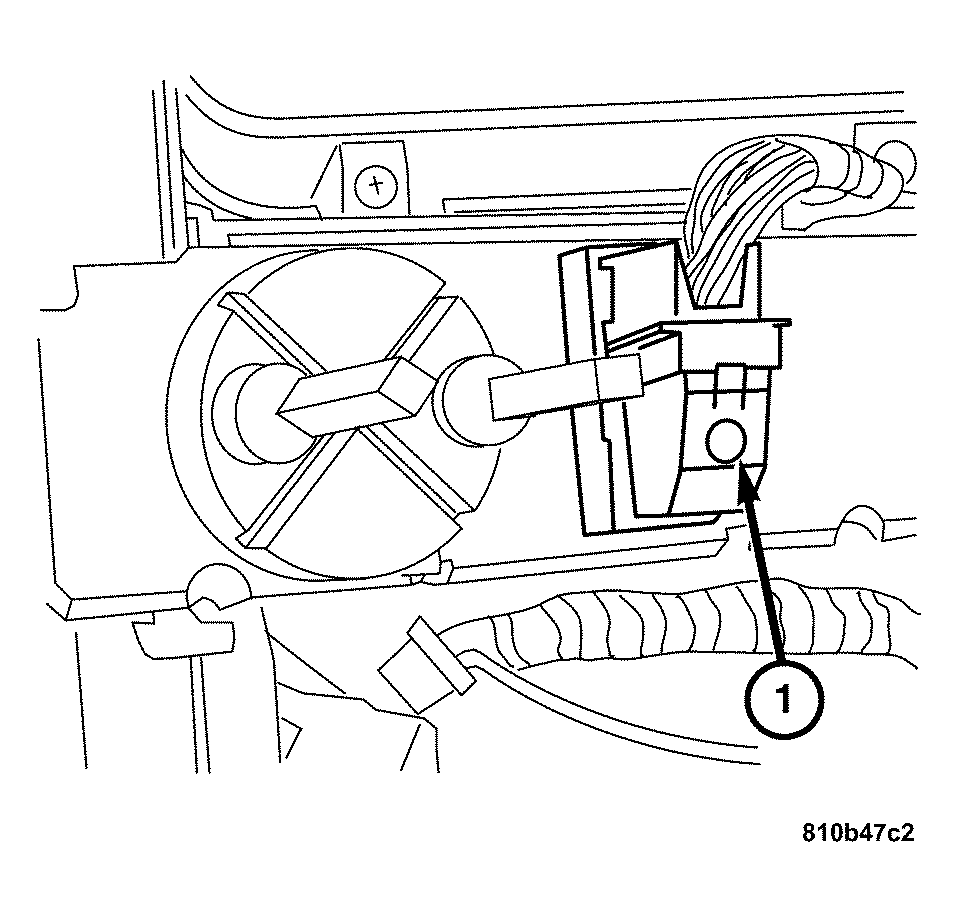

Fig 1: Disconnecting/Connecting A/C Heater Control Module Electrical Connector
GC0033540Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the electrical connector (1) by swinging the retaining bow up.

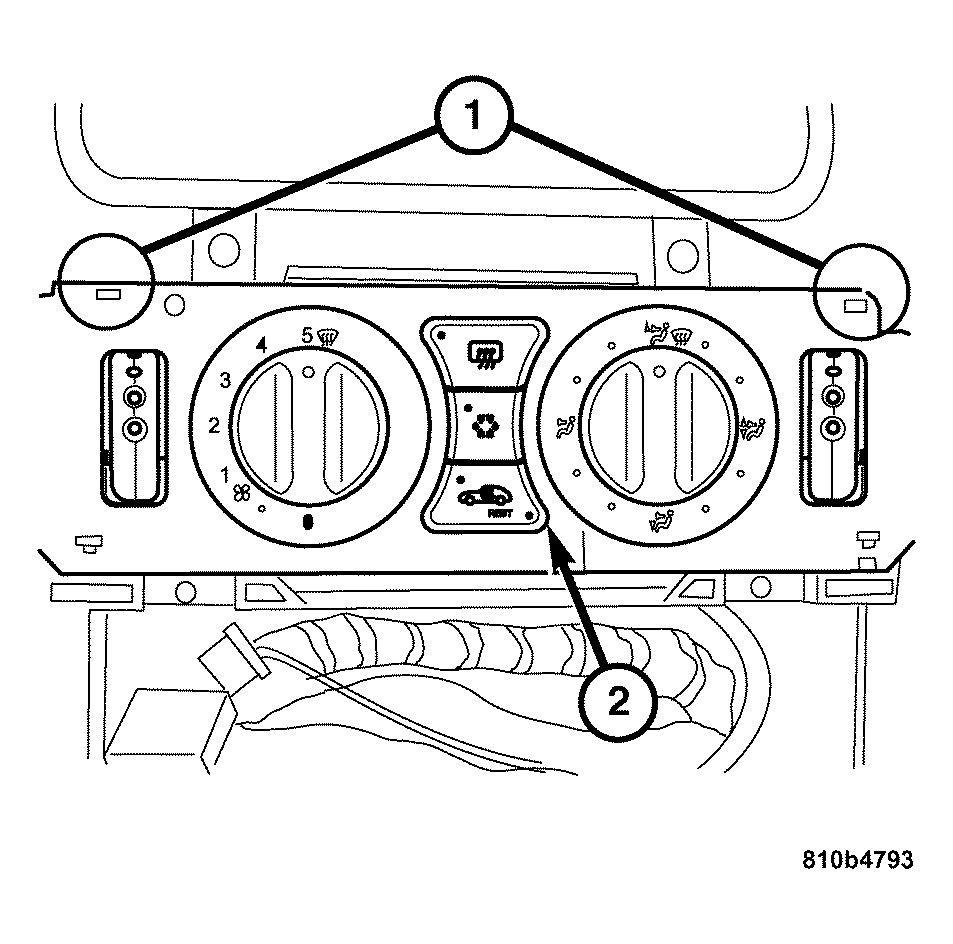

    Fig 2: Identifying A/C Heater Control Module
    GC0033302Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the A/C heater control module (2) by pressing in the catch lugs (1) at the sides.

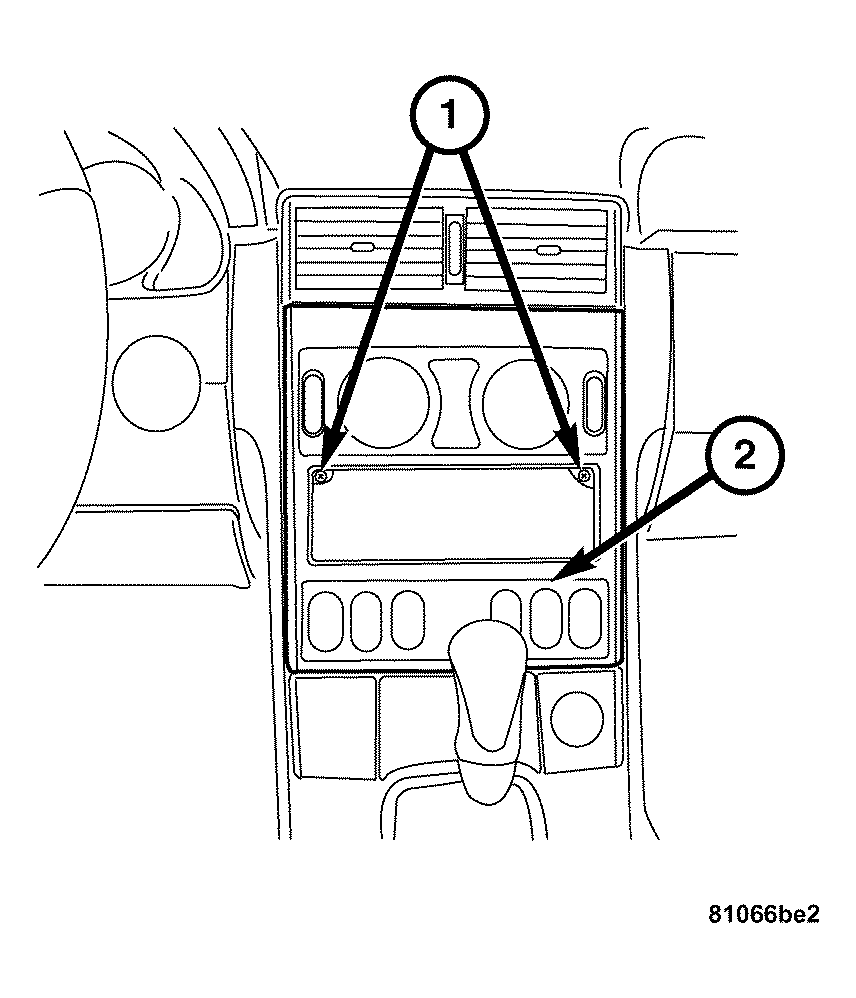

    Fig 3: Identifying Radio Screws & Cover
    GC0033306Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the center console panel screws (1-2). (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
  4. Install the radio. (Refer to ELECTRICAL/AUDIO/RADIO - INSTALLATION) .
  5. Connect the negative battery cable.
