Body Control Module Connector End View (C1)

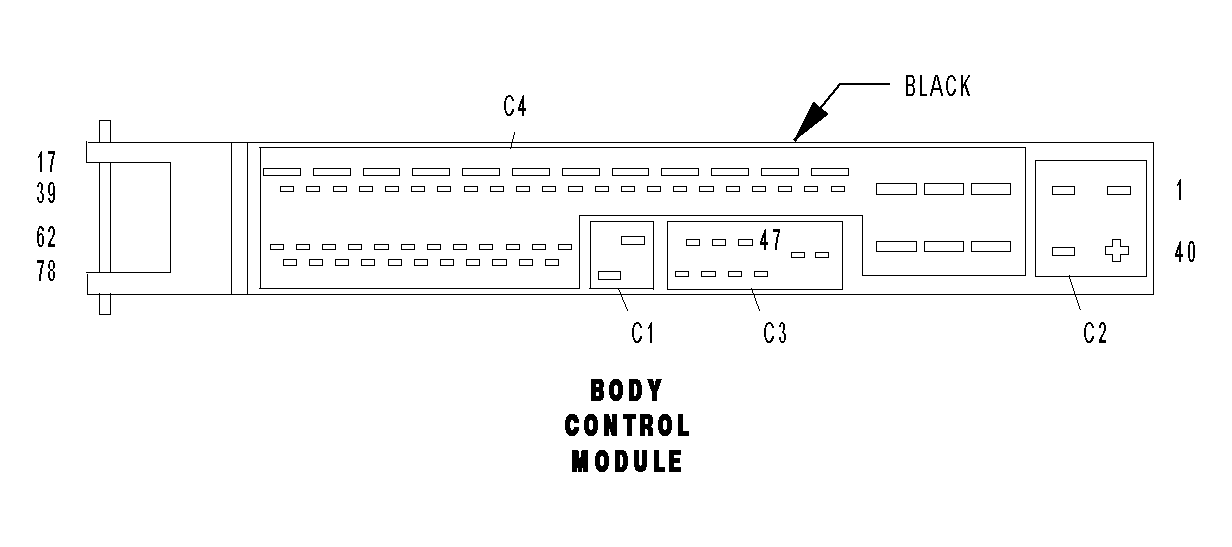

BODY CONTROL MODULE C1 - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
50
20RD
12 VOLT SUPPLY
67
20BR
CONTROL MODULE COOLING FAN CONTROL
Courtesy of DAIMLERCHRYSLER CORP.
