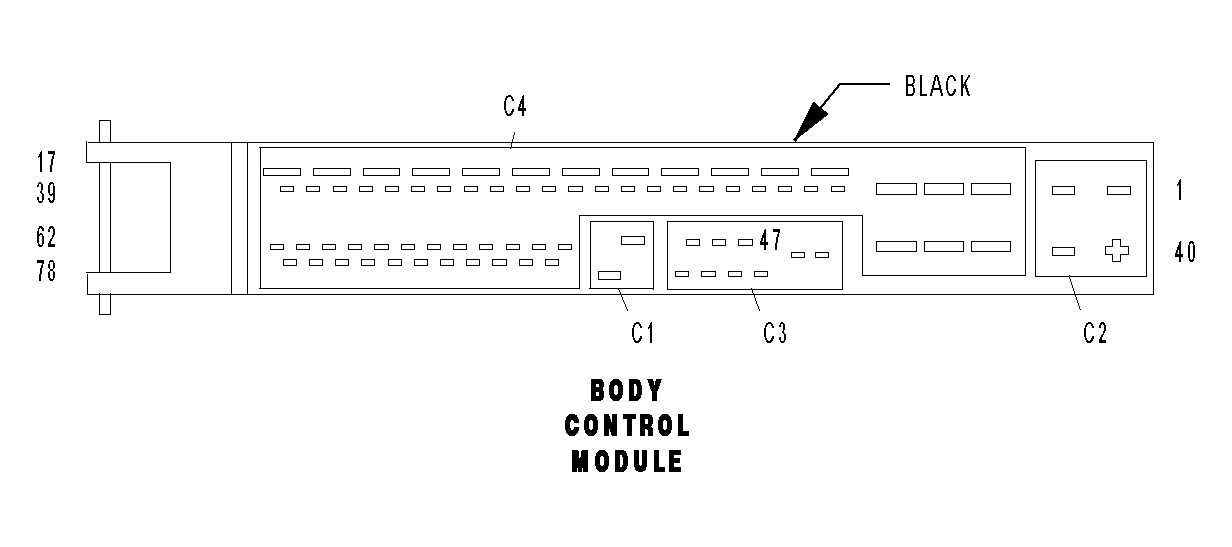

Body Control Module Connector End View (C2)
BODY CONTROL MODULE C2 - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14RD |
WIPER LOW SPEED CONTROL |
| 2 |
14DG |
WIPER HIGH SPEED CONTROL |
| 40 |
14WT |
WIPER PARK SWITCH SENSE |
| 41 |
14BK |
12 VOLT SUPPLY |
