Powertrain Control Module Connector End View (C5)

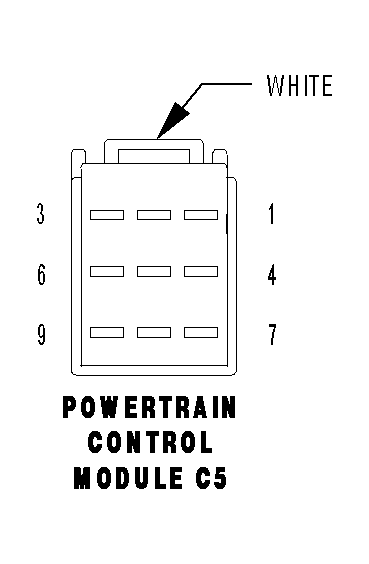

POWERTRAIN CONTROL MODULE C5 - WHITE 9 WAY

GCZH580193Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 18BR/DG OXYGEN SENSOR 2/2 HEATER CONTROL
2 18BR/RD EVAP PURGE SOLENOID CONTROL
3 18BK/DG FUSED B(+)
4 18BR/WT OXYGEN SENSOR 1/2 HEATER CONTROL
5 16BR GROUND
6 16BR GROUND
7 16BR GROUND
8 16BR GROUND
9 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
