Right Side Impact Sensor Signal Circuit: Notes

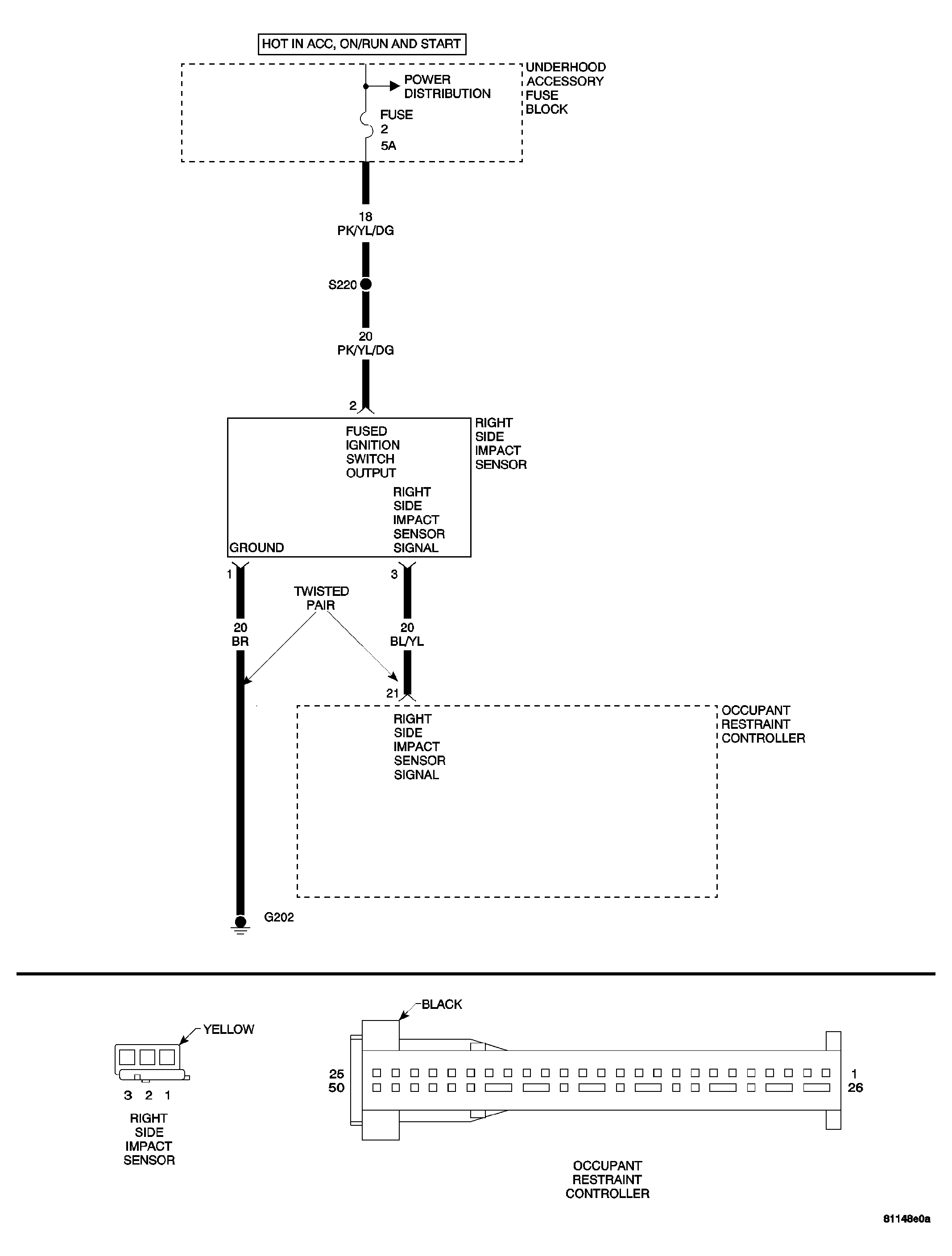

Fig 1: Right Side Impact Sensor Signal Circuit Diagram
GC0035658Courtesy of DAIMLERCHRYSLER CORP.
