Installation - SRT

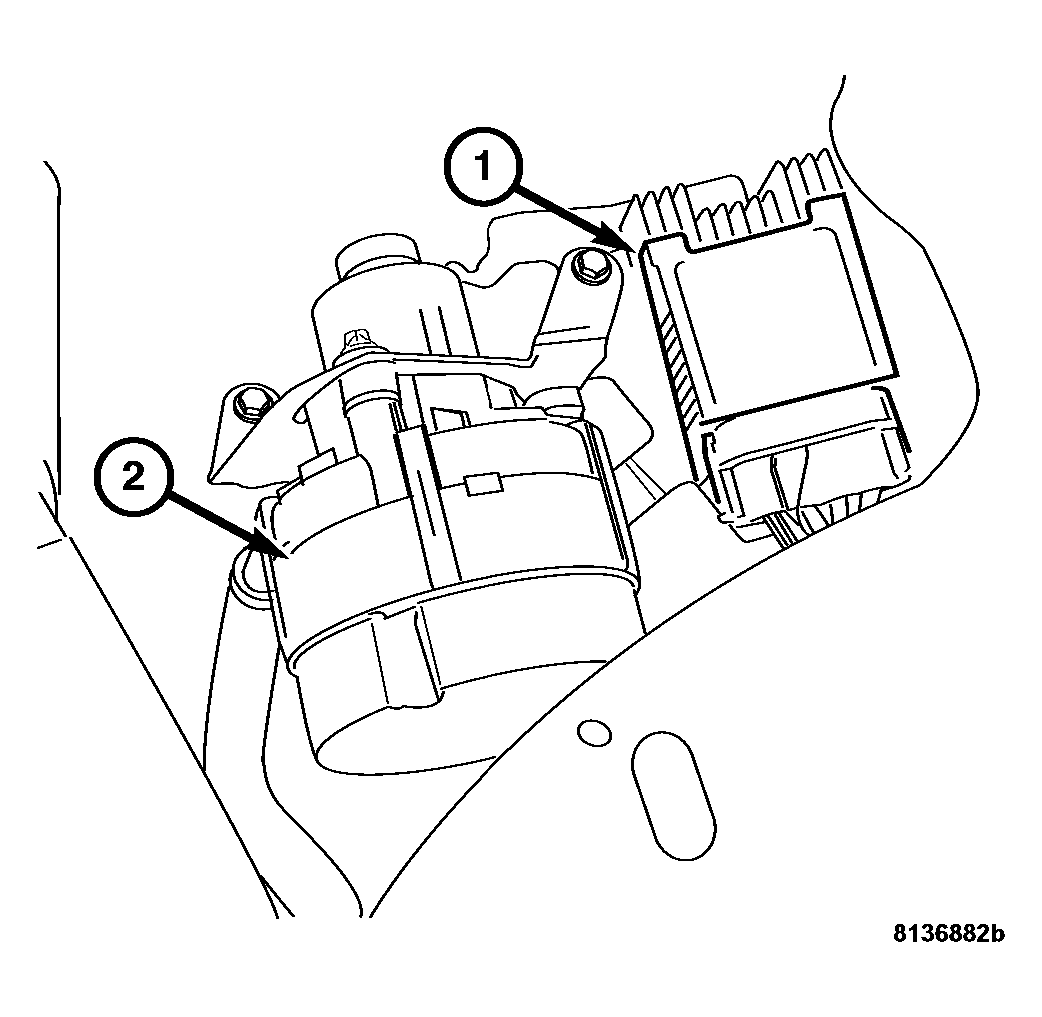

Fig 1: Removing/Installing Cooling Fan Module
GC0033982Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the radiator fan control module (1) on the inner fender well studs next to the air pump (2).
  2. Install the upper and lower retaining nuts. Tighten the nuts to 10 N.m (89 in. lbs.).
  3. Connect the radiator fan control module (1) harness connector.
  4. Connect the negative battery cable.
