Command Valve

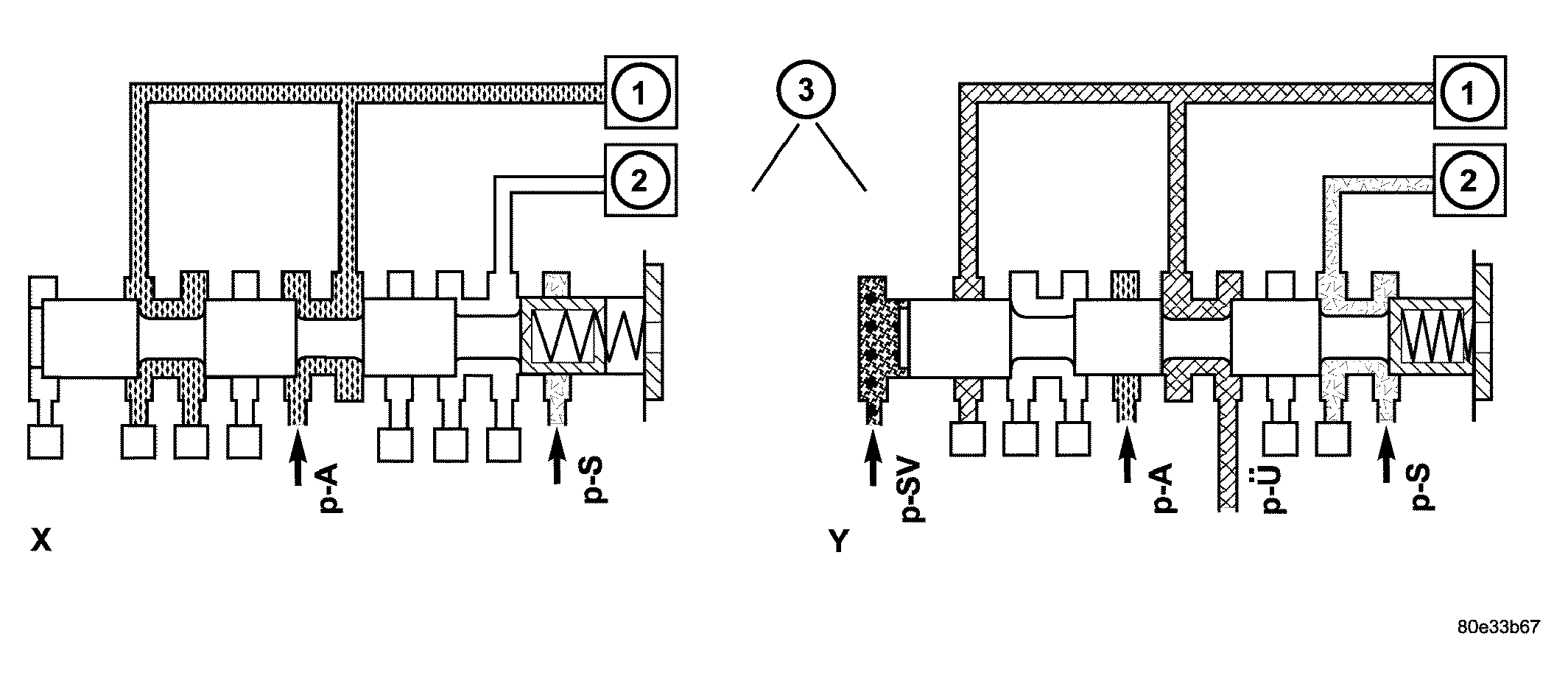

Fig 1: Command Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOLDING CLUTCH B1

2 - DRIVING CLUTCH K1

3 - 1-2/4-5 COMMAND VALVE

When the end face is unpressurized (stationary phase), the working pressure is directed to the actuated shift element. If the end face of the command valve is subjected to the shift valve pressure (p-SV) (shift phase), then the shift pressure is switched to the activating element and the overlap pressure is switched to the deactivating element.
