Front Wheel Speed Sensor: Installation
Courtesy of DAIMLERCHRYSLER CORP.

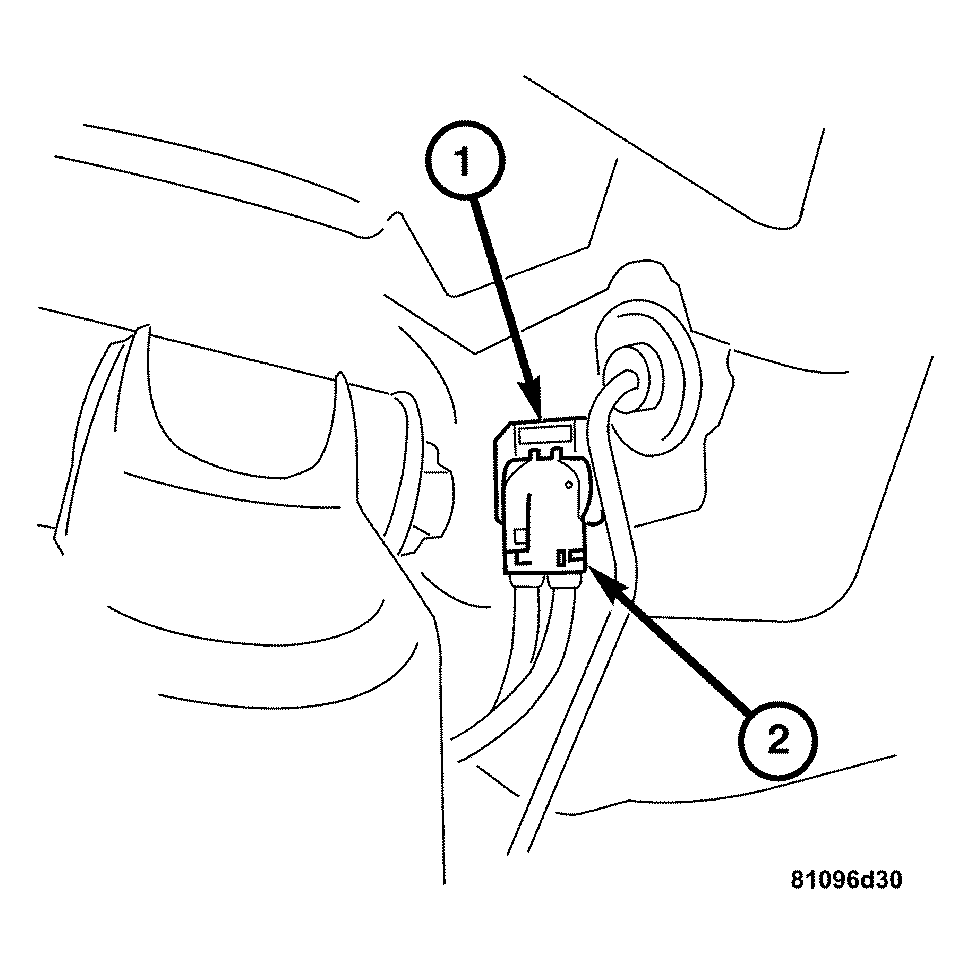

- Connect the wheel speed sensor / brake wear indicator wire harness connector (2) to the body mount connector (1).
Courtesy of DAIMLERCHRYSLER CORP.

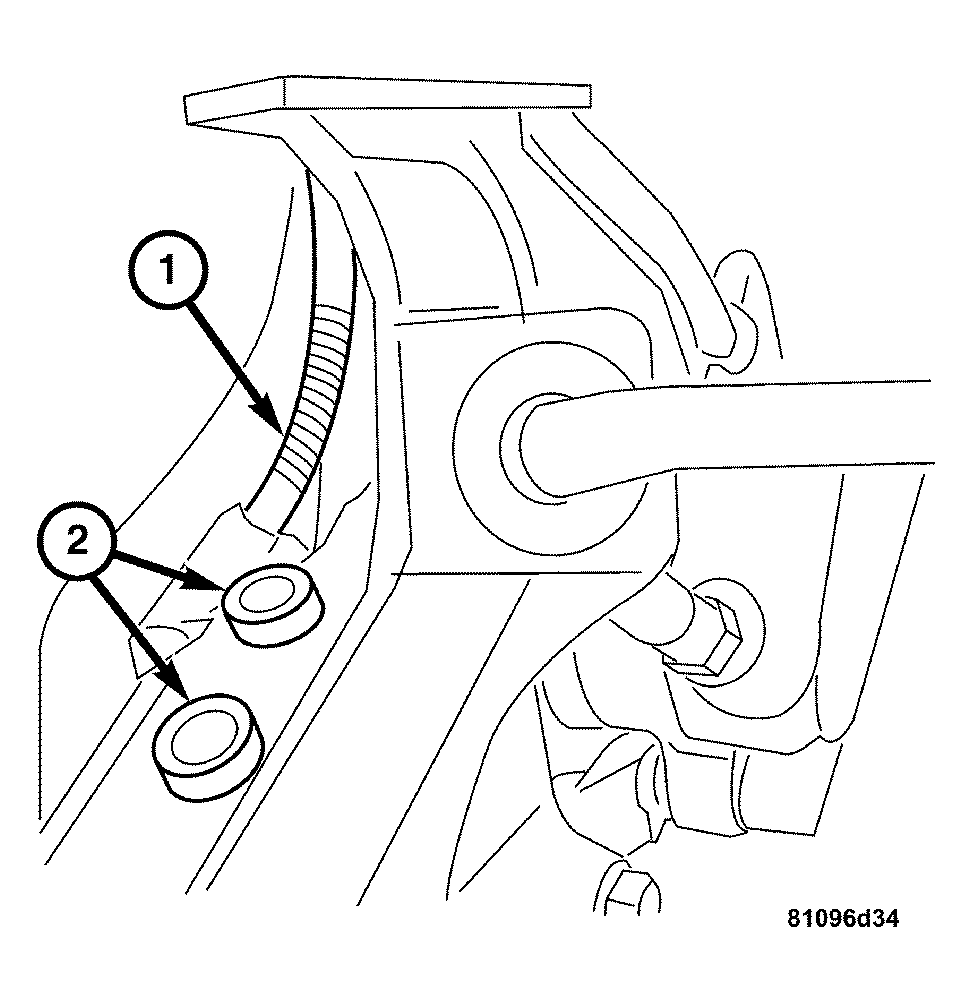

- Install the wheel speed sensor (1) to the steering knuckle.
- Install the bolts (2) attaching the flange to the steering knuckle. Tighten to 12 N.m (106 in. lbs.).
